Phased Array UAV Detection Radar System with Active Emission Capability
Ⅰ.Product Description

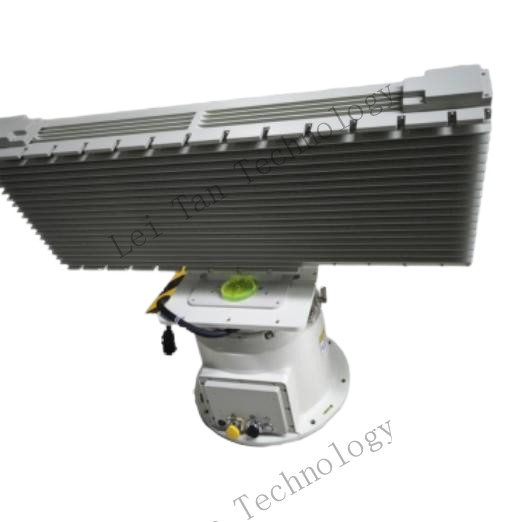

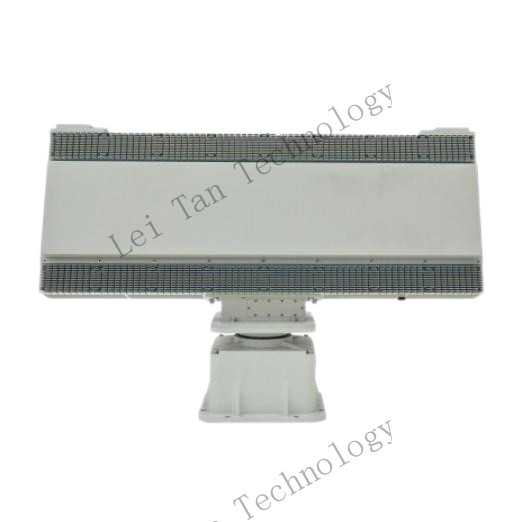

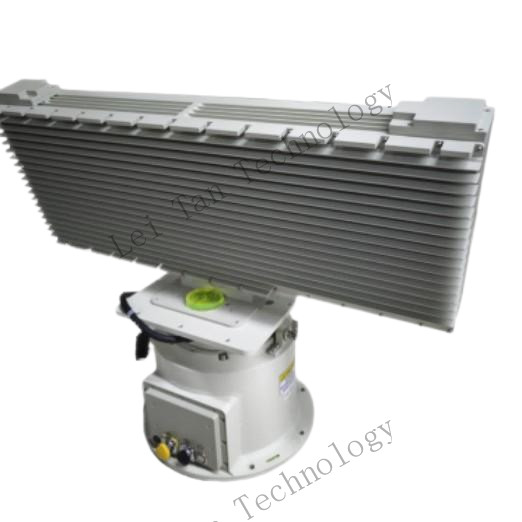

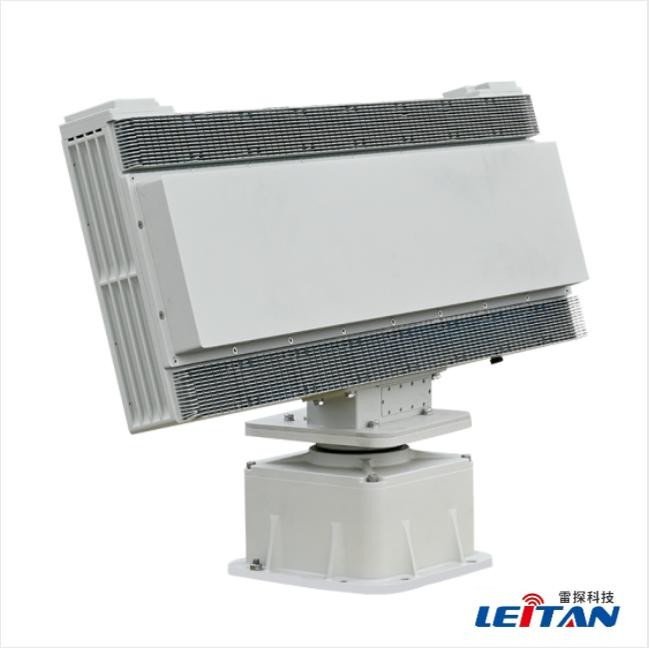

The Phased Array Counter-UAS Radar System is a sophisticated and advanced radar solution specifically designed for the detection, alerting, and target indication of micro and small civilian drones in critical areas such as borders, perimeters, airports, and military bases. This system is composed of a radar array, a mechanical turntable, and a power adapter. It is capable of providing accurate trajectory information of targets, including their azimuth, range, altitude, and velocity.
Ⅱ. Product Features
1 High Real-time and High Precision
The XW/SR226-6000X radar system is designed to maintain high-precision tracking of distant targets. This capability is crucial for border guards and security personnel who rely on accurate and real-time data to make effective judgments and take appropriate actions. The radar's high precision ensures that even small and fast-moving drones can be detected and tracked with minimal error, providing a reliable basis for security measures.
2 Strong Environmental Adaptability
One of the standout features of the radar is its ability to operate in a wide range of environmental conditions. The radar system is designed to work effectively in all weather conditions, including night, rain, snow, fog, and dust. This ensures that the radar remains functional and reliable regardless of the external environment, making it an ideal choice for critical security applications where continuous monitoring is essential.
3 High Flexibility
The radar system is designed for ease of deployment and operation. Its flexible design allows for easy setup in various locations, making it suitable for both permanent installations and temporary deployments. The ability to quickly and easily set up the radar system is particularly important in situations where rapid response is required, such as in border surveillance or emergency security operations.
4 DBF Technology
The radar incorporates Digital Beamforming (DBF) technology, which allows the radar to emit multiple beams simultaneously. This advanced technology significantly enhances the radar's anti-jamming capabilities, ensuring that it can maintain accurate detection and tracking even in the presence of electronic interference. DBF technology provides a robust and reliable solution for countering UAS threats in complex electromagnetic environments.
5 Phased Array System
The radar system employs an advanced active phased array system, which offers superior detection capabilities compared to traditional radar systems. The phased array technology allows for rapid and precise scanning of the airspace, enabling the radar to detect and track multiple targets simultaneously. This system not only enhances the detection range and accuracy but also provides three-dimensional coordinate information of the targets, making it easier for security personnel to assess and respond to potential threats.
6 High Cost-effectiveness
The radar system is designed to provide excellent value for money. Through continuous optimization and refinement, the system achieves a perfect balance between detection performance, reliability, usability, and cost. This high cost-effectiveness makes it an attractive option for a wide range of applications, from border security to airport surveillance, where reliable and efficient drone detection is crucial.
Ⅲ. Product Functions
|
Remote control
|
Supports remote on/off function
|
|
Positioning and orientation
|
Has positioning and orientation functions
|
|
Information output
|
Supports obtaining information such as the distance, speed, and angle of the detected object
|
|
Multi-target tracking
|
Supports multi-target tracking switching logic; can track all trajectories of multiple targets in real time
|
|
Target fusion processing function
|
Supports multi-sensor data fusion processing function
|
|
Defense zone management
|
Can flexibly set defense zones, accurately locate, and trigger intrusion alarms.
|
|
Anti-interference ability
|
Has online adjustment capabilities for detection sensitivity/speed range, and the ability to filter abnormal trajectory interference. Through sensitivity and abnormal trajectory filtering functions, it can effectively filter out false alarms caused by clutter
|
|
Online monitoring function
|
Has functions for monitoring working status and fault alarms; has equipment offline alarm function
|
|
Remote monitoring status
|
Has remote monitoring capabilities, can report equipment status in real time; has equipment online/offline alarm function
|
|
Online self-inspection function
|
The equipment has an online self-inspection function
|
|
Adaptive processing capability
|
Has moving target adaptive clutter processing capability and adaptive clutter map processing capability
|
|
Linkage function
|
Has radar pan-tilt linkage function, target tracking and capture for evidence (automatic tracking mode, radar tracking mode, image tracking mode)
|
|
Multi-site networking for blind spot filling
|
Has functions for networking of multiple devices; has capabilities for multi-site collaborative detection; has capabilities for blind spot filling in case of adjacent site failures
|
Ⅳ. Product Parameters
|
Working system
|
Active digital phased array (azimuth mechanical scanning + elevation electronic scanning)/pulse Doppler.
|
|
Working frequency band
|
X band
|
|
Effective detection range
|
100m～5.0km (drone RCS≥0.01㎡).
|
|
Azimuth coverage
|
360°
|
|
Elevation coverage
|
40°
|
|
Detection speed
|
1.8km/h～270km/h
|
|
Azimuth accuracy
|
≤0.5°(search)≤0.3°(tracking)
|
|
Elevation accuracy
|
≤1.0°(search)≤0.5°(tracking).
|
|
Range accuracy
|
≤10m
|
|
Data rate
|
≥0.2Hz.
|
|
Data interface
|
RJ45/1 100Mbps Ethernet
|
|
Power input
|
≤350W (power consumption) AC200-AC240 (input)
|
|
Working temperature
|
- 40℃～ + 55℃.
|
|
Weight
|
≤48kg (whole machine).
|
