High Precision Anti-interference Active Digital Phased Array Radar Not Affected By Weather
I. Product Description

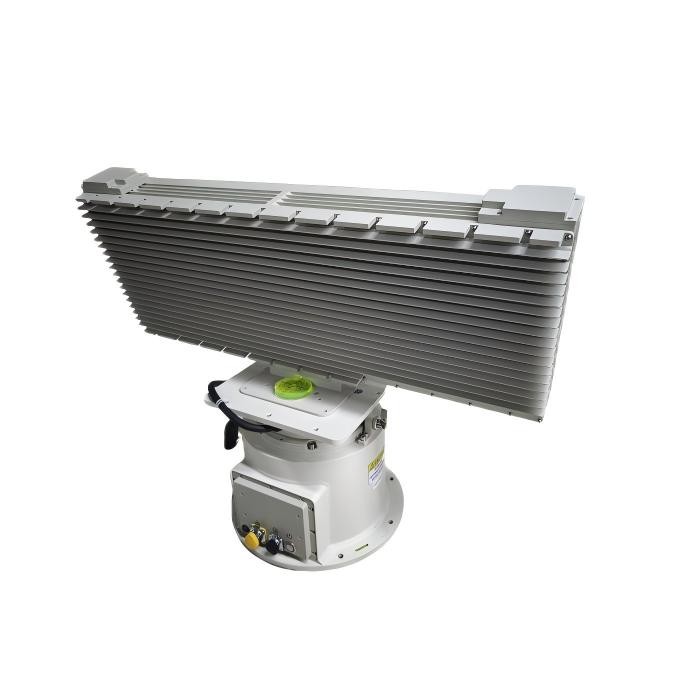

Comprising one radar array, one mechanical rotary platform, and one power adapter, this radar is designed for the detection, alerting, and target indication of micro/small civilian drones in key areas such as borders, perimeters, airports, and bases. It can accurately provide the target's azimuth, distance, altitude, and velocity information.
II. Features
1.High Real-time And High-precision
High precision tracking capability, to provide users with reliable target data, help make decisions quickly, improve security efficiency.
2. Strong Environmental Adaptability
Radar can also operate normally in bad weather, reducing the interruption of monitoring caused by weather and reducing safety risks.
3. High Flexibility
With long-distance detection and convenient erection features, it can quickly adapt to different application scenarios and reduce deployment costs and time.
4. High Cost-effectiveness
To improve the anti-interference capability, DBF technology ensures that the radar can work stably in complex environment, reduce false alarm and improve monitoring quality.
5. DBF technology
The advanced active phased array system not only improves the detection effect, but also can output more comprehensive target information, bringing higher monitoring value to users.
6. Active phased array system
Optimized design, achieved the balance of economy and reliability, to save costs for users.
III. Functions
1. Remote on/off function is available.
2. Obtain the distance, speed, Angle and other information of the detected object
3. Multi-target tracking switch, can track the target trajectory in real time
4. UDP protocol, with target fusion processing function, support photoelectric, frequency supplement, interference, trapping, driving away, sound and light fusion processing function.
5. Zone management can flexibly set up the zone, accurately locate and trigger the intrusion alarm.
6. It has the ability to adjust online according to detection sensitivity/speed range, Can effectively filter out false alarms caused by clutter.
7. It has the function of working status, offline/fault alarm.
8. Remote monitoring capability, It can be self-tested online.
9. It has the ability of adaptive processing of clutter map.
10. Equipped with radar pan-tilt linkage function,It can monitor and defend against drone intrusion more flexibly and comprehensively, and improve the efficiency and convenience of the monitoring system.
11. It has the ability of multi-site collaborative detection and the ability to fill in the blind spot of adjacent sites.
IV. Specifications
|
Working System
|
Active digital phased array (azimuth and pitch scanning) / pulsed Doppler |
| Working frequency band |
X-band
|
|
Effective Detection Range
|
100m to 5.0km (for drones with RCS ≥ 0.01㎡)
|
|
Azimuth Coverage
|
360°, elevation angle 40°
|
|
Detection Speed
|
1.8km/h to 270km/h
|
|
Operating Temperature
|
-45℃ ～ +55℃
|
|
Storage Temperature
|
-45℃ ～ +65℃
|
|
Azimuth Accuracy
|
≤0.4°
|
|
Elevation Accuracy
|
≤0.5°
|
|
Range Accuracy
|
≤10m
|
|
Speed Accuracy
|
≤0.5m/s
|
|
Data Rate
|
≥0.5Hz (antenna rotation speed 30rpm)
|
|
Data Interface
|
RJ45/1 100Mbps Ethernet
|
|
Power Input
|
≤400W (consumption) AC200-AC240 (input)
|
|
Weight
|
≤77kg (entire unit)
|
V. Product Size
