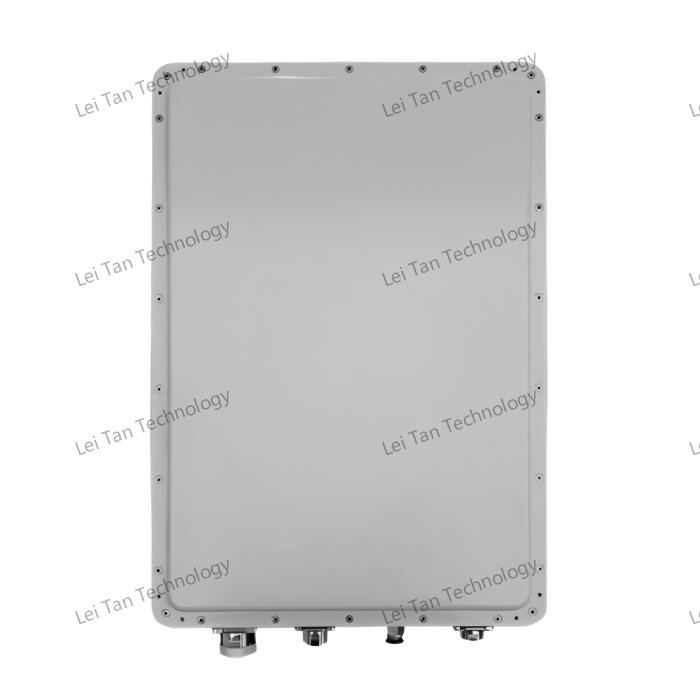

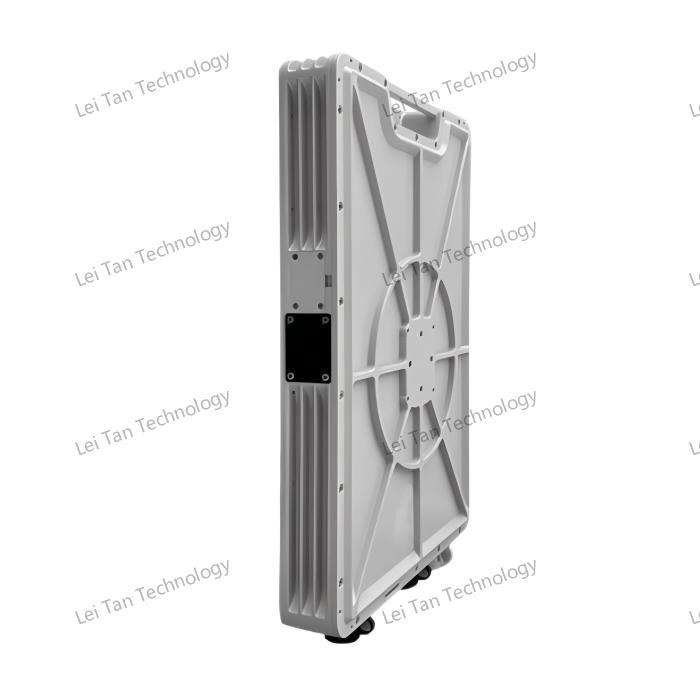

Real-Time Multi-Target Tracking Ground Surveillance Radar 24/7 All-Weather Operation
Ⅰ. Product Description
The is a cutting-edge ground surveillance radar system engineered for military, border security, and critical infrastructure protection. Combining Active Digital Phased Array (Azimuth Electronic Scanning) and Pulse Doppler technologies, this radar delivers real-time, high-precision detection and tracking of multiple moving targets—including personnel, vehicles—in all weather conditions.
Designed for 24/7 operation, the system excels in extreme environments (from -40°C to +55°C) and adverse weather (rain, snow, fog, or haze). Its MIMO (Multiple Input Multiple Output) architecture and DBF (Digital Beamforming) ensure superior resolution and reliability, even in cluttered or electronically contested areas.
Ⅱ. Product Features
1.Real-Time Multi-Target Tracking
Tracks targets simultaneously with a high data refresh rate (≥2 Hz).
AI-powered classification distinguishes between humans, vehicles.
2. All-Weather, All-Terrain Reliability
Operates flawlessly in torrential rain, snow, fog, and sandstorms.
Adaptive clutter filtering minimizes false alarms from environmental noise.
3. High-Speed Target Detection
Detects objects moving from 1.8 km/h to 108 km/h.
Stable trajectory tracking even for rapid directional changes.
4. Lightweight & Rapid Deployment
≤5.5 kg weight for easy mounting on poles, towers, or mobile units.
Plug-and-play integration with existing security systems.
Ⅲ. Product Functions
|
Remote Control
|
Supports remote on/off functionality
|
|
Output Information
|
Capable of obtaining information such as the distance, velocity, and angle of detected objects
|
|
Multi-Target Tracking
|
Supports multi-target tracking switching logic; can track the trajectories of multiple targets in real-time.
|
|
Target Fusion Processing
|
Supports data fusion processing from multiple sensors.Zone Management: Allows flexible setting of zones with precise positioning and the ability to trigger intrusion alarms.
|
|
Zone Management
|
Allows flexible setting of zones with precise positioning and the ability to trigger intrusion alarms.
|
|
Anti-Interference Capability
|
Features online adjustment capabilities for detection sensitivity and speed range, as well as the ability to filter out abnormal trajectory interference. Through sensitivity adjustment and abnormal trajectory filtering functions, it can effectively eliminate false alarms caused by clutter.
|
|
Online Monitoring Function
|
Capable of monitoring working status and issuing fault alarms; also has the ability to alert when the device goes offline.
|
|
Remote Monitoring Status
|
Has remote monitoring capabilities, can report device status in real-time, and features online/offline alarm functions for the device.
|
|
Online Self-Inspection Function
|
The device has the ability to perform online self-inspection.
|
|
Adaptive Processing Capability
|
Has the ability to adaptively handle moving target clutter and adaptively process clutter maps.
|
|
Linkage Function
|
Features radar pan-tilt linkage function, with target tracking and evidence capture (automatic tracking mode, radar tracking mode, image tracking mode).
|
|
Multi-Site Networking and Blanking
|
Capable of networking with multiple devices; has the ability for multi-site collaborative detection; and has the ability to fill in gaps when neighboring sites fail.
|
Ⅳ. Product Specifications
|
Working Mechanism
|
Active Digital Phased Array (Azimuth Electronic Scanning) / Pulse Doppler
|
|
Operating Frequency Band
|
C-band
|
|
Range
|
1.5Km
|
|
Effective Detection Range
|
100 m to 0.8 km (pedestrians)100 m to 1.2 km (small cars)
|
|
Azimuth Coverage
|
≥90°
|
|
Elevation Coverage
|
≥18°
|
|
Detection Speed
|
1.8 km/h to 108 km/h
|
|
Azimuth Accuracy
|
≤1.0°
|
|
Range Accuracy
|
≤8 m
|
|
Data Rate
|
≥2 Hz
|
|
Data Interface
|
RJ45 / 1 × 100 Mbps Ethernet
|
|
Power Input
|
≤45 W (power consumption), AC220V to AC240V (input)
|
|
Operating Temperature
|
-40°C to +55°C
|
|
Weight
|
≤5.5 kg
|
