Compact Design & Easy Deployment Radar Systems Versatile for Land, Sea, and Air
Ⅰ. Product Description

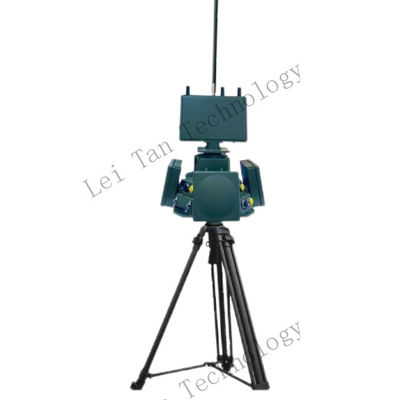

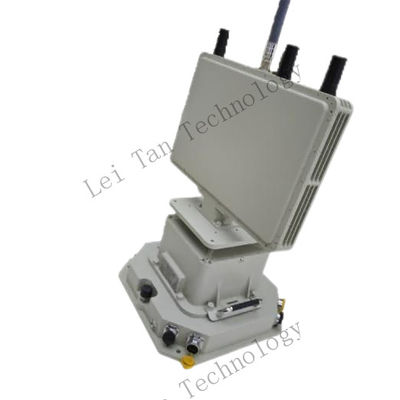

The Anti-Drone Radar System redefines portability and versatility in UAV defense, offering a compact, lightweight design that enables rapid deployment across land, sea, and air environments. Designed for military, law enforcement, and critical infrastructure protection, this system integrates advanced radar, spectrum analysis, and electronic countermeasures into a modular, transportable unit—delivering high-performance drone detection and neutralization in any operational scenario.
With its phased array radar (5400-5600MHz ISM band)and full-spectrum detection (20MHz-6GHz), the system achieves long-range identification (≥5km) and detection (≥7.5km)while maintaining a footprint of just ≤1500mm×1500mm×2800mm and a weight of ≤25kg. Its quick setup (≤15min) and IP65-rated ruggedness make it ideal for fixed installations, mobile vehicles, or maritime platforms, ensuring seamless adaptation to diverse mission requirements.
Whether securing borders, coastal zones, or urban centers, this system provides unmatched flexibility in countering drone threats—anywhere, anytime.
Ⅱ. Product Features
1. Compact & Lightweight Design
Dimensions (deployed)≤1500mm × 1500mm × 2800mm.
Weight≤25kg (easy to transport and install).
Modular components for flexible configurations.
2. Rapid Deployment & Easy Setup
≤15min assembly time—ideal for emergency responses.
2 transport cases for hassle-free mobility.
Plug-and-play operation with RJ45/Power interfaces.
3. Multi-Environment Versatility
Land Fixed sites (e.g., military bases, airports) or mobile units (e.g., armored vehicles).
Sea Shipboard deployment for coastal and maritime security.
Air Integration with aerial defense networks.
4. High-Performance Detection & Countermeasures
Radar Band 5400-5600MHz(ITU-compliant ISM).
Spectrum Analysis 20MHz-6GHz (covers all drone protocols).
Detection Range≥7.5km(database/non-database drones).
Jamming & Spoofing
GPS-L1 deception (up to 3km).
Multi-band jamming(e.g., 840-868MHz, 2400-2500MHz).
5. Rugged & Reliable
Operating Temp -40°C to 55°C.
IP65 protection against dust, rain, and salt spray.
≤95% humidity tolerance.
Ⅲ. Product Functions
|
Functional Indicators
|
Main Performance
|
|
System Detection Configuration
|
Radar Operating Band
|
5400-5600MHz (ISM band exempt from application by International Telecommunication Union)
|
|
Spectrum Detection Band
|
20MHz-6GHz full band
|
|
Operational Range
|
Identification Range: ≥5km (capable of identifying drone brands and models)
|
|
Detection Range: ≥7.5km (detects drones in the database and those using non-database communication protocols)
|
|
Unauthorized Flight Detection Range: ≥2km (detects all drones, including FPV and unauthorized flights)
|
|
Detection Success Rate
|
99%
|
|
Protocol Cracking
|
LightBridge1, LightBridge2; OcuSync; WIFI and WIFI variant protocols
|
|
Deception Takeover
|
Deception Frequency
|
GPS-L1
|
|
Deception Range
|
3km (adjustable)
|
|
Jamming Suppression
|
Jamming Bands
|
840-868MHz(flight control and video transmission)
|
|
902-928MHz(flight control and video transmission)
|
|
1560-1620MHz (navigation)
|
|
2400-2500MHz(flight control and video transmission)
|
|
5150-5850MHz(flight control and video transmission)
|
|
Operational Range
|
1000m
|
Ⅳ. Product Parameters
|
Parameter Indicators
|
|
Dimensions (when deployed)
|
≤1500mm×1500mm×2800mm
|
|
Weight
|
≤25kg (equipment)
|
|
Operating Temperature
|
-40℃～55℃
|
|
Storage Temperature
|
-45℃～65℃
|
|
Protection Rating
|
Ip65
|
|
Operating Humidity
|
≤ 95%
|
|
Data Interface
|
RJ45
|
|
Power Interface
|
Voltage: AC 180V-250V
|
|
Power: ≤100W (detection mode), ≤600W (countermeasure mode)
|
|
Setup Time
|
≤15min
|
|
Packaging
|
2 cases
|
|
Platform Functions
|
Real-time detection, alarm, automatic countermeasures, manual countermeasures, GIS mapping, data storage, event query
|
