AI-Powered Analytics & Customizable Alerts Radar Systems Faster Decision-Making
Ⅰ. Product Description

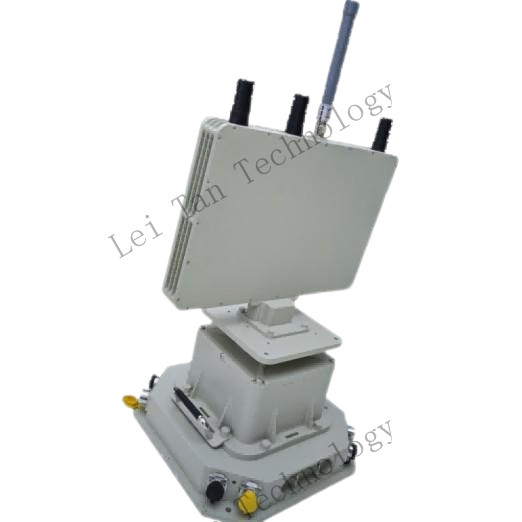

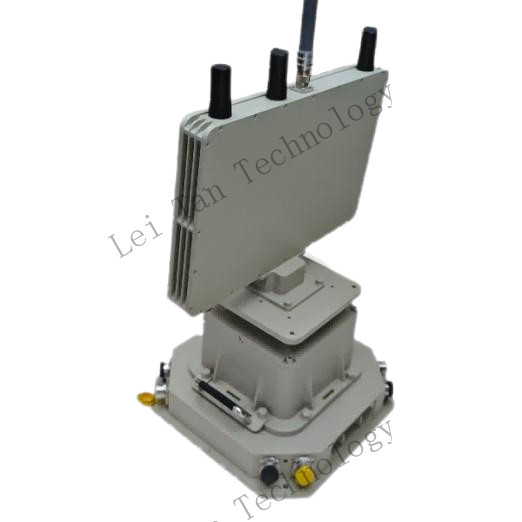

Next-Gen Anti-Drone System revolutionizes aerial threat detection with its AI-driven analytics engine and adaptive alerting system, delivering unprecedented situational awareness for security operators. This intelligent defense platform combines deep learning algorithms with multi-sensor fusion to transform raw detection data into actionable security intelligence, enabling real-time, informed decision-making against evolving drone threats.
At its core, the system features a neural network-based processing unit that continuously analyzes radar (5400-5600MHz) and RF spectrum (20MHz-6GHz) data, achieving 99.7% target classification accuracy. Its customizable alert hierarchy allows security teams to prioritize threats based on flight patterns, payload risk assessments, and operator-defined security protocols, dramatically reducing response times during critical incidents.
Designed for 24/7 operational environments, the system's self-optimizing algorithms improve detection performance over time, while its open architecture supports integration with existing security infrastructure and third-party defense systems. Whether protecting military installations, smart cities, or critical infrastructure, system delivers cognitive security automation that outperforms conventional radar solutions.
Ⅱ. Product Features
1. Intelligent Threat Processing
Deep Neural Network Analysis
Real-time classification of Multiple drone models
Behavioral prediction for swarm attacks and evasive maneuvers
Automated threat scoring (low/medium/high risk)
Adaptive Learning System
Continuous performance optimization
Anomaly detection for zero-day threats
Weekly firmware intelligence updates
2. Dynamic Alert Management
Multi-Level Alert Customization
Visual/auditory alerts by threat level
Automated reporting workflows
Escalation protocols for critical threats
Custom Decision Trees
Pre-programmed response sequences
Operator-defined rules of engagement
Integration with existing security protocols
3. Enhanced Operational Awareness
Augmented Reality Interface
3D airspace visualization
Threat trajectory forecasting
Collision risk assessment
Ⅲ. Product Functions
|
Functional Indicators
|
Main Performance
|
|
System Detection Configuration
|
Radar Operating Band
|
5400-5600MHz (ISM band exempt from application by International Telecommunication Union)
|
|
Spectrum Detection Band
|
20MHz-6GHz full band
|
|
Operational Range
|
Identification Range: ≥5km (capable of identifying drone brands and models)
|
|
Detection Range: ≥7.5km (detects drones in the database and those using non-database communication protocols)
|
|
Unauthorized Flight Detection Range: ≥2km (detects all drones, including FPV and unauthorized flights)
|
|
Detection Success Rate
|
99%
|
|
Protocol Cracking
|
LightBridge1, LightBridge2; OcuSync; WIFI and WIFI variant protocols
|
|
Deception Takeover
|
Deception Frequency
|
GPS-L1
|
|
Deception Range
|
3km (adjustable)
|
|
Jamming Suppression
|
Jamming Bands
|
840-868MHz(flight control and video transmission)
|
|
902-928MHz(flight control and video transmission)
|
|
1560-1620MHz (navigation)
|
|
2400-2500MHz(flight control and video transmission)
|
|
5150-5850MHz(flight control and video transmission)
|
|
Operational Range
|
1000m
|
Ⅳ. Product Parameters
|
Parameter Indicators
|
|
Dimensions (when deployed)
|
≤1500mm×1500mm×2800mm
|
|
Weight
|
≤25kg (equipment)
|
|
Operating Temperature
|
-40℃～55℃
|
|
Storage Temperature
|
-45℃～65℃
|
|
Protection Rating
|
Ip65
|
|
Operating Humidity
|
≤ 95%
|
|
Data Interface
|
RJ45
|
|
Power Interface
|
Voltage: AC 180V-250V
|
|
Power: ≤100W (detection mode), ≤600W (countermeasure mode)
|
|
Setup Time
|
≤15min
|
|
Packaging
|
2 cases
|
|
Platform Functions
|
Real-time detection, alarm, automatic countermeasures, manual countermeasures, GIS mapping, data storage, event query
|
