15km X-Band Surveillance Radar | 60RPM High-Speed Scan & 300+ Target Processing Capability

Name: 15km X-Band Surveillance Radar | 60RPM High-Speed Scan & 300+ Target Processing Capability
Brand: Chongqing Leikan Technology Co., Ltd
SKU: LKST-X115
Availability: InStock

Product Details:

Brand Name:	Lei Kan
Model Number:	LKST-X115

Detail Information

Brand Name:

Lei Kan

Model Number:

LKST-X115

Keep Track Of The Number Of Targets:

≥300 Batches

Working Frequency Band:

X Band

Detection Radius:

UAV≥15km, Personnel≥14km, Vehicle>15km

Antenna Rotation Speed:

30 Rpm (180°/s) Upgradeable 60 Rpm

Trading Information

Minimum Order Quantity:

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

Overview

The LKST-X115 Low Altitude Surveillance Radar is primarily deployed for low-altitude and ground surveillance operations. Utilizing digital beamforming technology, it features low equivalent omnidirectional radiation power while delivering high search data rates. The radar incorporates adaptive clutter suppression and dense target detection pre-tracking systems, achieving extremely low false alarm rates. It can automatically track and establish heading for over 300 target groups, providing high-precision positional information.

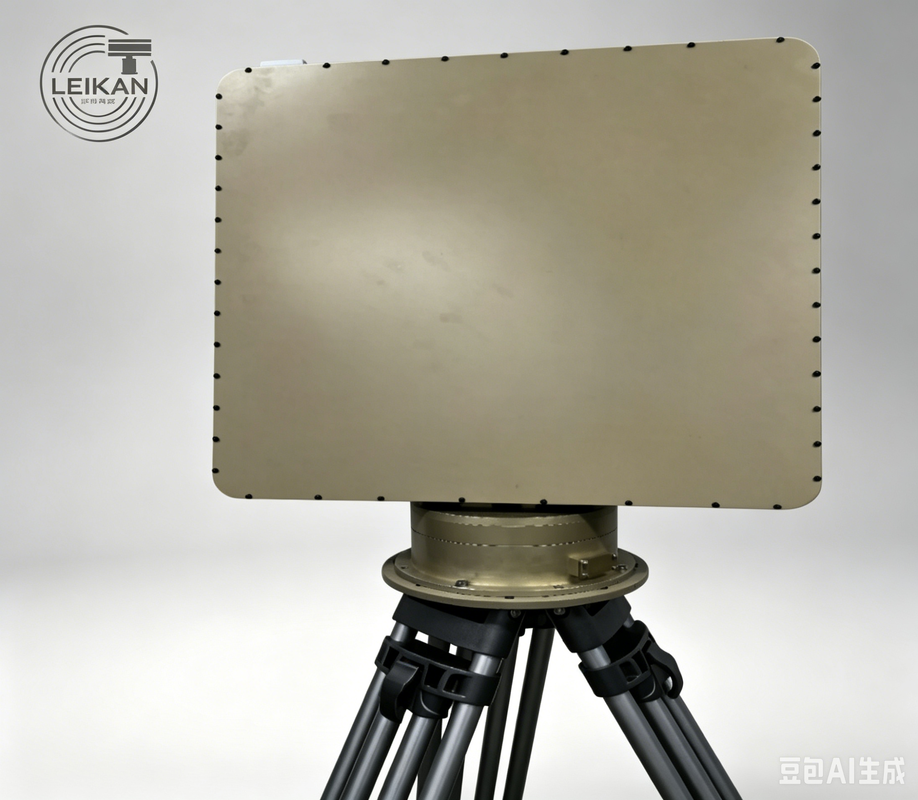

15km X-Band Surveillance Radar | 60RPM High-Speed Scan & 300+ Target Processing Capability 0

Highlights

Detection: ≥8 km (quadcopter) / ≥14 km (person) / ≥15 km (vehicle)
300 tracks with ≤5 m range & ≤0.4° angle accuracy
Ultra-low false alarm in heavy clutter
−3°–60° elevation for complex terrain
≤35 kg, ≤330 W for vehicle or man-pack use

Specifications

Parameter Name	Parameter Value
Operating Frequency	X-band 9.8–10 GHz
Elevation Coverage	−3°–60°
Azimuth Coverage	360°
Detection Range	Small quadcopter (RCS 0.01 m²) ≥ 8 km Small fixed-wing UAV (RCS 0.1 m²) ≥ 12 km Medium fixed-wing UAV (RCS 1 m²) ≥ 15 km Personnel ≥ 14 km• Helicopter / vehicle ≥ 15 km
Maximum Detection Altitude	≥ 2 000 m
Blind Zone	≤ 50 m
Range Accuracy	≤ 5 m (RMS)
Angular Accuracy	Azimuth ≤ 0.4° (RMS) / Elevation ≤ 0.4° (RMS)
Antenna Rotation Speed	30 rpm (180°/s) upgradeable to 60 rpm (360°/s)
Simultaneous Tracks	≥ 300
Tracking Speed Range	1–150 m/s
Clutter Rejection	Immune to common clutter
Operating Temperature	−40 °C to +55 °C
Humidity	≤ 60 %
Protection Level	IP65 (main unit IP67)
Weight	≤ 35 kg
Power Consumption	≤ 330 W
Array Dimensions	540 × 675 × 85 mm
Resolution	4° (azimuth) / 7° (elevation)
Transmit Power	≤ 30 W

Features

High data-rate DBF for fast update
Adaptive clutter suppression rejects rain, ground & sea clutter
Wide elevation for mountainous and urban scenarios
Built-in recording & playback for post-mission analysis
