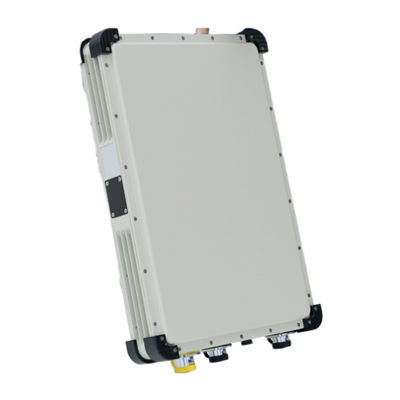

Offshore Vessel Monitoring Phased Array Radar Long Range Easy To Install Phased Array Radar 8.5km
I. Product Description
This product is a high-end radar system designed specifically for offshore and inland areas, mainly used for real-time monitoring, target detection, alarm triggering, and trajectory indication of ships. It can accurately capture the trajectory information of ships and provide reliable data support for safety monitoring in offshore areas, with a range of up to 8.5km.
II. Features
1. Real time monitoring capability
Precise environmental monitoring:Capable of real-time monitoring of the surrounding water environment, quickly identifying and responding to abnormal situations.
Efficient object detection: With high data refresh rate, it can continuously and stably track fast-moving targets, accurately capturing their dynamic information.
2. Wide coverage area
Flexible expansion:Multiple radars can be connected in series to form an array, further expanding the monitoring range and achieving seamless monitoring of key areas.
3. Easy installation and deployment
Quick installation: The system design is simple, easy to install and set up, and can be quickly put into use.
Flexible adaptation: can be installed on existing infrastructure such as lamp posts, buildings, etc., without the need for additional construction.
4. 24/7 operation
24/7 uninterrupted monitoring: providing real-time monitoring services regardless of day or night, rain or shine.
Adaptability to adverse weather conditions: able to work stably even in harsh weather conditions such as rain, snow, fog, and haze.
III. Functions
1.Maritime safety monitoring
Ship detection and tracking: Real time detection and tracking of ship dynamics to ensure maritime safety.
Target indication and alert: Provide target indication and alert functions to promptly detect potential threats.
2.Navigation safety guarantee
Trajectory information capture: Accurately capturing target trajectory information to provide data support for ship navigation safety.
Improving monitoring efficiency: significantly enhancing ship safety monitoring efficiency and reducing accident risks.
3.marine traffic management
Multiple application scenarios supported: suitable for ports, waterways, and offshore work areas, providing powerful support for maritime traffic management.
IV. Specifications
|
Work System
|
Active digital phased array/ pulse Doppler
|
|
Working Frequency Band
|
C-band
|
|
Range
|
8.5km
|
|
Effective Detection Power
|
100m～8.0km(5-10m boat)
|
|
Directional Coverage
|
≥90°
|
|
Elevation Coverage
|
≥9°
|
|
Detecting Speed
|
1.8km/h～108km/h
|
|
Azimuth Accuracy
|
≤1.0°
|
|
Distance Accuracy
|
≤10m
|
|
Data Rate
|
≥2Hz
|
|
Data Interface
|
RJ45/1-channel 100Mbps Ethernet
|
|
Power Input
|
≤ 65W (power consumption)
AC200-AC240 (input)
|
|
Operation Temperature
|
-40℃～+55℃
|
|
weight
|
≤5.5kg
|
V. Product Advantages and Competitiveness
Real time monitoring capability: able to monitor the dynamics of the sea area in real time and detect abnormal situations in a timely manner.
Fast object detection: Strong detection ability for fast-moving targets, ensuring no omissions in monitoring.
Wide coverage: A single radar has a large coverage area, and multiple radars can form a seamless monitoring network.
