Wide Area High Sensitivity Marine Surveillance Radar Coastal Monitoring C Band 5.2km

Name: Wide Area High Sensitivity Marine Surveillance Radar Coastal Monitoring C Band 5.2km
Brand: Chongqing Leikan Technology Co., Ltd
SKU: LTSR137-4200C
Availability: InStock

Product Details:

Brand Name:	Lei Tan
Model Number:	LTSR137-4200C

Detail Information

Brand Name:

Lei Tan

Model Number:

LTSR137-4200C

Wide Coverage:

Range Reaches5.2km

Convenient Installation:

Can Be Built And Installed Using Lamp Posts Or Original Foundations

Multi Site Networking For Blind Spots:

Capable Of Multi Site Collaborative Detection And Neighboring Site Fault Blinding Capability

Online Monitoring Function:

Equipped With Working Status And Fault Alarm Function

Highlight:

High Light

Highlight:

High Sensitivity marine surveillance radar

Coastal Monitoring marine surveillance radar

Wide Area portable surveillance radar

Trading Information

Minimum Order Quantity:

Payment Terms:

,L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

I. Product Description

This radar system is specifically developed for coastal and inland waterway areas, featuring real-time vessel monitoring, target detection, alarm triggering, and trajectory indication. It can accurately obtain vessel trajectory information, providing robust data support for coastal security monitoring.

Wide Area High Sensitivity Marine Surveillance Radar Coastal Monitoring C Band 5.2km 0

II. Features

Accurate Monitoring

Precise Environmental Monitoring: Capable of real-time monitoring, it can quickly and accurately identify abnormalities and provide feedback.
High Data Refresh Rate: It can continuously track fast-moving targets and accurately capture target information.

Wide Coverage

Flexible Expansion: Multiple radars can be connected in series to expand the monitoring area, achieving large-scale coverage of key water areas.

Easy Installation and Deployment

Simple Design: The lightweight and compact body is easy to install.
Flexible Mounting: It can be installed and integrated with existing infrastructure without the need for additional construction.

Uninterrupted Operation

In addition to 24/7 comprehensive monitoring, it can operate stably in various adverse weather conditions, including rain, snow, fog, and haze.

III. Functions

Maritime Safety Monitoring

Vessel Detection and Tracking: Real-time detection and tracking of vessel movements to monitor abnormal activities.
arget Indication and Alarm: Provides target trajectory indication and alarm functions to detect potential threats in a timely manner.

IV. Specifications

Work System	Active digital phased array/ pulse Doppler
Working Frequency Band	C-band
Range	5.2km
Effective Detection Power	100m～5.0km(5-10m boat)
Directional Coverage	≥90°
Elevation Coverage	≥18°
Detecting Speed	1.8km/h～108km/h
Azimuth Accuracy	≤1.0°
Distance Accuracy	≤10m
Data Rate	≥2Hz
Data Interface	RJ45/1-channel 100Mbps Ethernet
Power Input	≤ 60W (power consumption) AC200-AC240 (input)
Operation Temperature	-40℃～+55℃
weight	≤5.5kg

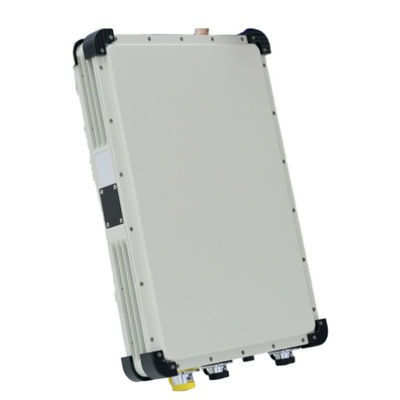

Wide Area High Sensitivity Marine Surveillance Radar Coastal Monitoring C Band 5.2km 1

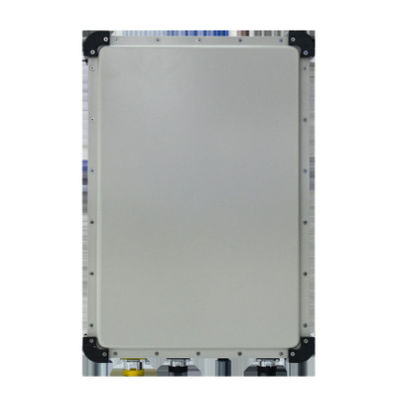

Wide Area High Sensitivity Marine Surveillance Radar Coastal Monitoring C Band 5.2km 2

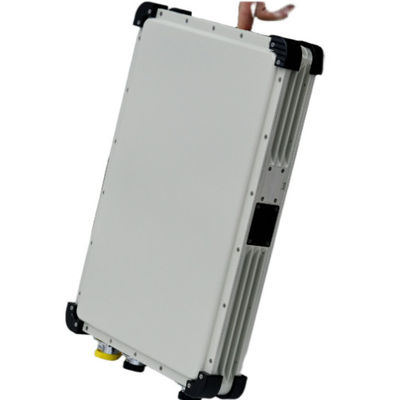

Wide Area High Sensitivity Marine Surveillance Radar Coastal Monitoring C Band 5.2km 3

V. Product Advantages and Competitiveness

Real-Time Monitoring Capability: Capable of real-time monitoring of target sea areas to quickly detect and warn of abnormalities.
Rapid Target Detection: Strong detection capability for multiple fast-moving targets to ensure no omissions in monitoring.
Wide Coverage: A single radar covers a large area, and multiple radars can form a seamless monitoring network.
