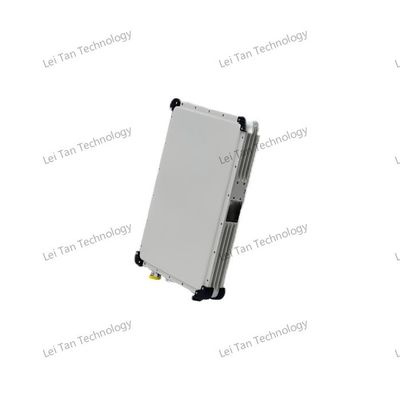

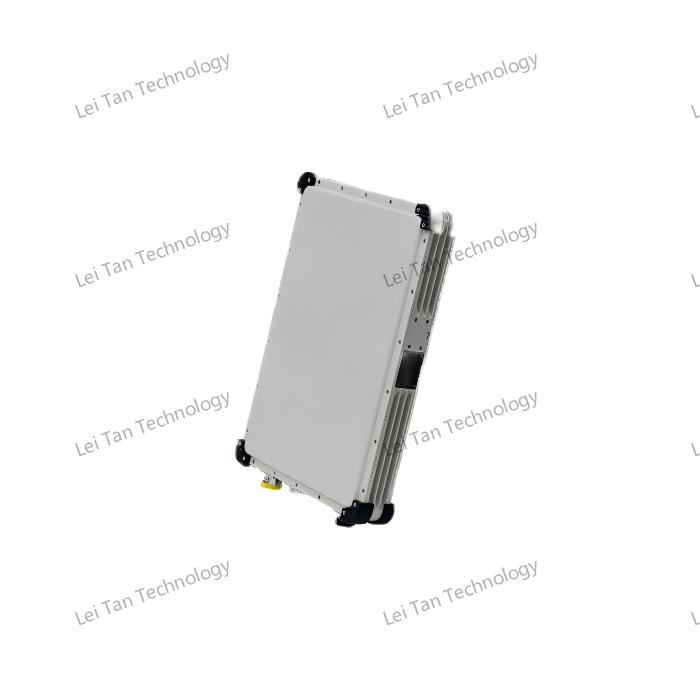

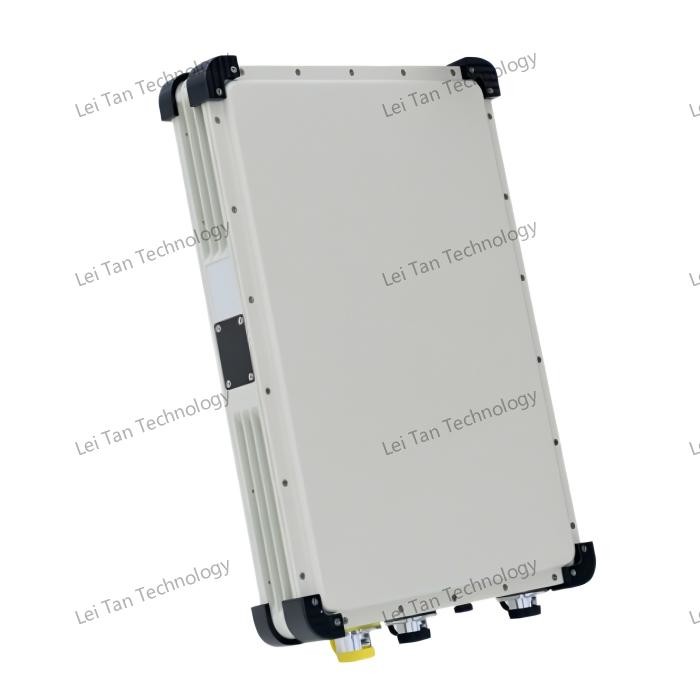

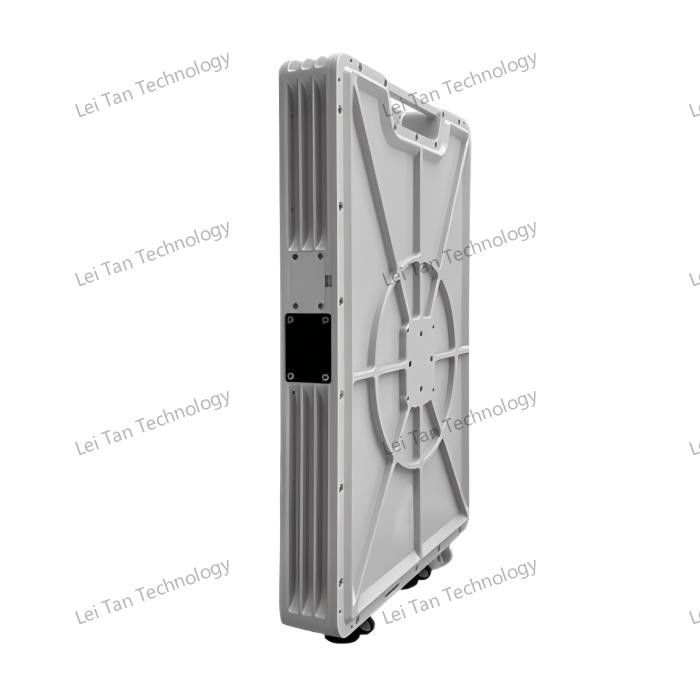

Wide-Area Detection (≥90° Azimuth) Ground Surveillance Radar Seamless Multi-Radar Networking
Ⅰ. Product Description
Wide-Area Ground Surveillance Radar is an advanced, high-performance radar system designed for large-scale perimeter security, border monitoring, and critical infrastructure protection. Featuring an ultra-wide ≥90° azimuth coverage, this radar delivers comprehensive, real-time detection of moving objects—including pedestrians, vehicles,across expansive areas.
Built with MIMO architecture and DBF technology, this active phased array radar ensures high-precision tracking with minimal blind spots. Its seamless multi-radar networking capability allows multiple units to operate in unison, creating continuous, overlapping surveillance zonesfor border security, military bases, and high-value facilities.
Ⅱ. Product Features
1. Ultra-Wide Azimuth Coverage (≥90°)
Broad detection arc minimizes blind zones, ensuring full perimeter visibility.
High angular resolution for precise target localization.
2. Seamless Multi-Radar Networking
Automatic synchronization between multiple radars for continuous coverage.
Redundant detection eliminates gaps when one unit is offline.
3. All-Weather & 24/7 Operation
Resistant to rain, snow, fog, and dust—no degradation in performance.
Thermal stability maintains accuracy in extreme temperatures (-40°C to +55°C).
4. Smart Anti-Interference & False Alarm Reduction
Adaptive clutter filtering to ignore environmental noise (foliage, animals).
AI-powered anomaly detection to distinguish real threats from false signals.
5. Flexible Deployment & Low Maintenance
Quick installation on poles, towers, or custom mounts.
Remote diagnostics & self-checks reduce maintenance downtime.
Ⅲ. Product Functions
|
Working Mechanism
|
Active Digital Phased Array (Azimuth Electronic Scanning) / Pulse Doppler
|
|
Operating Frequency Band
|
C-band
|
|
Range
|
1.5Km
|
|
Effective Detection Range
|
100 m to 0.8 km (pedestrians)100 m to 1.2 km (small cars)
|
|
Azimuth Coverage
|
≥90°
|
|
Elevation Coverage
|
≥18°
|
|
Detection Speed
|
1.8 km/h to 108 km/h
|
|
Azimuth Accuracy
|
≤1.0°
|
|
Range Accuracy
|
≤8 m
|
|
Data Rate
|
≥2 Hz
|
|
Data Interface
|
RJ45 / 1 × 100 Mbps Ethernet
|
|
Power Input
|
≤45 W (power consumption), AC220V to AC240V (input)
|
|
Operating Temperature
|
-40°C to +55°C
|
|
Weight
|
≤5.5 kg
|
Ⅳ. Product Parameters
|
Working Mechanism
|
Active Digital Phased Array (Azimuth Electronic Scanning) / Pulse Doppler
|
|
Operating Frequency Band
|
C-band
|
|
Range
|
1.5Km
|
|
Effective Detection Range
|
100 m to 0.8 km (pedestrians)100 m to 1.2 km (small cars)
|
|
Azimuth Coverage
|
≥90°
|
|
Elevation Coverage
|
≥18°
|
|
Detection Speed
|
1.8 km/h to 108 km/h
|
|
Azimuth Accuracy
|
≤1.0°
|
|
Range Accuracy
|
≤8 m
|
|
Data Rate
|
≥2 Hz
|
|
Data Interface
|
RJ45 / 1 × 100 Mbps Ethernet
|
|
Power Input
|
≤45 W (power consumption), AC220V to AC240V (input)
|
|
Operating Temperature
|
-40°C to +55°C
|
|
Weight
|
≤5.5 kg
|
