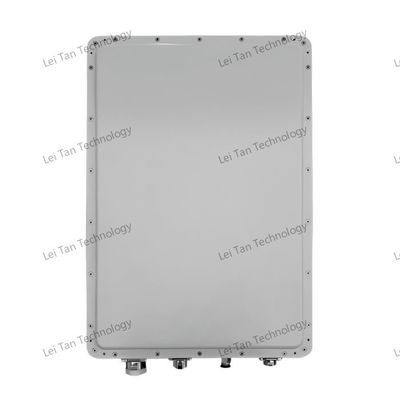

Adaptive Clutter Filtering Ground Surveillance Radar Anti-Jamming Capability

Remote Control

Supports remote on/off functionality

Output Information

Capable of obtaining information such as the distance, velocity, and angle of detected objects

Multi-Target Tracking

Supports multi-target tracking switching logic; can track the trajectories of multiple targets in real-time.

Target Fusion Processing

Supports data fusion processing from multiple sensors.Zone Management: Allows flexible setting of zones with precise positioning and the ability to trigger intrusion alarms.

Zone Management

Allows flexible setting of zones with precise positioning and the ability to trigger intrusion alarms.

Anti-Interference Capability

Features online adjustment capabilities for detection sensitivity and speed range, as well as the ability to filter out abnormal trajectory interference. Through sensitivity adjustment and abnormal trajectory filtering functions, it can effectively eliminate false alarms caused by clutter.

Online Monitoring Function

Capable of monitoring working status and issuing fault alarms; also has the ability to alert when the device goes offline.

Remote Monitoring Status

 Has remote monitoring capabilities, can report device status in real-time, and features online/offline alarm functions for the device.

Online Self-Inspection Function

The device has the ability to perform online self-inspection.

Adaptive Processing Capability

Has the ability to adaptively handle moving target clutter and adaptively process clutter maps.

Linkage Function

Features radar pan-tilt linkage function, with target tracking and evidence capture (automatic tracking mode, radar tracking mode, image tracking mode).

Multi-Site Networking and Blanking

Capable of networking with multiple devices; has the ability for multi-site collaborative detection; and has the ability to fill in gaps when neighboring sites fail.

Working Mechanism

 Active Digital Phased Array (Azimuth Electronic Scanning) / Pulse Doppler

Operating Frequency Band

 C-band

Range

1.5Km

Effective Detection Range

100 m to 0.8 km (pedestrians)100 m to 1.2 km (small cars)

Azimuth Coverage

 ≥90°

Elevation Coverage

≥18°

Detection Speed

1.8 km/h to 108 km/h

Azimuth Accuracy

≤1.0°

Range Accuracy

≤8 m

Data Rate

≥2 Hz

Data Interface

RJ45 / 1 × 100 Mbps Ethernet

Power Input

≤45 W (power consumption), AC220V to AC240V (input)

Operating Temperature

-40°C to +55°C

Weight

≤5.5 kg
