Fast Scanning Stabilizes Border Security Radar Ground Based Surveillance Radar C Band

1
MOQ
Fast Scanning Stabilizes Border Security Radar Ground Based Surveillance Radar C Band
Features Gallery Product Description Request A Quote
Features
Specifications
Adaptive Processing Capability: It Has The Ability To Adaptively Process Moving Targets And Clutter, Supporting Adaptive Processing Of Clutter Maps
Multi Target Tracking: Supports Multi-target Tracking Switching Logic, And Can Track All Target Trajectories In Real Time
Intelligent Detection And Analysis: It Includes Intelligent Algorithms For Automatic Target Recognition And Classification
Data Aggregation And Transmission: Security Personnel Can Obtain Real-time Information To Make Effective Decisions
Highlight:

Fast Scanning Border Security Radar

,

Fast Scanning Ground Based Surveillance Radar

,

C Band Ground Based Surveillance Radar

Basic Infomation
Brand Name: Lei Tan
Model Number: LTSR-SBDB
Payment & Shipping Terms
Payment Terms: ,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description

Fast Scanning Technology Stabilizes Border Security Ground Safety Radar Unmanned Operation

I. The Product Description

The electronic sentry system is a cutting-edge smart security solution designed for border surveillance and ground security surveillance. It integrates advanced detection, perception and response capabilities into a low-power and highly reliable system. The system is ideal for deployment in critical areas such as mountain passes, corridors, and uninhabited plateaus where traditional security measures may be insufficient. The system consists of detection equipment, aggregation equipment and mobile terminals, which provide comprehensive monitoring and rapid response to illegal intrusion, smuggling and other security threats.

II. Product Features

High environmental adaptability

The system is designed to operate effectively in a variety of environments, including high altitudes and coastal areas. It has strong performance in extreme weather conditions to ensure continuous and reliable operation.

Low power consumption and long standby

The system is optimized for low power consumption and can be run for extended hours without the need for frequent charging or power. This makes it ideal for remote or off-grid locations.

No one does and self-wakes up

The system is fully automated, with a self-wake-up function that responds immediately to detected threats. This feature ensures that the system is always vigilant, even in unattended areas.

III. Product Functions

Deploy and hide quickly

The system can be quickly deployed and hidden in strategic locations, providing instant security coverage. Its compact design and low-profile deployment make it difficult for potential intruders to detect.

Data Aggregation and Transfer

The system aggregates data from multiple inspection devices and securely transmits it to a mobile terminal or central control unit. This ensures that security personnel have access to real-time information for effective decision-making.

IV. Competitiveness

The Electronic Sentry System is a powerful and versatile solution for stabilizing border security and ground security. Its fast scanning technology, low power consumption, and unmanned capability make it ideal for modern security needs.

V. Parameters

Working system Phased array system/convolution Doppler
Working frequency band C wave band
Full coverage ≥90°
Ply and glide ≥18°
For pedestrians 100m~1.5km
For mobile vehicles 100m-3km
For 5-10m mobile ships 100m~3km
Detection speed L8km/h-130km/h
data interface  Wireless transmission (supporting RJ45)
rated dissipation  ≤ 55W (array surface)
Positioning and orientation It has automatic positioning and orientation function
working temperature  -20℃-55℃
Array size 346mm×280mmx84mm
 duration of flight ≥ 4h (at room temperature, single cell)
Installation time ≤3min
weight ≤12.0kg

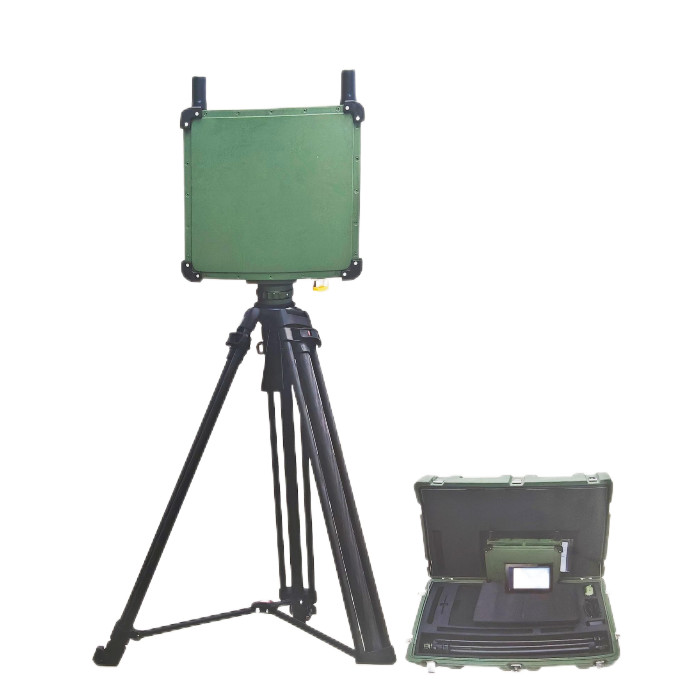

Fast Scanning Stabilizes Border Security Radar Ground Based Surveillance Radar C Band 0   Fast Scanning Stabilizes Border Security Radar Ground Based Surveillance Radar C Band 1



Fast Scanning Stabilizes Border Security Radar Ground Based Surveillance Radar C Band 2  Fast Scanning Stabilizes Border Security Radar Ground Based Surveillance Radar C Band 3
