Ⅰ. Product Presentation

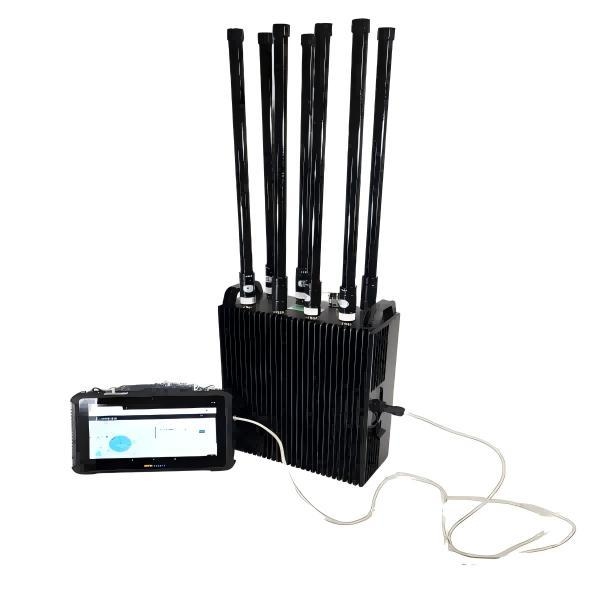

The portable UAV detection and countermeasure integrated system combines detection positioning, jamming countermeasures, and terminal control in a unified design. Powered by built-in batteries, it delivers optimal performance when deployed at elevated positions according to technical characteristics. The device is highly adaptable – portable for on-the-go use, flexible enough for temporary high-point setups, and mountable on vehicle roofs. With 10-meter remote control capabilities.
Ⅱ. Equipment Features
1. Passive Detection
Passively receives signals without emitting electromagnetic waves, detecting unauthorized drone signals including brand, model, and frequency information. Unaffected by rain, snow, or fog, providing 360° all-weather detection.
2. Drone & Pilot Tracking
Locates DJI series drones and remote control devices, identifies unique serial numbers, and displays real-time coordinates (latitude, longitude), orientation, distance, speed, and altitude.
3. Comprehensive Database
Recognizes most other models available on the market,DIY drones and WiFi-enabled models.
4. Unattended Monitoring
Enables automated drone defense management. The control platform initiates interference upon detecting unauthorized drones, allowing customizable duration settings.
5. Long-range Alert
Detects up to 3km in unobstructed environments, covering over 95% of commercial drone models.
6. Broadband Strike:
Utilizes high-speed digital scanning technology and high-power RF amplification with omnidirectional antennas to simultaneously jam multiple drones from various directions, forcing them to return or land.
Ⅲ. Product Specifications
|
Parameter Name
|
Parameter Value
|
|
Detect and identify drone types
|
most other models available on the market, including DIY racing drones and WiFi drones Positionable
|
|
Drone Models
|
DJI Mavic, Air, Mini, FPV, Avata, and other series
|
|
Detection Frequency Bands
|
70MHz~6GHz
|
|
Detection range
|
Up to 3km, depending on the environment
|
|
Number of targets detectable simultaneously
|
≥20 targets
|
|
Continuous detection time
|
≥8h
|
|
Azimuth error
|
≤3°(RMS)
|
|
Positioning accuracy
|
≤10m
|
|
Detection success rate
|
≥99%
|
|
Response time
|
≤3s
|
|
Countermeasure Mode
|
Radio Frequency Interference
|
|
Countermeasure Target
|
Drone video transmission, flight control link, navigation signal Countermeasure
|
|
Countermeasure Frequency Bands
|
900MHz, 1.5GHz, 2.4GHz, 5.8GHz
|
|
Countermeasure Distance
|
1 km (varies depending on the drone model)
|
|
Countermeasure Range
|
Omnidirectional 360°
|
|
Size
|
280mm*380mm*120mm
|
|
Weight
|
≤13kg
|
|
Battery
|
Built-in replaceable battery
|
|
Endurance time
|
Detection ≥8h, interference ≥1h
|
|
Charging time
|
≤6h
|
|
Total power consumption
|
Detection on: 55W, interference on: 500W
|
|
Telecontrol
|
10 meters remote control
|
|
Working temperature
|
-40~65℃
|
|
Relative humidity
|
5%-100%
|
|
Atmospheric pressure
|
70kPa-106kPa
|
|
Protection level
|
IP56
|
