Ⅰ. Product Presentation

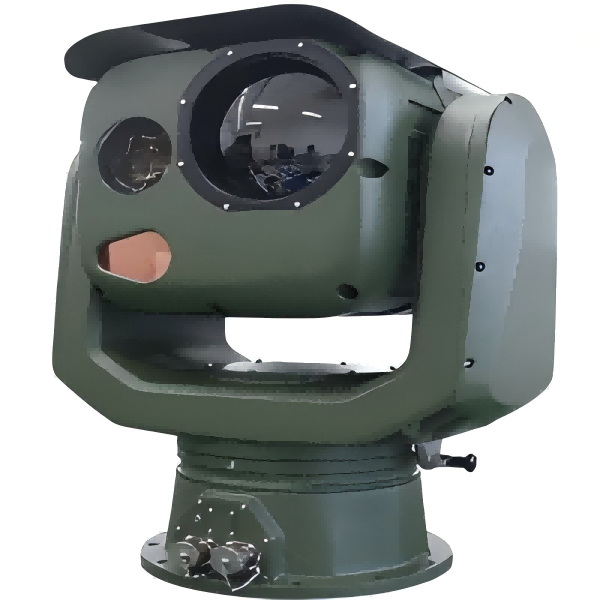

The system is mainly composed of visible light camera, non-cooled infrared thermal imaging, servo turntable machinery, tracking module, lightning protection system and other parts. Visible light camera and infrared thermal imaging are used to collect multi-spectrum video signals
Ⅱ. Work pattern
1. Power Failure Memory
Supports recovery of pre-power-off position, preset point status, patrol status, and line scan status.
2. Fault Detection
Supports power-on self-test, status query, and fault code feedback.
3. Data Feedback
Features real-time/query feedback and positioning functions for lens field of view, magnification, ZOOM/FOCUS values, and platform angles; supports real-time/query feedback and positioning functions for horizontal and tilt angles.
4. Remote Maintenance
Features remote reboot, online upgrade, and remote upgrade functions for convenient system maintenance.
5. Keyframe Settings
Supports 100-level adjustable keyframe intervals.
6. Configuration Files
Supports import and export of configuration files.
7. Web Access
Supports full-function WEB configuration and remote online upgrades.
Ⅲ. Product Specifications
|
Dimensions
|
420mm×358mm×540mm
|
|
Weight
|
37kg
|
|
Protection Level
|
IP66
|
|
Power Supply
|
DC12V
|
|
Power Consumption
|
Rated power consumption ≤ 150W
Peak power consumption ≤ 350W
|
|
Communication Interface
|
RJ45
|
|
Measurement accuracy
|
0.02
|
|
Ranging accuracy
|
No ranging capability
|
|
Reliability in hours
|
80,000 hours
|
|
Edge Computing
|
AI performance 16TOPS, Memory 8GB, CPU 8 cores
|
|
AI Automatic Zoom
|
Supported
|
|
Area Intrusion Detection & Automatic Tracking Function
|
Supported
|
|
Output Delay
|
300ms
|
|
IP Output
|
Dual single IP
|
|
Thermal Imaging
|
Uncooled
|
|
Detector
|
Vanadium oxide
|
|
Pixel Size
|
12um
|
|
Resolution
|
640x512
|
|
Sensitivity (NETD)
|
30
|
|
Spectral Range
|
7.5~14um
|
|
Lens Focal Length
|
31~155mm
|
|
Detector
|
1/1.8
|
|
Resolution
|
4 million pixels
|
|
Focus and Zoom Method
|
Automatic/Manual
|
|
Lowest Illumination:
|
Color: 0.002Lux; B/W: 0.0002Lux
|
|
Lens Focal Length
|
Color: 0.002Lux; B/W: 0.0002Lux
|
|
Day/Night Transition Mode
|
Supported
|
|
Pan/Tilt Type
|
Servo platform, brushless motor
|
|
Rotation Speed
|
1. Horizontal: 0.01°/s to 120°/s; Tilt: 0.01°/s to 90°/s
2. Acceleration: Horizontal 120°/s², Tilt 120°/s²
|
|
Rotation Angle
|
Horizontal: 360° continuous rotation; Tilt: -30° to +60°
|
|
Positioning Accuracy
|
0.01
|
|
Preset Positions
|
3000
|
|
Detection Range
|
Under conditions of atmospheric visibility ≥ 20km, humidity ≤ 50% RH, and temperature difference > 6K, for a 0.3m × 0.3m UAV target
Visible light tracking range ≥ 3000m;
Thermal imaging tracking range ≥ 1500m.
|
Ⅳ. Detection and Tracking Modes/Technologies
(Manual/Active Detection/Intelligent Recognition/Automatic Tracking)
1. Tracking Method
Embedded hardware tracking at the front end.
2. Tracking Algorithm
Built-in multiple tracking algorithms, supporting multi-target detection, automatic capture, occlusion-resistant tracking, and recognition tracking.
3. Tracking Modes
Manual and automatic tracking, with radar linkage support.
4. Tracking Functions
Supports automatic zoom during tracking, dual-target recognition; supports adaptive tracking gate, with tracking frame size adjustable according to target size.
5. Tracking Display
Features eagle-eye display of tracked targets, with adjustable eagle-eye position; supports 2x, 4x, 8x magnification display of targets; supports display of tracking status, target pixel size, off-target amount, confidence level, and other OSD custom displays within the tracking frame.
6. Tracking Accuracy: ≤0.5 mrad.
7. Video Switching
Digital HD visible light/digital infrared video switching and tracking.
