10km Ku-Band Low-altitude Surveillance Radar All-weather Intelligent Anti-jamming

Ⅰ.  Product Overview:

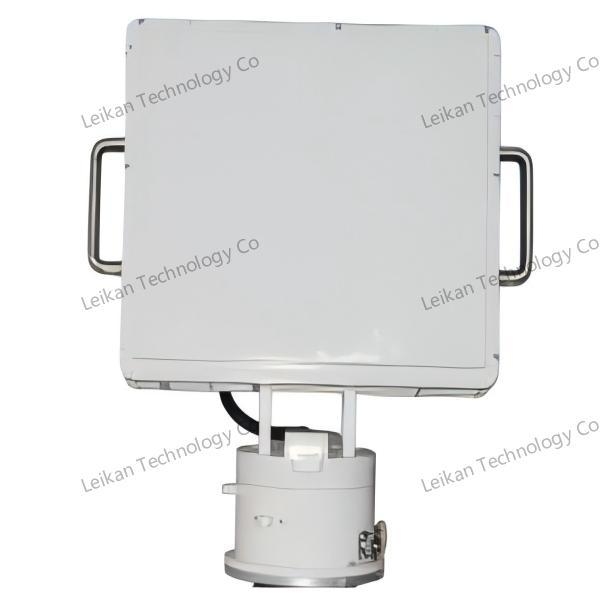

The LKXR-RD103 Ku-band Remote Phased Array Radar employs a fully solid-state, fully coherent system with pulse Doppler technology. Utilizing machine learning for clutter suppression in complex environments, it enables round-the-clock detection and tracking of "low, small, slow" targets. The radar achieves long-range detection of small targets through azimuth scanning and pitch scanning mechanisms.

Ⅱ.  Product Features

Integration of Advanced Systems and Intelligent Technologies.

Built on hardware foundations featuring all-solid-state, fully coherent, and pulse Doppler systems, combined with machine learning technology, this system effectively addresses diverse complex scenarios. Whether detecting electromagnetic interference in urban building clusters or filtering environmental noise during severe weather conditions, it achieves precise signal filtering while significantly enhancing detection accuracy for "low, small, slow" targets.

Efficient scanning and flexible coverage

The azimuth scanning design covers 0° to 360°, enabling comprehensive horizontal monitoring without blind spots. The elevation scanning range spans 0° to 30° with configurable vertical detection capabilities, allowing adjustment of detection zones according to operational requirements. This dual configuration accommodates both low-altitude targets and mid-to-high altitude surveillance, delivering significantly higher scanning efficiency and coverage flexibility compared to traditional radar systems.

Stable operation all day

The equipment has strong environmental adaptability, and the working temperature range covers-40℃~+55℃. No matter in the severe winter, high temperature summer, or bad weather such as rain, snow, haze, it can maintain stable working state and ensure that the detection task is not interrupted.

Lightweight and Easy Deployment

The device weighs no more than 50kg with dimensions of 530mm×650mm×250mm. Its compact size and lightweight design eliminate the need for complex heavy-duty installation equipment. Powered by standard AC220V power supply and equipped with network interface ports, it simplifies power connection and data transmission processes, enabling rapid field deployment and debugging.

Ⅲ. Qualification

Ⅳ. Selling Points

Superior Small Target Detection Capability

For RCS (Radar Cross Section) targets as small as 0.01m², the system achieves detection ranges ≥10km with blind spots ≤200m – a significant advantage over competitors. It effectively identifies small targets like drones and light aircraft that traditional radars struggle to detect, providing critical early warning support for low-altitude security

 High Precision & Timeliness

 Distance accuracy <10m, azimuth and pitch precision <0.4° enable precise target locking. With a 6-second update rate, it tracks real-time target movements and provides instant trajectory feedback, ensuring continuous monitoring of fast-moving targets and eliminating surveillance gaps caused by data delays.

Energy Efficiency & Reliability:

While delivering long-range, high-precision detection, the system consumes ≤1200W power – more energy-efficient than comparable radars. Its all-solid-state design significantly reduces mechanical failures, combined with a wide operating temperature range, ensures longer mean time between failures (MTBF) and enhanced reliability.

Versatile Application:

Featuring standardized power supply, interfaces, and installation solutions, it requires no special infrastructure. The system seamlessly adapts to diverse scenarios including airport security, port surveillance, large venue monitoring, and border defense. Whether for permanent fixed-point monitoring or emergency temporary deployments, it delivers flexible and extensive adaptability across multiple environments.
