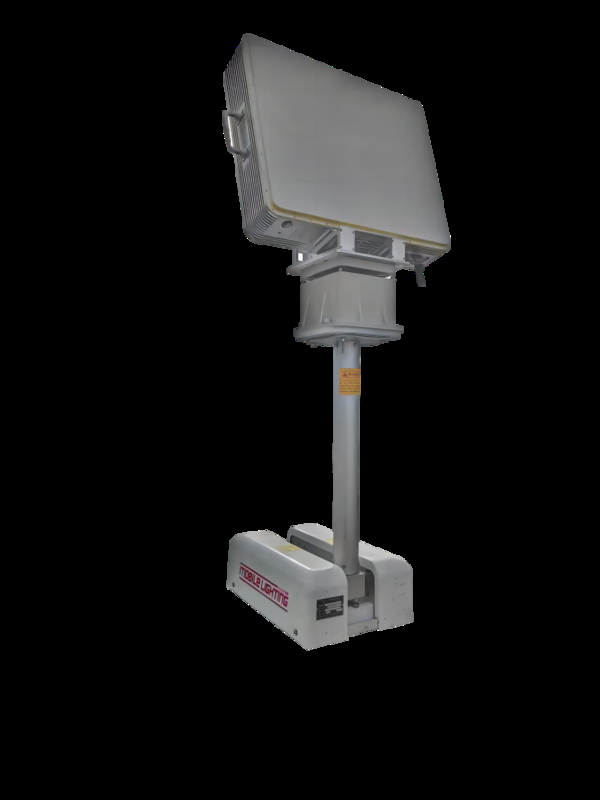

5km Ku-band One-dimensional AESA Phased Array Radar Simultaneously processing multiple batches

Name: 5km Ku-band One-dimensional AESA Phased Array Radar Simultaneously processing multiple batches
Brand: Chongqing Leikan Technology Co., Ltd
SKU: LKXR-KD107
Availability: InStock

Product Details:

Brand Name:	Lei Kan
Model Number:	LKXR-KD107

Detail Information

Brand Name:

Lei Kan

Model Number:

LKXR-KD107

High Reliability All Solid State:

AESA Technology

Band:

Ku Band

Detection Range:

5km

Track It At The Same Time:

≥100 Batches

Highlight:

High Light

Highlight:

Ku-band phased array radar

5km range AESA radar

multi-batch processing phased array radar

Trading Information

Minimum Order Quantity:

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

Ⅰ. Overview

The one-dimensional AESA phased array with Ku-band and azimuth machine scanning system can realize three-dimensional airspace detection of 360° azimuth and 0°-45° pitch, and can process more than 100 batches of low-altitude targets at the same time.

Ⅱ. Highlights

1. AESA solid-state architecture

2. 5 km detection on 0.01 m² drones

3. 45° elevation scan adapts to rugged terrain

3. 27 kg single unit, rapid set-up

Ⅲ. Specifications

Parameter	Value
Radar type	Elevation AESA + Azimuth mechanical
Band	Ku
Coverage	Az 360° El 0-45°
Scan rate	60°/s
Range (Pd=0.8)	5 km (0.01 m²)
Blind range	≤200 m
Range res./acc.	10 m / ≤4 m
Az accuracy	≤0.5°
El accuracy	≤0.5°
Vel. accuracy	≤1 m/s
Radial velocity	0.8–40 m/s
Max tracks	≥100
TX power	160 W
Size/Weight	590×475×126 mm / 27 kg

Ⅳ. Features

1. High reliability solid-state modules

2. Advanced clutter suppression for urban use

3. Fast elevation scan for high data rate
