3km Ku-band Low Altitude Warning Radar Processing Over 100 batches

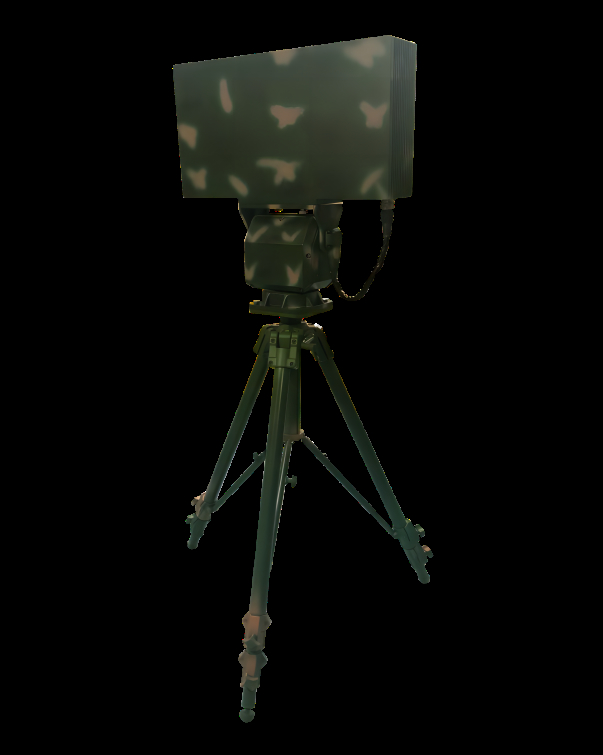

Name: 3km Ku-band Low Altitude Warning Radar Processing Over 100 batches
Brand: Chongqing Leikan Technology Co., Ltd
SKU: LKXR-KD106
Availability: InStock

Product Details:

Brand Name:	Lei Kan
Model Number:	LKXR-KD106

Detail Information

Brand Name:

Lei Kan

Model Number:

LKXR-KD106

Working Frequency Band:

Ku Band

Antenna Rotation Speed:

30°s Or 60°s

Keep Track Of The Number Of Targets:

≥100 Batches

Rapid Erection:

The Whole Machine Is Less Than 29 Kg, Which Can Be Carried By A Single Soldier

Highlight:

High Light

Highlight:

Ku-band low altitude radar

3km range low altitude radar

low altitude warning radar with warranty

Trading Information

Minimum Order Quantity:

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

Ⅰ. Overview

The LKXR-KD106 is a Ku-band low-altitude surveillance radar using azimuth mechanical scan plus elevation frequency scan to achieve 360° coverage at low cost.

Ⅱ. Highlights

1. ≥3 km detection on 0.01 m² RCS drones

2. Frequency-scan elevation cuts cost vs. phased array

3. Man-packable ≤29 kg total weight

4. ≤10 m range accuracy for fire-control cueing

Ⅲ. Specifications

Parameter	Value
Radar type	Azimuth mechanical + elev. freq-scan
Frequency band	Ku-band
Coverage	Azimuth 360°; Elevation 0-40°
Antenna speed	30°/s or 60°/s
Detection range (Pd=0.8)	≥3 km (RCS=0.01 m²)
Blind range	150 m
Range resolution / accuracy	≤15 m / ≤10 m
Azimuth resolution / accuracy	≤2.5° / ≤0.5°
Elevation resolution / accuracy	≤10° / ≤1°
Velocity accuracy	1 m/s
Target radial velocity	1.5–80 m/s
Max tracked targets	≥100
Transmit power	80 W
Front-end size & weight	610×650×120 mm; ≤17 kg
Servo weight	≤12 kg
