Ⅰ. Overview

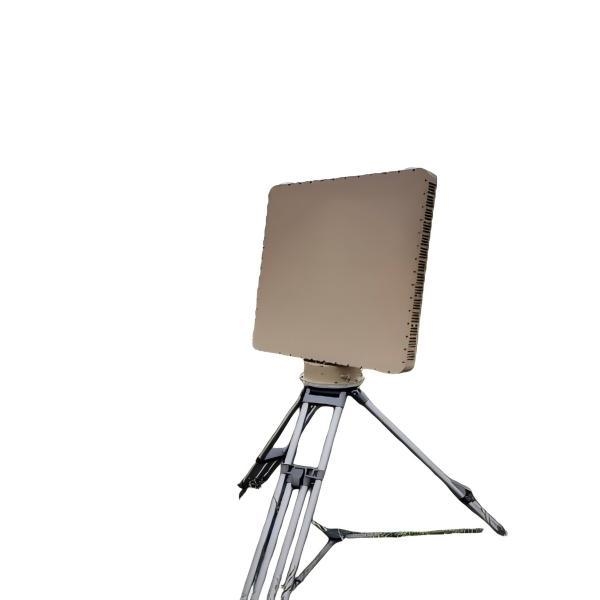

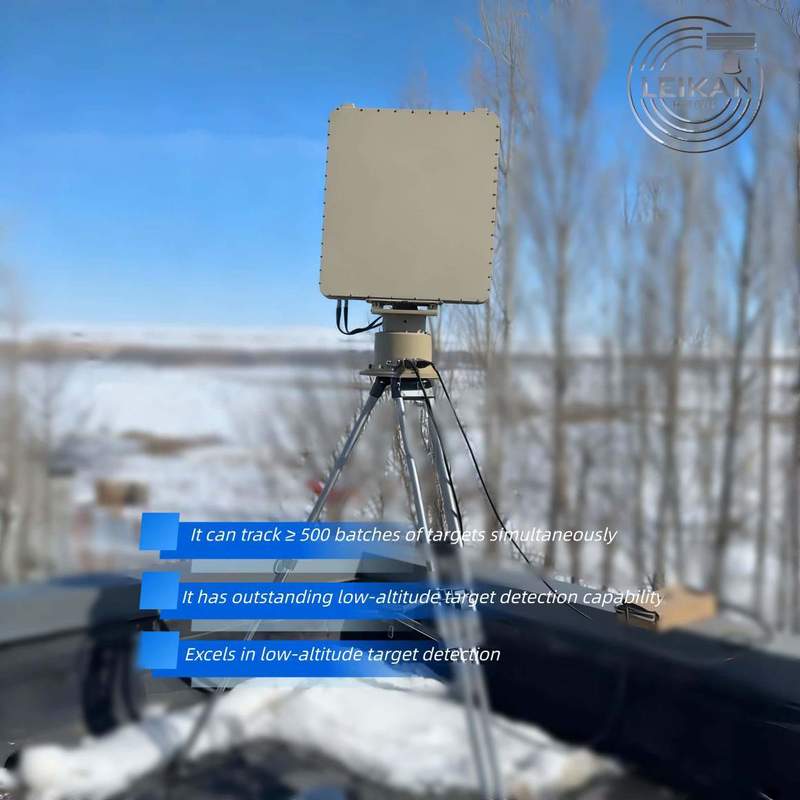

LRXR-XD120 is an X-band Digital Beam Forming (DBF) radar that provides 360°×60° wide-area detection and tracking of more than 500 drones, personnel, vehicles and maritime targets simultaneously. With ultra-low false-alarm clutter rejection and real-time HD data/video links, it is ideal for border, coastal, urban and battlefield environments.
Ⅱ. Highlights
• Long-range detection: ≥10 km for small quadcopters, ≥20 km for medium fixed-wing UAVs
• High-capacity tracking: 500 simultaneous targets with ≤2 s update rate
• 360°×60° no-blind-zone coverage: –3° to +60° elevation, full azimuth
• High accuracy: ≤0.3° RMS angle, ≤5 m RMS range
• All-weather ready: IP67, –40 °C to +55 °C, rain, snow, dust, fog tolerant
Ⅲ. Specifications
|
Parameter
|
Value
|
|
Frequency band
|
X-band 9.8–10 GHz
|
|
Elevation / Azimuth
|
–3°–60° / 0–360°
|
|
Detection range
|
≥10 km (quadcopter 0.01 m²)
|
|
|
≥20 km (medium fixed-wing 1 m²)
|
|
Max altitude
|
≥3 000 m
|
|
Blind zone
|
≤50 m
|
|
Range/Angle accuracy
|
≤5 m (RMS) / ≤0.3° (RMS)
|
|
Simultaneous tracks
|
≥500
|
|
Tracking speed
|
1–150 m/s
|
|
Antenna rotation
|
30 rpm (upgradeable 60 rpm)
|
|
Data interface
|
Gigabit Ethernet UDP
|
|
Environmental
|
–40 °C to +55 °C
IP65 (main unit IP67)
|
|
Power consumption
|
≤400 W
|
|
Weight
|
≤55 kg
|
|
Dimensions
|
650 × 815 × 93 mm
|
|
Transmit power
|
≤50 W
|
Ⅳ. Features
• DBF + adaptive clutter suppression → near-zero false alarms
• Radar-EO fusion auto-cues cameras for video tracking, recording & snapshots
• Plug-and-play multi-radar networking via Gigabit Ethernet
• Modular design allows 10 min field maintenance or LRU swap
• Low power <400 W; battery, vehicle or fixed-site power options
