Ⅰ. Product Overview

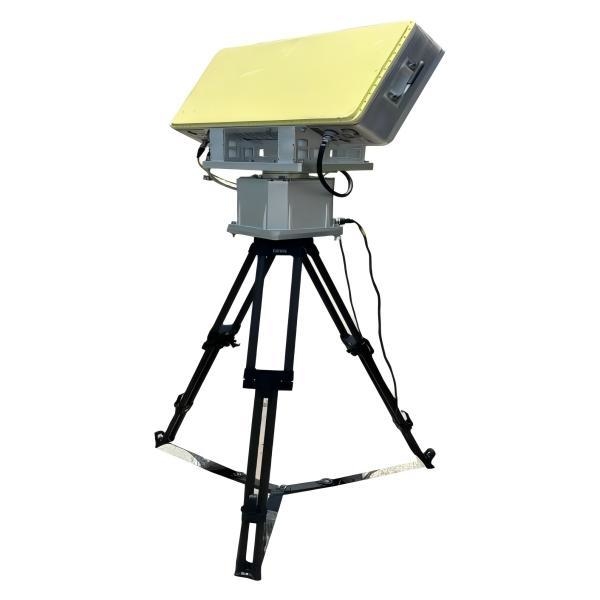

The LKXR-XD107 is an X-band low-altitude surveillance radar that combines a one-dimensional AESA elevation scan with 360° mechanical azimuth rotation. It detects, locates and tracks ground-moving targets, low-flying helicopters, UAVs and surface vessels—even in heavy ground-clutter environments—providing real-time target data to operators.
Ⅱ. Key Selling Points
• Long-range “low-slow-small” detection: ≥5 km on 0.01 m² drones, ≥12 km on 1 m² targets
• 200+ simultaneous tracks with high update rate
• Wide elevation coverage (−10°–40°) with adjustable tilt for diverse terrain
• Robust anti-clutter algorithms ensure reliable operation in urban, coastal and mountainous areas
• Compact and lightweight: total system ≤52 kg, deployable by two soldiers in <15 min
Ⅲ. Specifications
|
Parameter
|
Value
|
|
Radar Type
|
1-D AESA (elevation) + mechanical azimuth scan
|
|
Frequency Band
|
X-band
|
|
Azimuth Coverage
|
0–360°
|
|
Elevation Coverage
|
−10°–40° (electronic scan ±60° design)
|
|
Antenna Rotation Speed
|
12 rpm / 15 rpm selectable
|
|
Detection Range (Pd=0.8
|
Pfa=10⁻⁶)
≥5 km (0.01 m²) / ≥10 km (0.1 m²) / ≥12 km (1 m²)
|
|
Blind Range
|
180 m
|
|
Range Resolution / Accuracy
|
10 m / ≤5 m RMS
|
|
Azimuth Resolution / Accuracy
|
3° / ≤0.5° RMS
|
|
Elevation Resolution / Accuracy
|
7° / ≤0.5° RMS
|
|
Velocity Accuracy
|
≤0.4 m/s
|
|
Target Radial Velocity
|
1–80 m/s
|
|
Max Simultaneous Tracks
|
≥200
|
|
Transmit Power
|
160 W
|
|
Front-end Size
|
700 × 385 × 160 mm
|
|
System Weight
|
≤30 kg (front-end) + ≤22 kg (pedestal)
|
Ⅳ. Product Features
• AESA + mechanical hybrid scan delivers full-circle coverage without blind zones
• High-precision measurement: range ≤5 m RMS, azimuth/elevation ≤0.5° RMS
• Built-in self-test and fault isolation down to LRU
• All-solid-state transmitter for high MTBF and low maintenance
• IP65-rated electronics withstand harsh environments (−40 °C to +55 °C, 95 % RH)
