X band 40 kg micro blind spot 3D electronic fence phased array radar

Name: X band 40 kg micro blind spot 3D electronic fence phased array radar
Brand: Chongqing Leikan Technology Co., Ltd
SKU: LKXR-RD110
Availability: InStock

Product Details:

Brand Name:	Lei Kan
Model Number:	LKXR-RD110

Detail Information

Brand Name:

Lei Kan

Model Number:

LKXR-RD110

Frequency Band:

X Band

Detection Range:

1.5 KM

Accuracy:

Range ≤10 M; Az ≤1.2°; El ≤1.2°

Data Refresh:

Search ≤3 S; TAS ≤0.5 S

3-D Electronic Fence:

0–60° Elevation Electronic Scan, Azimuth ±45° Or Full 360° Options

AI Fast Brain:

Intelligent Recognition Self-developed Technology

Highlight:

High Light

Highlight:

X band phased array radar

40 kg micro blind spot radar

low altitude 3D electronic fence radar

Trading Information

Minimum Order Quantity:

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

Product Overview

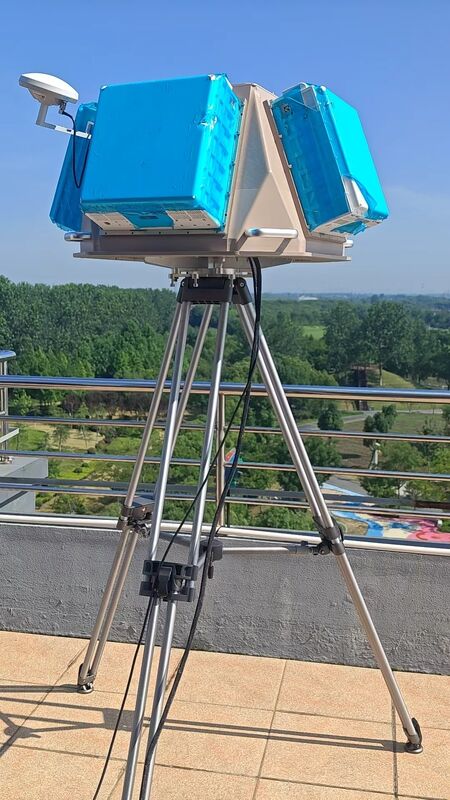

The LKXR-RD110 family is a new generation of X-band, short-range radars purpose-built for the “last line of defense." By combining solid-state amplifiers, fully coherent pulse-Doppler processing and on-board AI inference, the radar can spot a 0.01 m² micro-UAV 1.5 km away—even in rain, fog or dense urban clutter. Three mechanical variants—fixed single-panel, single-panel on turntable, or four-panel array—let users scale from a narrow alley to a wide airport apron.

Product Features

Micro-gap radar: blind zone ≤80 m—targets cannot sneak in under the nose.
3-D electronic fence: 0–60° elevation electronic scan, azimuth ±45° or full 360° options; no airspace left unchecked.
AI on the edge: neural network delivers object type and trajectory in 0.5 s at 2 Hz refresh.
LEGO-style scaling: the 8 kg single-panel slips into a backpack; the 40 kg four-panel guards an entire perimeter.
Plug-and-play: one RJ45 and a RESTful API handshake with EO/IR or jammers in 15 minutes.
Always on duty: ‑40 °C frozen soil to +55 °C desert, IP66-rated, 24/7 operation.

Qualification

Parameter	110A	110B	110C
Frequency	X-band
Installation	Fixed single-panel	Single-panel+Turntable	4-panel array
Detection range	≥1.5 km (RCS=0.01 m²)
Blind zone	≤80 m
Coverage	Az ±45° El 0–60°	Az 360° El 0–60° Az 360° El 0–60°
Velocity range	1–100 m/s	1–100 m/s	1–100 m/s
Accuracy	Range ≤10 m; Az ≤1.2°; El ≤1.2°
Data refresh	Search ≤3 s; TAS ≤0.5 s
Interface	Gigabit Ethernet
Weight	≤8 kg	≤20 kg	≤40 kg
Power supply	DC 24 V / AC 220 V
Power consumption	≤140 W	≤170 W	≤560 W
Dimensions	≤180240100 mm	≤500240200 mm	≤600600200 mm
Operating temp.	-40 °C to +55 °C

Selling Points

Deploy in 5 minutes—faster than pitching a tent.
8 kg soldier-carry version—lighter than a case of bottled water.
1.5 km vs 0.01 m² drone—longest reach in its size class.
0.5 s TAS refresh—gives effectors a golden interception window.
Order one or stack many—budget-friendly today, limitless tomorrowXR-RD10
