Pulse Doppler Long distance detection Phased Array Radar Multi-beam technology
I. Product Description

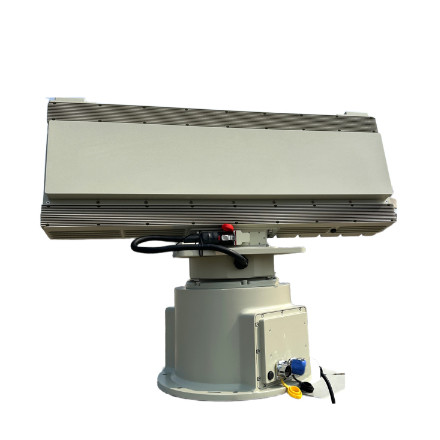

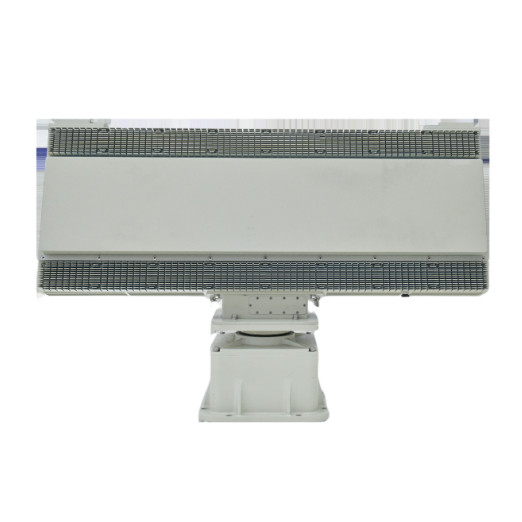

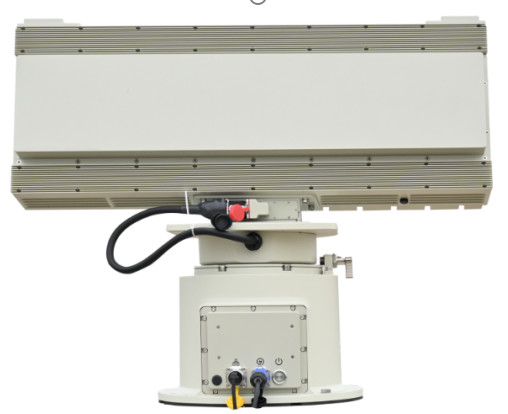

Comprising one radar array, one mechanical rotary platform, and one power adapter, this radar is designed for the detection, alerting, and target indication of micro/small civilian drones in key areas such as borders, perimeters, airports, and military bases. It can accurately provide the target's azimuth, distance, altitude, and velocity information.
II. Features
1. Capable of inertia-free rapid scanning with high data rates
2. Utilizes advanced active phased array technology to enhance radar detection performance and output three-coordinate target information.
3. Large target capacity allows simultaneous monitoring and tracking of multiple targets within the airspace.
4. High reliability ensures normal operation even if a small number of components fail.
5. Capable of operating in all-weather and all-time conditions, including night, rain, snow, fog, and dusty environments.
III. Functions
|
Long-distance Startup
|
Supports remote power on and off functions
|
|
Positioning and Orientation
|
It has positioning and orientation functions
|
|
Outgoing Message
|
Supports access to information such as distance, speed, and Angle of the detected object
|
|
Multiple Target Tracking
|
Supports multi-target tracking switching logic
|
|
Target Fusion Processing Function
|
Supports multi-sensor data fusion processing
|
|
Defense Zone Management
|
The zone can be set flexibly and accurately positioned, and the intrusion alarm can be triggered
|
|
Capacity Of Resisting Disturbance
|
trajectory interference can effectively filter false alarms caused by clutter through the sensitivity and abnormal trajectory filtering functions
|
|
Online Monitoring Function
|
It has online/offline alarm function for the equipment
|
|
Self Checking Function
|
The equipment has online self-test function
|
|
Adaptive Processing Capability
|
It has the ability of adaptive clutter processing with moving target
|
|
Linked Functions
|
Automatic tracking mode, Radar tracking mode, Image tracking mode
|
|
Multi-site Network Coverage
|
It has the function of networking multiple devices; it has the ability of multi-site collaborative detection; and it has the ability of near-site fault blindness
|
IV. Specifications
|
Working System
|
Active digital phased array (azimuth and pitch scanning) / pulsed Doppler
|
|
Operating Frequency Band
|
X-band frequency
|
|
Effective detection range
|
100m~5.0km (drone RCS≥0.01㎡)
|
|
Upward Angle Coverage
|
40°
|
|
Direction Coverage
|
360°
|
|
Detection Speed
|
1.8km/h～270km/h
|
|
Operating Temperature
|
-40℃～+55℃
|
|
Direction Accuracy
|
≤ 0.5 °(search) ≤ 0.3° (tracking)
|
|
Range Accuracy
|
≤10m
|
|
Data Rate
|
≥0.2Hz
|
|
Data Interface
|
RJ45/1 lane Fast Ethernet
|
|
Power input
|
≤350W (power consumption) AC200-AC240 (input)
|
|
Weight
|
Less than 48kg
|
|
Pitch accuracy
|
≤1.0° (search) ≤0.5° (tracking)
|
V. Product Size
VI. Competitive Advantages
1. Rapid response, high precision, and multi-tasking capabilities.
2. High precision and sensitivity for accurate measurement in various meteorological conditions.
3. Fast reaction and high data rate.
4. Strong anti-interference performance and adaptability to complex target environments.
5. Inertia-free rapid scanning reduces the time required for target signal detection, acquisition, and information transmission.
