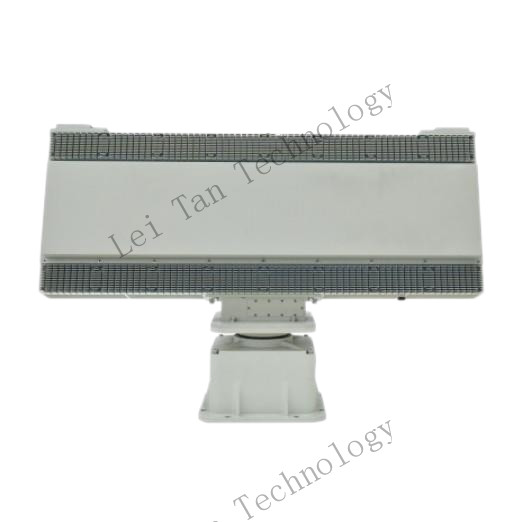

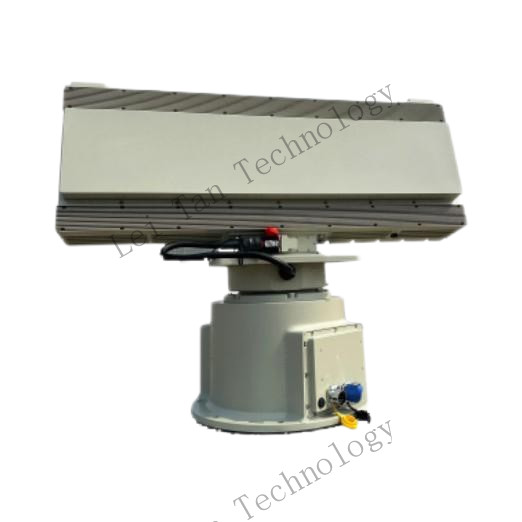

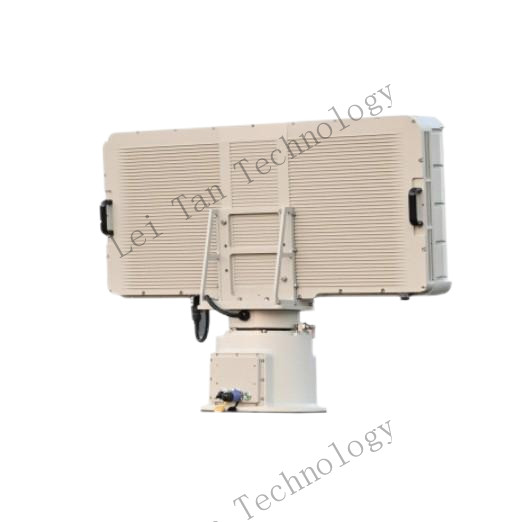

Active Electronically Scanned Array UAV Detection Radar For Drone Identification
Ⅰ.Product Description
Adaptive Beam forming Airspace Monitoring Sensor for Robotic UAS Tracking represents a next-generation perimeter security apparatus engineered to autonomously recognize, classify, and geolocate compact consumer-grade unmanned aerial vehicles in strategic environments like restricted airspaces, defense complexes, aviation facilities, and demarcation zones. The framework delivers real-time 3D kinematic data comprising target horizontal orientation, radial displacement, vertical position, and vector velocity metrics. This architecture incorporates an agile multi-element antenna grid, an electromechanical pan-tilt positioning unit, and a regulated energy supply subsystem, forming an integrated counter-drone observation network.
Ⅱ. Product Features
High Real-time and High Precision: It maintains high-precision tracking of distant targets, offering effective judgment basis for border guards.
Strong Environmental Adaptability: It is capable of working in all-weather and all-time conditions, including night, rain, snow, fog, and dusty environments.
High Flexibility: It is easy to set up and can detect targets at long distances.
DBF Technology: The Digital Beam Forming (DBF) technology allows the emission of multiple beams, enhancing anti-jamming capabilities.
Phased Array System: It adopts an advanced active phased array system, which improves radar detection performance and can output three-coordinate information of the target.
High Cost-effectiveness: Through continuous product refinement, it achieves a perfect combination of reliability, usability, and economy while ensuring detection performance.
Ⅲ.Product Functions
|
Remote control
|
Supports remote on/off function
|
|
Positioning and orientation
|
Has positioning and orientation functions
|
|
Information output
|
Supports obtaining information such as the distance, speed, and angle of the detected object
|
|
Multi-target tracking
|
Supports multi-target tracking switching logic; can track all trajectories of multiple targets in real time
|
|
Target fusion processing function
|
Supports multi-sensor data fusion processing function
|
|
Defense zone management
|
Can flexibly set defense zones, accurately locate, and trigger intrusion alarms.
|
|
Anti-interference ability
|
Has online adjustment capabilities for detection sensitivity/speed range, and the ability to filter abnormal trajectory interference. Through sensitivity and abnormal trajectory filtering functions, it can effectively filter out false alarms caused by clutter
|
|
Online monitoring function
|
Has functions for monitoring working status and fault alarms; has equipment offline alarm function
|
|
Remote monitoring status
|
Has remote monitoring capabilities, can report equipment status in real time; has equipment online/offline alarm function
|
|
Online self-inspection function
|
The equipment has an online self-inspection function
|
|
Adaptive processing capability
|
Has moving target adaptive clutter processing capability and adaptive clutter map processing capability
|
|
Linkage function
|
Has radar pan-tilt linkage function, target tracking and capture for evidence (automatic tracking mode, radar tracking mode, image tracking mode)
|
|
Multi-site networking for blind spot filling
|
Has functions for networking of multiple devices; has capabilities for multi-site collaborative detection; has capabilities for blind spot filling in case of adjacent site failures
|
Ⅳ.Product Parameters
|
Working system
|
Active digital phased array (azimuth mechanical scanning + elevation electronic scanning)/pulse Doppler.
|
|
Working frequency band
|
X band
|
|
Effective detection range
|
100m～5.0km (drone RCS≥0.01㎡).
|
|
Azimuth coverage
|
360°
|
|
Elevation coverage
|
40°
|
|
Detection speed
|
1.8km/h～270km/h
|
|
Azimuth accuracy
|
≤0.5°(search)≤0.3°(tracking)
|
|
Elevation accuracy
|
≤1.0°(search)≤0.5°(tracking).
|
|
Range accuracy
|
≤10m
|
|
Data rate
|
≥0.2Hz.
|
|
Data interface
|
RJ45/1 100Mbps Ethernet
|
|
Power input
|
≤350W (power consumption) AC200-AC240 (input)
|
|
Working temperature
|
- 40℃～ + 55℃.
|
|
Weight
|
≤48kg (whole machine).
|
