Anti-Jamming Capability Adaptive Clutter Filtering UAV Detection Radar for Clean Signals
Ⅰ.Product Description

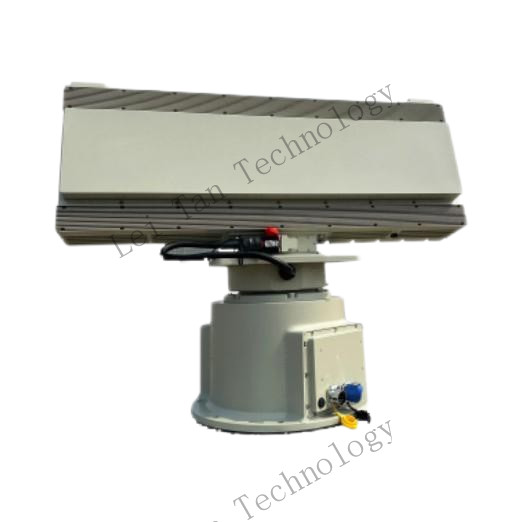

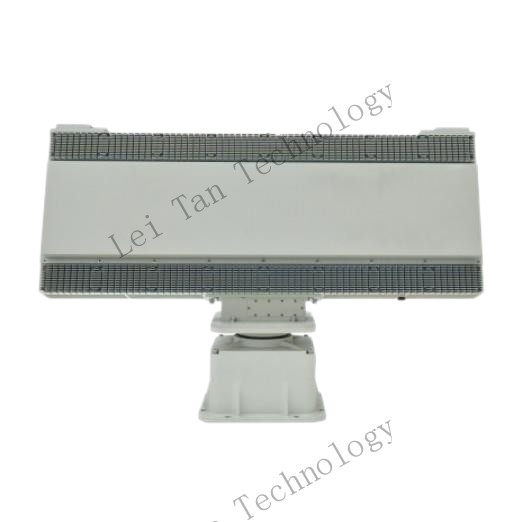

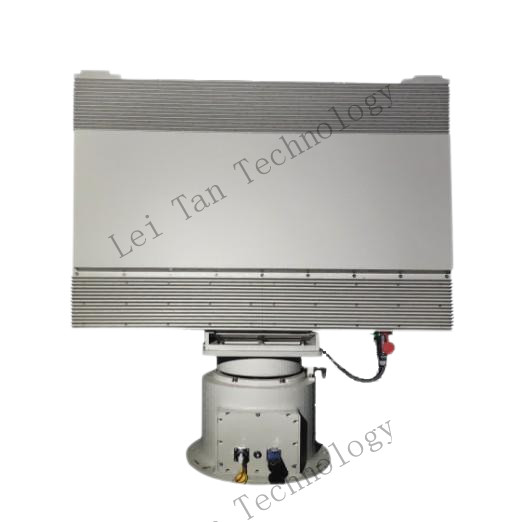

The Radar Electronically Scanned Array Radar is a state-of-the-art detection and tracking system specifically designed for the identification and monitoring of micro and small civilian unmanned aerial vehicles (UAVs) in critical areas such as borders, perimeters, airports, and military bases. This radar system is composed of a radar array, a mechanical rotating platform, and a power adapter. It is capable of providing accurate trajectory information of targets, including their azimuth, range, altitude, and velocity. By leveraging advanced radar technologies, the Radar ensures reliable and efficient UAV detection and tracking in various operational environments.
Ⅱ.Product Features
High Real-time and High Precision: The radar maintains high-precision tracking of distant targets, offering border guards and security personnel reliable information for effective decision-making.
Strong Environmental Adaptability: It is designed to operate around the clock and in all weather conditions, including night, rain, snow, fog, and dust, ensuring continuous monitoring without interruption.
High Flexibility: The radar is capable of detecting targets at long ranges and is easy to set up, making it suitable for a wide range of deployment scenarios.
DBF Technology: The use of Digital Beamforming (DBF) technology allows the radar to emit multiple beams, significantly enhancing its anti-jamming capabilities.
Phased Array System: The radar employs an advanced active phased array system, which not only improves detection performance but also provides three-dimensional coordinate information of targets.
High Cost-effectiveness: Through continuous product optimization, the radar achieves a perfect balance between detection performance, reliability, usability, and cost, making it an economically viable solution for UAV detection and tracking.
Ⅲ.Product Functions
|
Remote control
|
Supports remote on/off function
|
|
Positioning and orientation
|
Has positioning and orientation functions
|
|
Information output
|
Supports obtaining information such as the distance, speed, and angle of the detected object
|
|
Multi-target tracking
|
Supports multi-target tracking switching logic; can track all trajectories of multiple targets in real time
|
|
Target fusion processing function
|
Supports multi-sensor data fusion processing function
|
|
Defense zone management
|
Can flexibly set defense zones, accurately locate, and trigger intrusion alarms.
|
|
Anti-interference ability
|
Has online adjustment capabilities for detection sensitivity/speed range, and the ability to filter abnormal trajectory interference. Through sensitivity and abnormal trajectory filtering functions, it can effectively filter out false alarms caused by clutter
|
|
Online monitoring function
|
Has functions for monitoring working status and fault alarms; has equipment offline alarm function
|
|
Remote monitoring status
|
Has remote monitoring capabilities, can report equipment status in real time; has equipment online/offline alarm function
|
|
Online self-inspection function
|
The equipment has an online self-inspection function
|
|
Adaptive processing capability
|
Has moving target adaptive clutter processing capability and adaptive clutter map processing capability
|
|
Linkage function
|
Has radar pan-tilt linkage function, target tracking and capture for evidence (automatic tracking mode, radar tracking mode, image tracking mode)
|
|
Multi-site networking for blind spot filling
|
Has functions for networking of multiple devices; has capabilities for multi-site collaborative detection; has capabilities for blind spot filling in case of adjacent site failures
|
Ⅳ.Product Specifications
|
Working system
|
Active digital phased array (azimuth mechanical scanning + elevation electronic scanning)/pulse Doppler.
|
|
Working frequency band
|
X band
|
|
Effective detection range
|
100m～5.0km (drone RCS≥0.01㎡).
|
|
Azimuth coverage
|
360°
|
|
Elevation coverage
|
40°
|
|
Detection speed
|
1.8km/h～270km/h
|
|
Azimuth accuracy
|
≤0.5°(search)≤0.3°(tracking)
|
|
Elevation accuracy
|
≤1.0°(search)≤0.5°(tracking).
|
|
Range accuracy
|
≤10m
|
|
Data rate
|
≥0.2Hz.
|
|
Data interface
|
RJ45/1 100Mbps Ethernet
|
|
Power input
|
≤350W (power consumption) AC200-AC240 (input)
|
|
Working temperature
|
- 40℃～ + 55℃.
|
|
Weight
|
≤48kg (whole machine).
|
