Critical Infrastructure Drone Countermeasures Phased Array Radar, All-weather Operation
I. Product Description

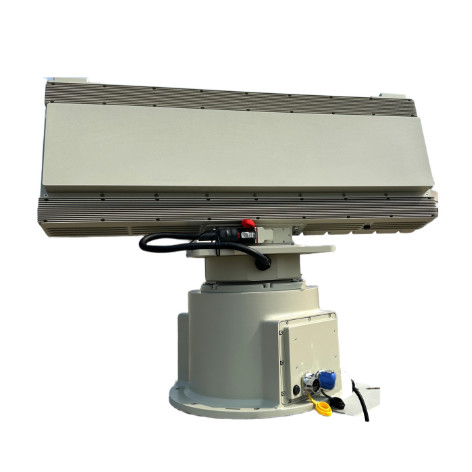

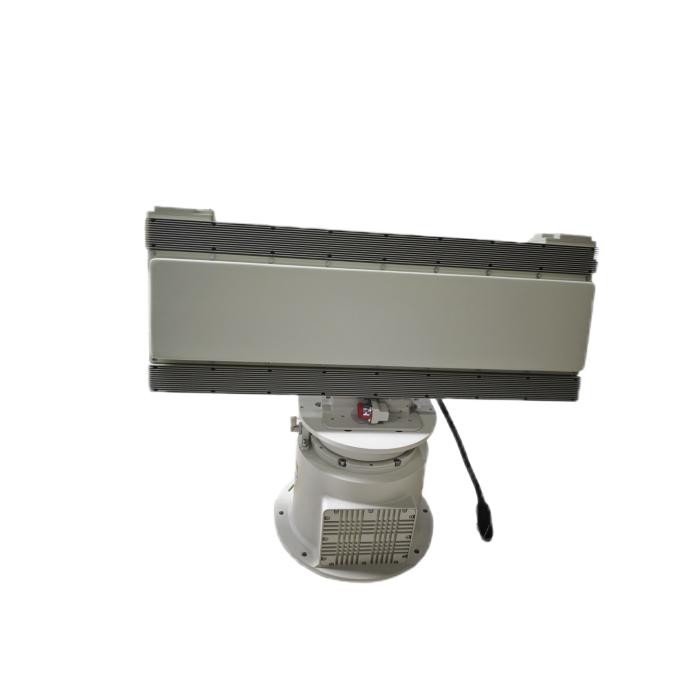

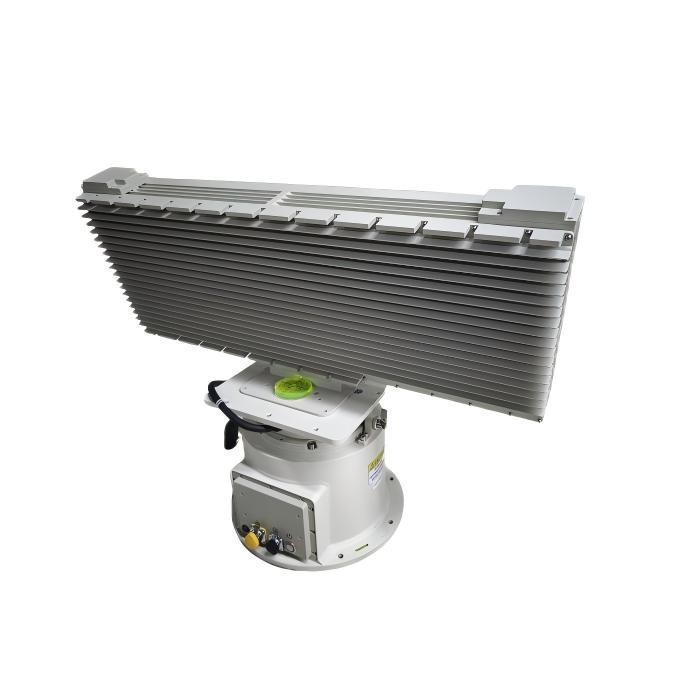

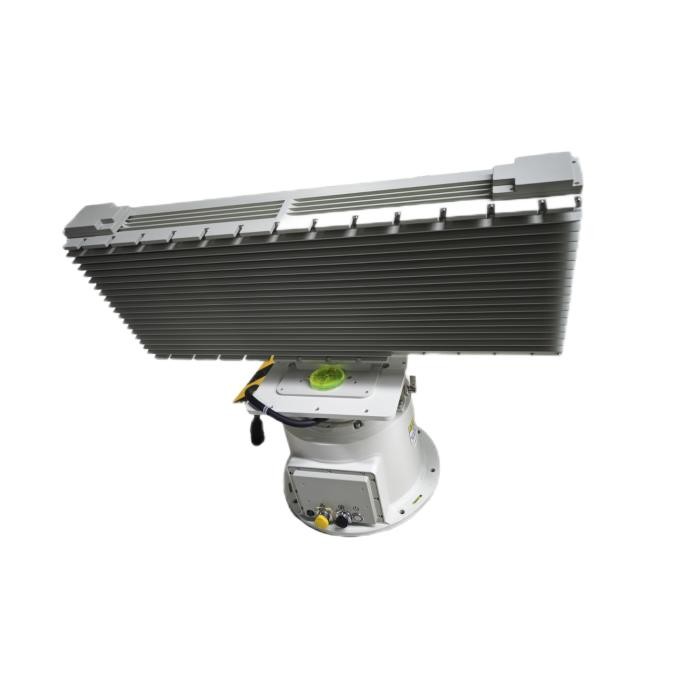

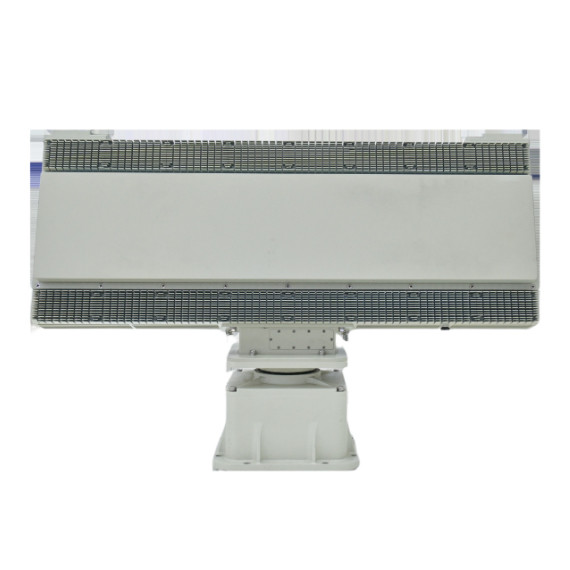

The system consists of a radar array, a mechanical turntable and a power adapter. It is mainly used in key areas such as borders, perimeters, airports and military bases to detect, alert and target small/miniature civilian drones. The system can accurately provide the target's azimuth, distance, altitude and speed information.
II. Function
1. Remote Control Function
support remote operation to achieve convenient remote control.
2. Information Detection Capability
the ability to detect and obtain key information about the target object.
3. Target tracking
the ability to track multiple target tracks in real time.
4. Data fusion processing
It supports multi-sensor data fusion processing and has target fusion function.
5. Zone Setting Function
Can flexibly set the zone, accurate positioning and trigger intrusion alarm.
6. Parameter Adjustment and Interference Filtering
It has the ability to adjust online according to detection sensitivity and speed range, and can filter abnormal trajectory interference to effectively reduce false alarm caused by clutter
7. Remote Status Monitoring and Alarm Function
Support remote monitoring function, real-time reporting of working status and fault alarm function, support offline alarm of equipment
8. Self-check Function
The equipment has online self-check function to ensure good running state
9. Radar clutter processing capability
it has adaptive radar clutter processing capability for moving targets and adaptive radar clutter map processing capability.
10. Linking and tracking function:
It has the radar pan-tilt linkage function.
11. Networking and collaboration capability
Supports networking of multiple devices, and near-site fault blind coverage capability.
III. characteristic
|
Fast scanning and efficient data transmission
|
The equipment has the ability of non-inertial fast scanning and high data transmission rate
|
|
Active phased array technology
|
The active phased array technology is adopted to significantly improve the radar detection performance and output the three-dimensional coordinate information of the target
|
|
Large target capacity
|
It can simultaneously monitor and track multiple targets in the airspace
|
|
High flexibility
|
Supports long distance detection targets and is easy to set up
|
|
All Weather Operations
|
It can operate normally in bad environment such as night, rain, snow, haze and dust
|
IV. Indicator Parameters
|
Working System
|
Active digital phased array (azimuth and pitch scanning) / pulsed Doppler
|
|
Working Frequency Band
|
X-band frequency
|
|
Effective Detection Power
|
100m~5.0km (drone RCS≥0.01㎡)
|
|
Full Coverage
|
40°
|
|
Upward Angle Coverage
|
360°
|
|
Detection Speed
|
1.8km/h～270km/h
|
|
Direction Accuracy
|
≤ 0.5 °(search) ≤ 0.3° (tracking)
|
|
Pitch Accuracy
|
≤1.0° (search) ≤0.5° (tracking)
|
|
Range Accuracy
|
≤10m
|
|
Data Rate
|
≥0.2Hz
|
|
Data Interface
|
RJ45/1 100M ethernet
|
|
Power Input
|
≤350W (power consumption) AC200-AC240 (input)
|
|
Working Temperature
|
-40℃～+55℃
|
|
Weight
|
≤ 48kg (whole machine)
|
V. Competitive Advantage
1. Quick response and efficient processing
Can efficiently complete complex tasks and adapt to a variety of application scenarios.
2. High precision and high sensitivity
Ensure the accuracy and reliability of data
3. Fast data transfer
Have a swift response,Improve the overall operating efficiency of the system
4.Strong anti-interference ability
Excellent anti-interference performance,It can run continuously in a disturbed environment.
5. No inertial fast scan
The fast scanning ability reduces the time of information transmission and improves the system response capability.
VI. Product Size
