High Precision Anti-interference Active Digital Phased Array Radar Is Not Affected By Weather
I. Product Description

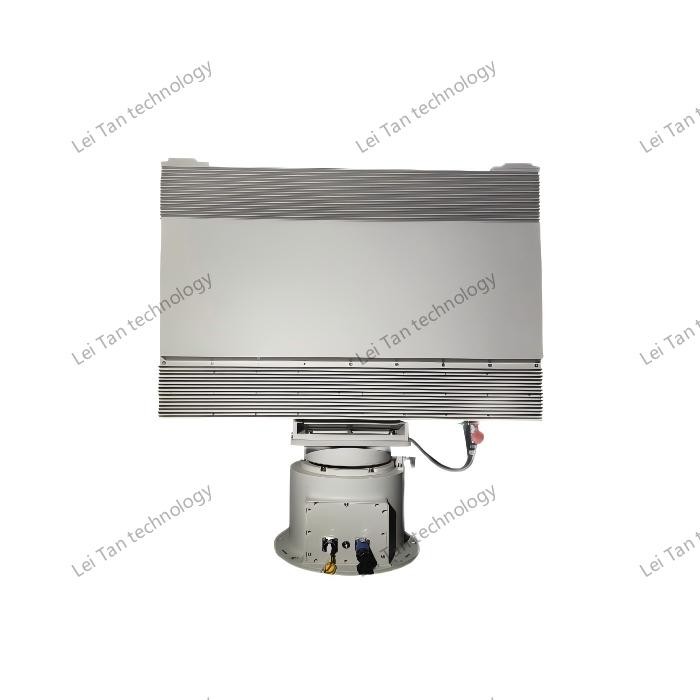

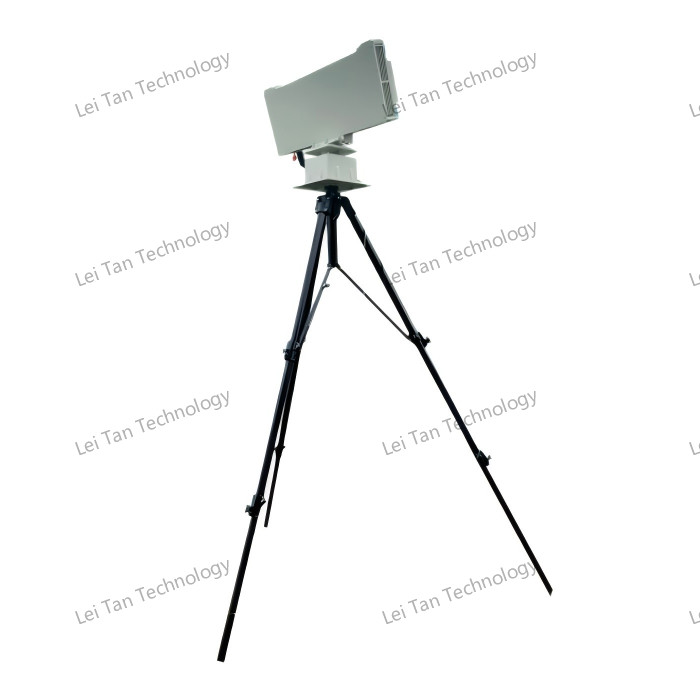

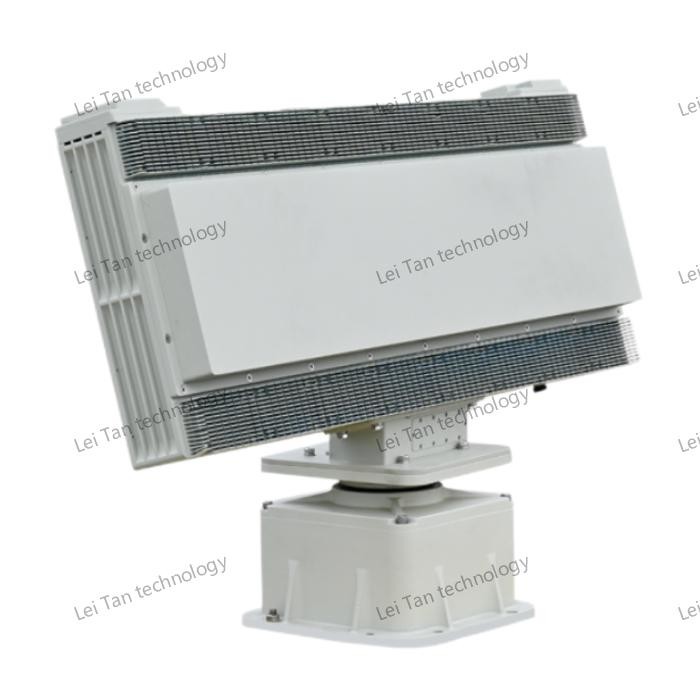

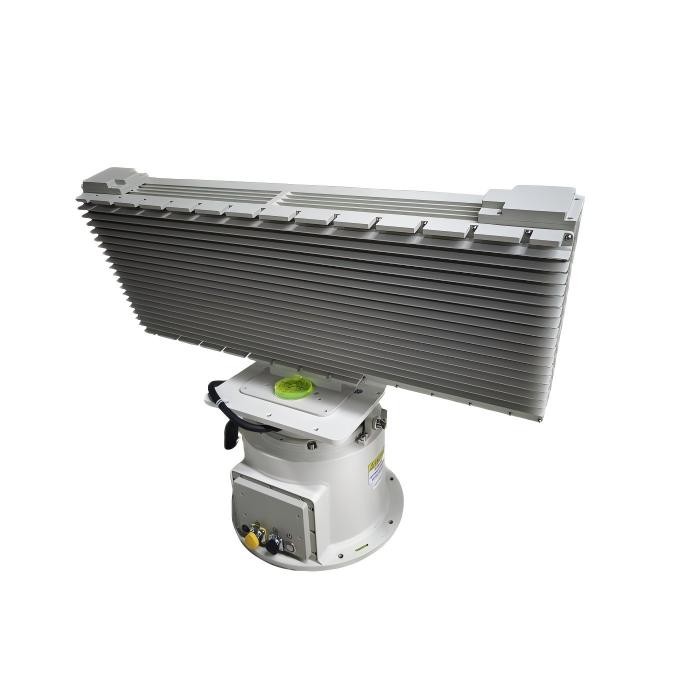

To address low-altitude safety issues and enhance the security of key areas such as borders, perimeters, airports, and bases, the system consists of a compact and efficient radar array, mechanical turntable, and power adapter, enabling flexible deployment in various complex environments. It is specifically designed for detecting, alerting, and indicating targets from micro/small civilian drones, providing accurate information on target position, distance, altitude, and speed. This offers comprehensive and precise monitoring data to security personnel, effectively enhancing the capability of low-altitude safety protection.
II. Features
1.High precision tracking capability, to provide users with reliable target data, help make decisions quickly, improve security efficiency.
2. The all-weather working ability ensures that the radar can operate normally in bad weather, reducing monitoring interruption caused by weather and reducing safety risks.
3. With long-distance detection and convenient erection features, it can quickly adapt to different application scenarios and reduce deployment costs and time.
4. High anti-interference capability, DBF technology ensures that the radar can work stably in complex environment, reduce false alarm, improve monitoring quality.
5. The advanced active phased array system not only improves the detection effect, but also can output more comprehensive target information, bringing higher monitoring value to users.
6. Through optimized design, the product achieves a balance between economy and reliability, saving cost for users.
III. Functions
|
Long-distance Startup
|
Supports remote power on and off functions
|
|
Positioning And Orientation
|
It has positioning and orientation functions
|
|
Outgoing Message
|
Supports access to information such as distance, speed, and Angle of the detected object
|
|
Multiple Target Tracking
|
Supports multi-target tracking switching logic
|
|
Target Fusion Processing Function
|
Supports multi-sensor data fusion processing
|
|
Defense Zone Management
|
The zone can be set flexibly and accurately positioned, and the intrusion alarm can be triggered
|
|
Capacity Of Resisting Disturbance
|
The online adjustment capability of detection sensitivity/speed range and the ability to filter abnormal trajectory interference can effectively filter false alarms caused by clutter through the sensitivity and abnormal trajectory filtering functions.
|
|
Online Monitoring Function
|
It has remote monitoring capability and can report the status of the equipment in real time; it has online/offline alarm function for the equipment.
|
|
Remote Monitoring Status
|
It has remote monitoring capability and can report the status of the equipment in real time; it has online/offline alarm function for the equipment.
|
|
Self Checking Function
|
The equipment has online self-test function
|
|
Adaptive Processing Capability
|
It has the ability of adaptive clutter processing for moving targets and adaptive clutter processing for clutter maps
|
|
Linked Functions
|
Equipped with radar and camera linkage function, the target can be tracked and captured for evidence
|
|
Multi-site Network Coverage
|
It has the function of networking multiple devices; it has the ability of multi-site collaborative detection; and it has the ability of near-site fault blindness.
|
IV. Specifications
|
Working System
|
Active digital phased array (azimuth and pitch scanning) / pulsed Doppler |
| Working frequency band |
X-band
|
|
Effective Detection Range
|
100m to 5.0km (for drones with RCS ≥ 0.01㎡)
|
|
Azimuth Coverage
|
360°, elevation angle 40°
|
|
Detection Speed
|
1.8km/h to 270km/h
|
|
Operating Temperature
|
-45℃ ～ +55℃
|
|
Storage Temperature
|
-45℃ ～ +65℃
|
|
Azimuth Accuracy
|
≤0.4°
|
|
Elevation Accuracy
|
≤0.5°
|
|
Range Accuracy
|
≤10m
|
|
Speed Accuracy
|
≤0.5m/s
|
|
Data Rate
|
≥0.5Hz (antenna rotation speed 30rpm)
|
|
Data Interface
|
RJ45/1 100Mbps Ethernet
|
|
Power Input
|
≤400W (consumption) AC200-AC240 (input)
|
|
Weight
|
≤77kg (entire unit)
|
V. Product Size
