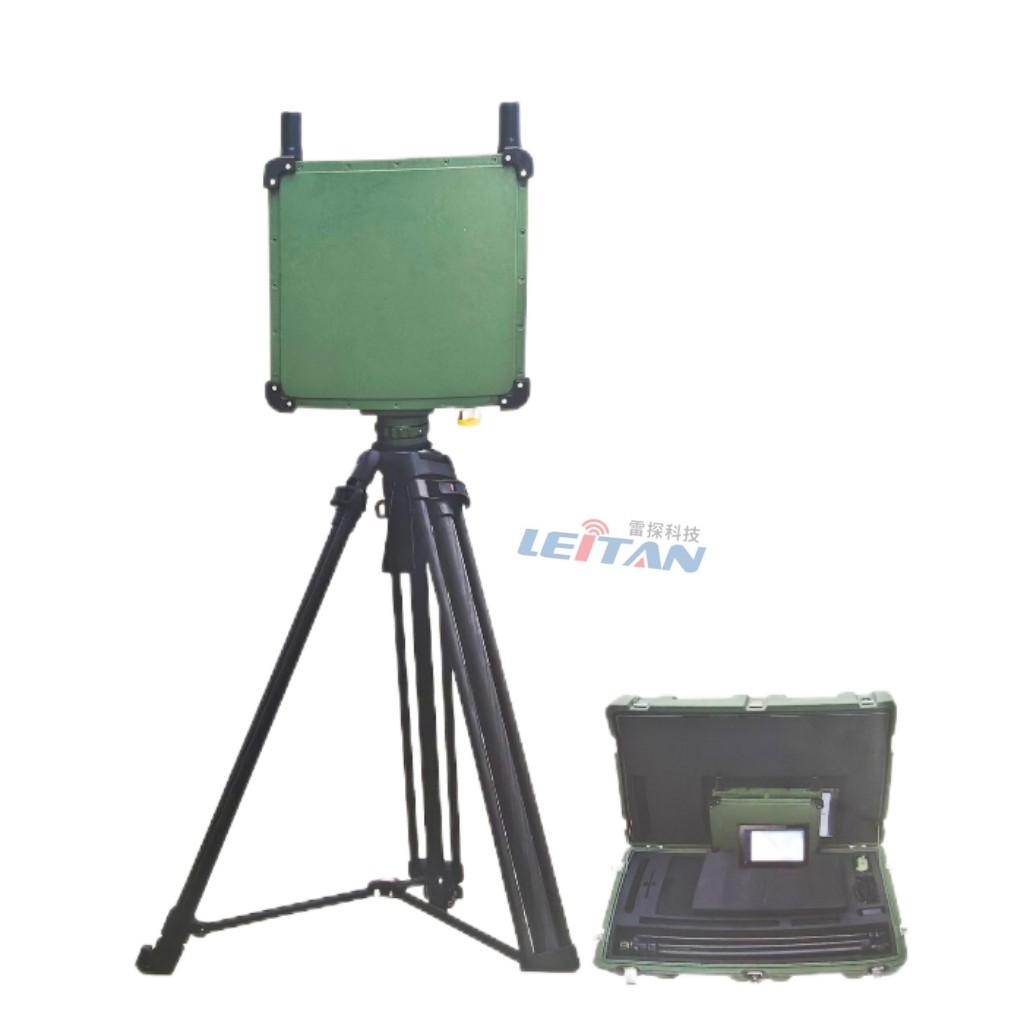

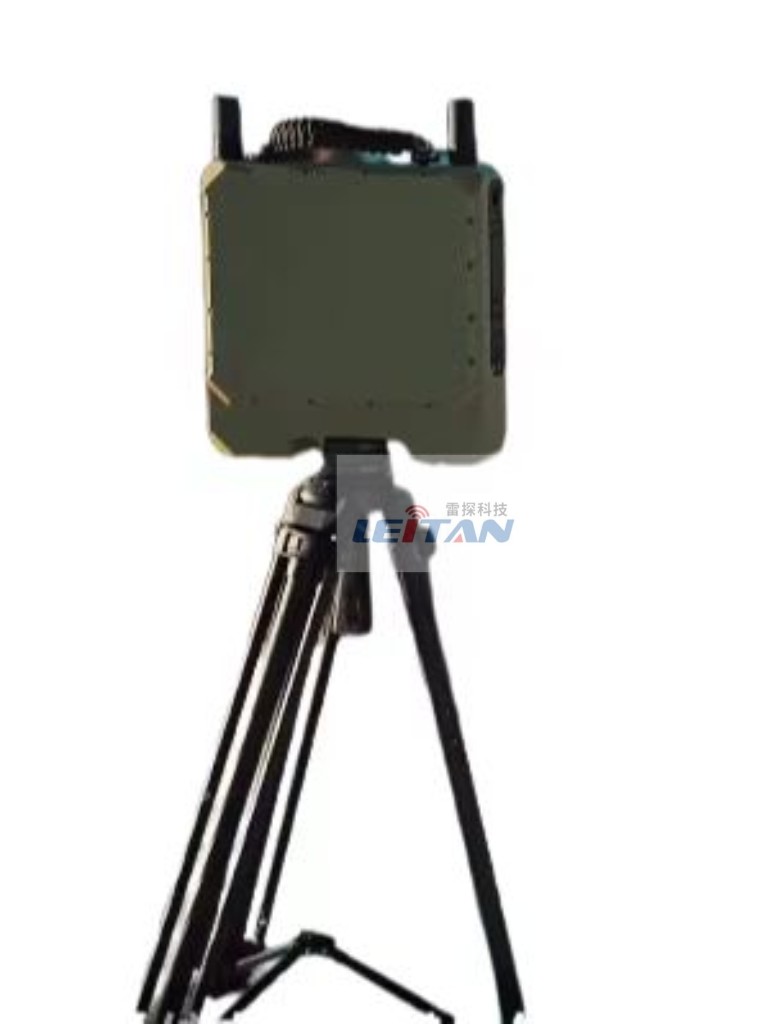

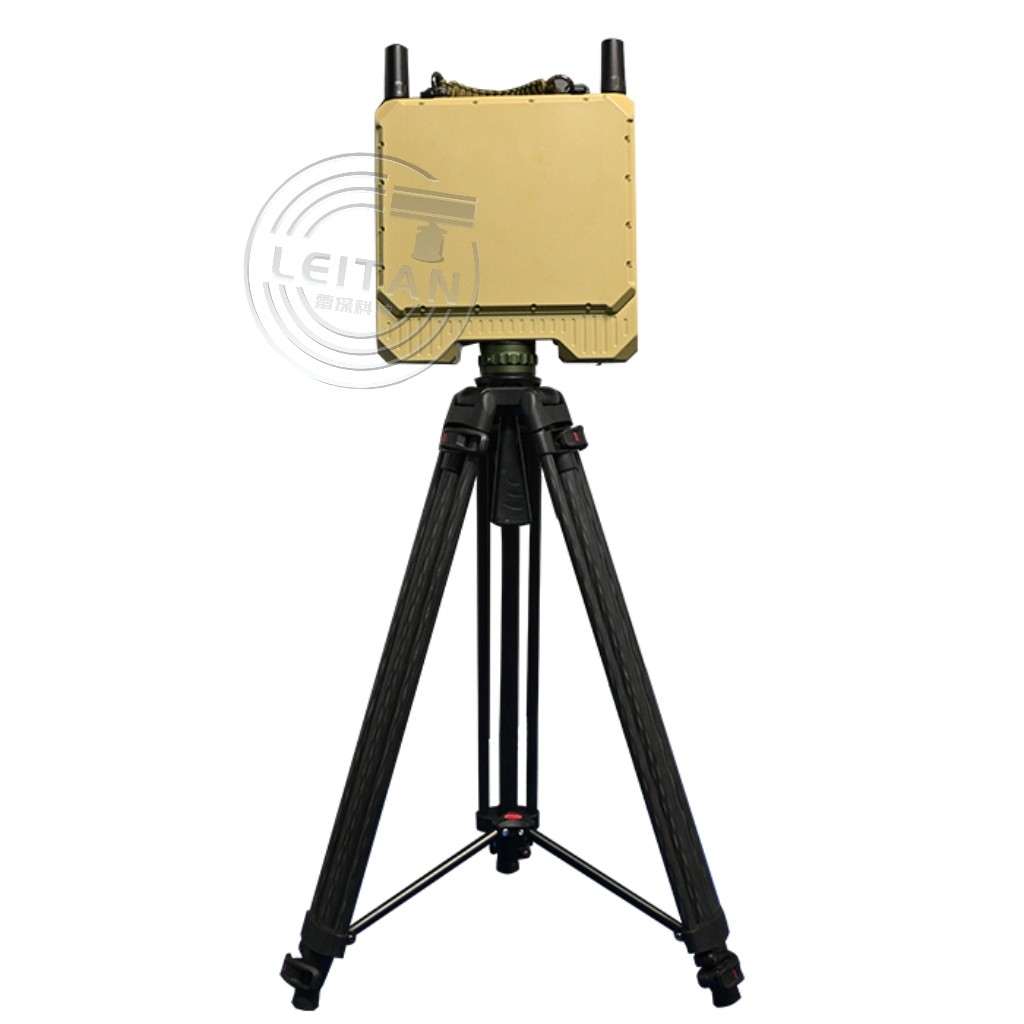

Electronic Sentry Single-Soldier Reconnaissance Alarm Radar Detection System
Ⅰ. Product Description
The Electronic Sentry Single Soldier Reconnaissance Alarm Radar Detection System is an advanced, portable surveillance solution designed for military, border security, and special operations forces. This cutting-edge system integrates high-precision radar technology with real-time detection and alarm capabilities, enabling a single soldier to monitor and secure large areas with minimal manpower.
Equipped with AI-powered signal processing and multi-sensor fusion, the system detects, tracks, and classifies moving targets—such as personnel, vehicles, and drones within a wide operational range. Its lightweight, ruggedized design ensures optimal performance in harsh environments, including extreme temperatures, heavy rain, and low-visibility conditions.
The system provides real-time data transmission to command centers or handheld devices, allowing for rapid response to potential threats. Whether deployed in forward operating bases, border patrols, or reconnaissance missions, the Electronic Sentry Single-Soldier Reconnaissance Alarm Radar Detection System enhances situational awareness and operational efficiency.
Ⅱ. Product Features
1. Portable Lightweight Desig
Compact and ergonomic, allowing for easy transport and rapid deployment by a single operator.Weighs less than 5 kg, minimizing soldier fatigue during extended missions.
2. High-Precision Radar Detection
UtilizesFMCW (Frequency-Modulated Continuous Wave) radar for superior target detection accuracy.Capable of distinguishing between humans, vehicles, and low-flying drones.
3. AI Powered Target Recognition
Advanced machine learning algorithms classify threats in real time, reducing false alarms.Adaptive filtering eliminates environmental interference (foliage, animals).
4. Multi Sensor Integration
Combines radar, infrared (IR), and acoustic sensors for comprehensive surveillance.Enhances detection reliability in day/night and adverse weather conditions.
5. RealTime Data Transmission
Secure wireless communication (encrypted RF or LTE) to command centers or tactical devices.Compatible with military-standard communication networks.
6. Long Battery Life Low Power Consumption
Operates for 48+ hours on a single battery charge. Supports solar panel charging for extended field operations.
7. Rugged Weatherproof Construction
IP67 rated housing for resistance to dust, water, and shock.Operates in temperatures ranging from -30°C to +60°C.
8. Silent Operation Stealth Mode
Passive detection modes prevent electronic signature exposure.Low-visibility design for covert operations.
Ⅲ. Product Functions
1. Automated Target Detection Tracking
Continuously scans a 360° radius with adjustable detection range (up to 5 km for vehicles, 2 km for personnel).Tracks multiple moving objects simultaneously with trajectory prediction.
2. Intelligent Threat Classification
Differentiates between friend/foe, human/vehicle, and ground/airborne threats.AI-based behavioral analysis flags suspicious movements (crawling, flanking).
3. Instant Alarm Alert System
Audible, visual, and vibration alerts for immediate threat notification.Configurable alarm thresholds to minimize false positives.
4. Remote Monitoring Control
Real-time data streaming to tablets, smartphones, or command HQ.Adjustable detection zones and sensitivity via intuitive software interface.
5. Stealth Counter-Detection Avoidanc
Low Probability of Intercept (LPI) radar technology to evade enemy detectio.Optional silent mode for covert reconnaissance.
6. Night Vision Thermal Imaging Compatibility
ntegrates with night-vision goggles (NVGs) and thermal scopes for enhanced night ops.
7. Data Logging Mission Playback
Stores detection logs for post-mission analysis.Exportable reports for intelligence debriefing.
V. product function
| Target detection |
Capable of real-time detection of moving targets, identifying unauthorized intruders or suspicious objects. |
| Image acquisition |
Equipped with high-definition image acquisition capabilities, it can obtain real-time image information from the surveillance area. |
| Automatic network configuration |
The system can automatically establish a network without human intervention, ensuring smooth communication between devices. |
| Intelligent analysis |
Conduct intelligent analysis of collected data, identify abnormal behavior, and issue alerts. |
| Device positioning |
Able to accurately determine its own location, making it convenient for monitoring and management. |
| Aggregation equipment functions |
|
| Data aggregation |
Centralize and process data collected from multiple detection devices. |
| data transmission |
Transmit the processed data to mobile terminals or monitoring centers via wireless or wired means. |
| Alarm integration |
Integrate alarm information from different detection devices to avoid false alarms. |
| Alarm integration |
Integrate alarm information from different detection devices to avoid false alarms. |
| Data storage |
Store the transmitted data for subsequent analysis and querying. |
| data transmission security |
Use encryption technology to ensure the security of data transmission. |
| The alarm is showing |
Display real-time alert messages from the system to remind users to pay attention. |
| Data storage |
It can store data collected by the system, making it convenient for users to view at any time. |
| Equipment management |
Users can remotely control and manage the system through mobile devices. |
| electronic map |
Display surveillance areas and device locations intuitively through an electronic map. |
| Information exchange |
Users can interact with other devices or individuals through mobile terminals. |
| Data transmission security |
nsure secure communication between mobile devices and the system. |
Ⅳ. Product Parameters
| Working system |
Phased array system/convolution Doppler |
| Working frequency band |
C wave band |
| Full coverage |
≥90° |
| Ply and glide |
≥18° |
| For pedestrians |
100m~1.5km |
| For mobile vehicles |
100m-3km |
| For 5-10m mobile ships |
100m~3km |
| Detection speed |
L8km/h-130km/h |
| data interface |
Wireless transmission (supporting RJ45) |
| rated dissipation |
≤ 55W (array surface) |
| Positioning and orientation |
It has automatic positioning and orientation function |
| working temperature |
-20℃-55℃ |
| Array size |
346mm×280mmx84mm |
| duration of flight |
≥ 4h (at room temperature, single cell) |
| Installation time |
≤3min |
| weight |
≤12.0kg |
