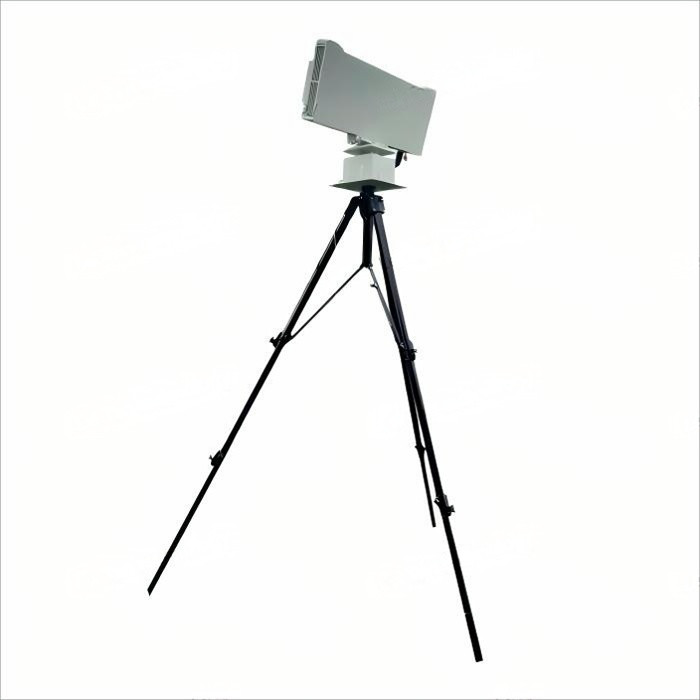

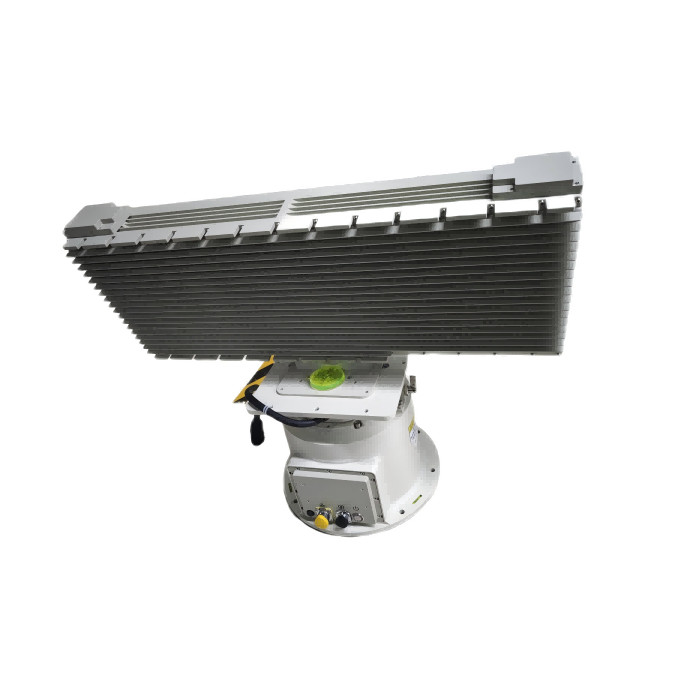

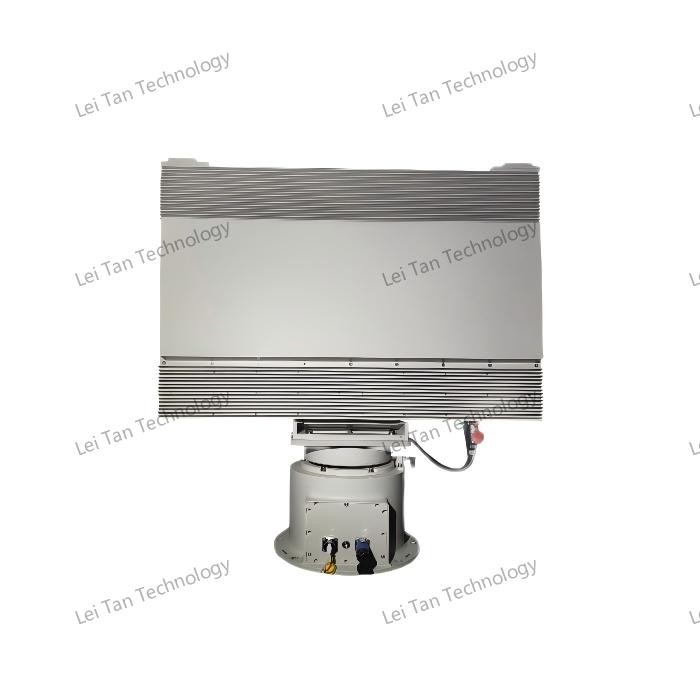

Remote High Precision Active Digital Phased Array Radar And Camera Linkage
I. Product Description
The system is designed to protect very important areas such as borders, peripheries, airports, and bases. It consists of three key components: radar, turntable, and power adapter. Specifically, it is manufactured to detect, monitor, and issue alerts for small civilian drones that may pose a threat in these regions. It can accurately tell us where the drone is, how far away it is, how high it is flying, and how fast it is moving.
II. Features
1.High Real-time And High-precision
It can track the long-distance target with high precision, provide accurate target position and motion information, and ensure the accuracy of monitoring.
2. Environmental Suitability
It can operate normally in bad environments such as night, rain, snow, haze and dust to ensure the continuity of monitoring.
3. High Flexibility
With long-range detection capability and easy deployment, it can be quickly deployed in complex terrain areas such as borders, perimeters or airports to meet diverse security needs.
4. DBF technology
Through multi-beam transmission, DBF technology significantly improves the anti-jamming capability of radar, ensures stable operation in complex electromagnetic environment, and improves the reliability of detection.
5. Active phased array system
The source phased array system not only improves the detection effect, but also can output the three-coordinate information of the target, providing users with more comprehensive monitoring data.
6. High Cost-effectiveness
It has achieved a balance between economy and reliability, and is a cost-effective security monitoring equipment.
III. Specifications
|
Working System
|
Active digital phased array (azimuth and pitch scanning) / pulsed Doppler |
| Working frequency band |
X-band
|
|
Effective Detection Range
|
100m to 5.0km (for drones with RCS ≥ 0.01㎡)
|
|
Azimuth Coverage
|
360°, elevation angle 40°
|
|
Detection Speed
|
1.8km/h to 270km/h
|
|
Operating Temperature
|
-45℃ ～ +55℃
|
|
Storage Temperature
|
-45℃ ～ +65℃
|
|
Azimuth Accuracy
|
≤0.4°
|
|
Elevation Accuracy
|
≤0.5°
|
|
Range Accuracy
|
≤10m
|
|
Speed Accuracy
|
≤0.5m/s
|
|
Data Rate
|
≥0.5Hz (antenna rotation speed 30rpm)
|
|
Data Interface
|
RJ45/1 100Mbps Ethernet
|
|
Power Input
|
≤400W (consumption) AC200-AC240 (input)
|
|
Weight
|
≤77kg (entire unit)
|
IV. Functions
1. Remote On/Off
You can remotely turn the system on or off. It's as easy as using a remote control.
2. Complete target information system
Tell us how far away the object is, how fast it's moving, and in which direction it's moving.
3. Multiple Target Tracking
It switches between multiple targets and shows us its trajectory in real time.
4. Communication And Data Are Used In Combination
The information from multiple sensors is fused using the UDP protocol. It can also be fused with cameras, baits, jamming systems and more.
5. Security Area Management
You can create a secure area and configure it as needed. If something enters without permission, it will immediately notify the administrator
6. Set It Up Online
It can change the sensitivity and speed of the system in real time. It can also filter out strange noises that could cause false alarms.
7. Status And Fault Aarms
If there is a fault or the device is disconnected, it will immediately notify you.
8. Remote Monitoring And Alarms
View system status from anywhere and notify you when a problem occurs.
9. Self-inspection System
It will self-check to make sure everything is working properly.
10. Automatic Tracking And testing
It has the ability of multi-site collaborative detection and the ability to fill in the blind spot of adjacent sites.
