All-Weather Three-Coordinate Information Active Digital Phased Array Radar Security Function
I. Product Description

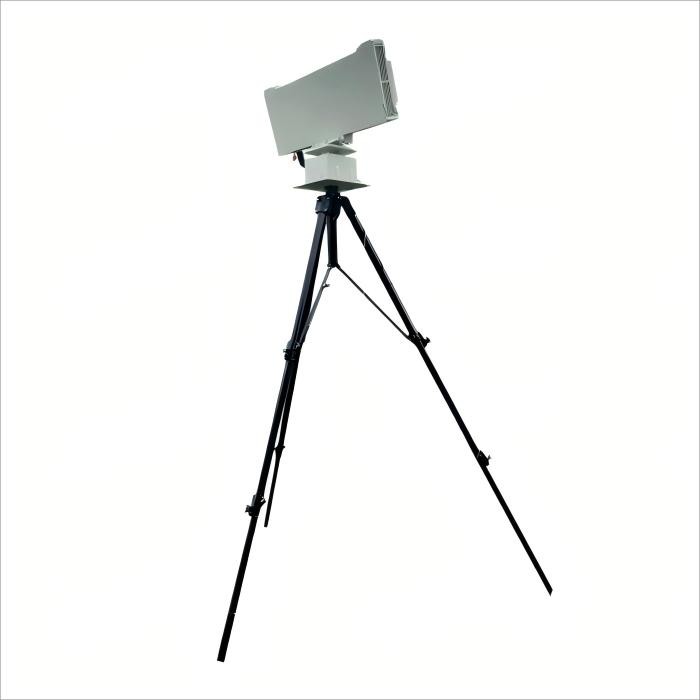

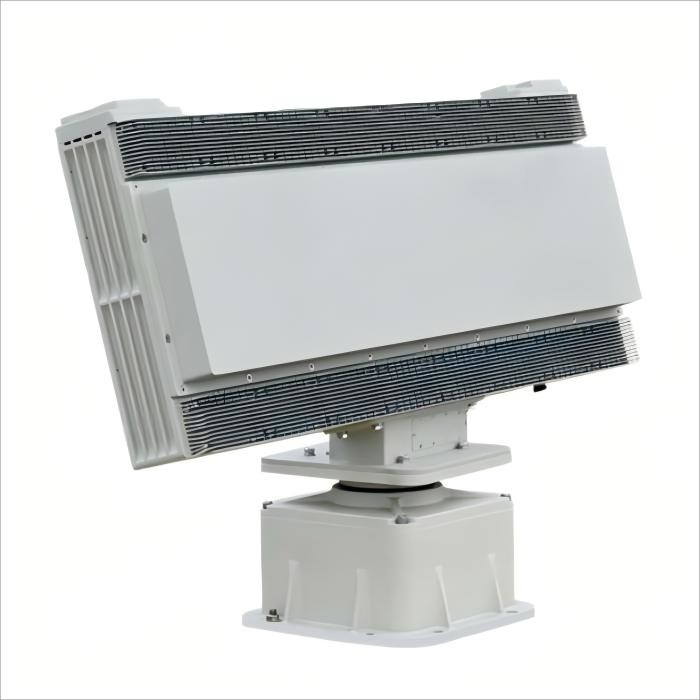

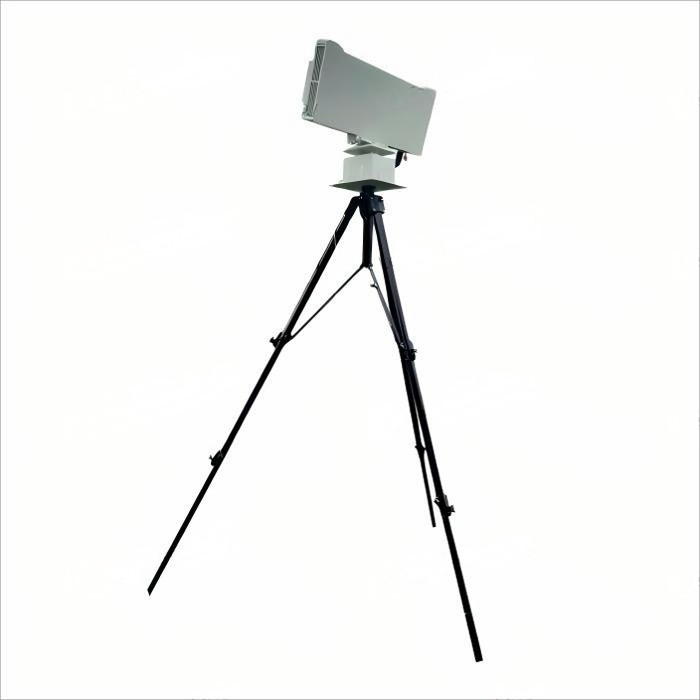

The system is equipped with all-weather three-coordinate information active digital phased array radar safety features, ensuring reliable detection and tracking of targets under various weather conditions. This advanced radar system consists of a radar, turntable, and power adapter, providing precise three-coordinate information (azimuth, elevation, and distance) for monitored targets, significantly enhancing the system's capability to effectively monitor and protect critical areas.
II. Features
1.High Real-time And High-precision
It can still provide accurate target information when detecting at a distance.
2. Strong Environmental Adaptability
Show strong environmental adaptability and enhance market competitiveness Ability to work around the clock.
3. High Flexibility
Long distance detection capability and convenient erection mode.
4. DBF technology
The multi-beam transmission and DBF technology significantly improve the anti-jamming capability of radar, so that it can work stably in complex electromagnetic environment and enhance its technical advantages.
5. Active phased array system
The advanced active phased array system not only improves the detection effect, but also outputs the three-coordinate information of the target, providing users with more comprehensive monitoring data and enhancing market competitiveness.
III. Functions
1. You can turn the device on or off from your phone or computer.
2. It tells you how far away the target is, how fast it's moving, and in which direction. This information can help you better understand your surroundings.
3. It tracks multiple targets at the same time and displays their movement paths in real time.
4. Using the UDP protocol, different types of information can be integrated together. It supports a variety of functions, such as raytracing, interfering with targets, capturing targets, and driving targets.
5. Protection zones can be set up as needed, and the system will immediately sound an alarm when a target enters these zones
6. You can adjust the sensitivity according to your needs, and you can filter out unnecessary interference signals to reduce false alarms.
7. It monitors your work status in real time and alerts you immediately if the device fails or goes offline.
8. You can remotely view the status of the device over the network.
9. You can automatically check your status to make sure everything is working properly.
10. It can automatically process complex background signals to ensure the accuracy of target detection.
11. The radar and camera can work together to automatically track the target and take photos for evidence(Automatic tracking mode, radar tracking mode, image tracking mode).
12. Supports multi-site collaborative detection and can fill in the blind spot when a nearby site fails.
IV. Specifications
|
Working System
|
Active digital phased array (azimuth and pitch scanning) / pulsed Doppler |
| Working frequency band |
X-band
|
|
Effective Detection Range
|
100m to 5.0km (for drones with RCS ≥ 0.01㎡)
|
|
Azimuth Coverage
|
360°, elevation angle 40°
|
|
Detection Speed
|
1.8km/h to 270km/h
|
|
Operating Temperature
|
-45℃ ～ +55℃
|
|
Storage Temperature
|
-45℃ ～ +65℃
|
|
Azimuth Accuracy
|
≤0.4°
|
|
Elevation Accuracy
|
≤0.5°
|
|
Range Accuracy
|
≤10m
|
|
Speed Accuracy
|
≤0.5m/s
|
|
Data Rate
|
≥0.5Hz (antenna rotation speed 30rpm)
|
|
Data Interface
|
RJ45/1 100Mbps Ethernet
|
|
Power Input
|
≤400W (consumption) AC200-AC240 (input)
|
|
Weight
|
≤77kg (entire unit)
|
