Advanced Threat Detection & Seamless Integration Radar Systems 24/7 Surveillance
Ⅰ. Product Description

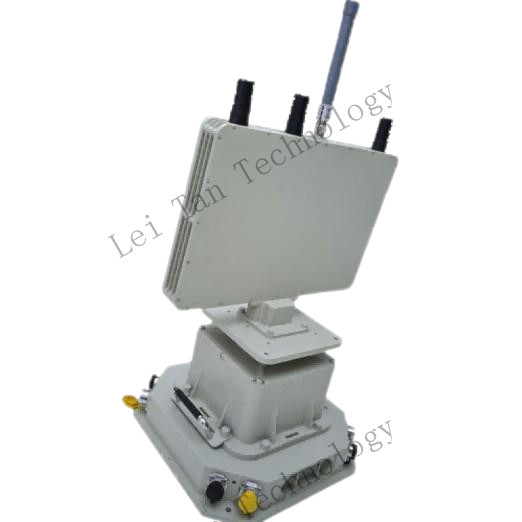

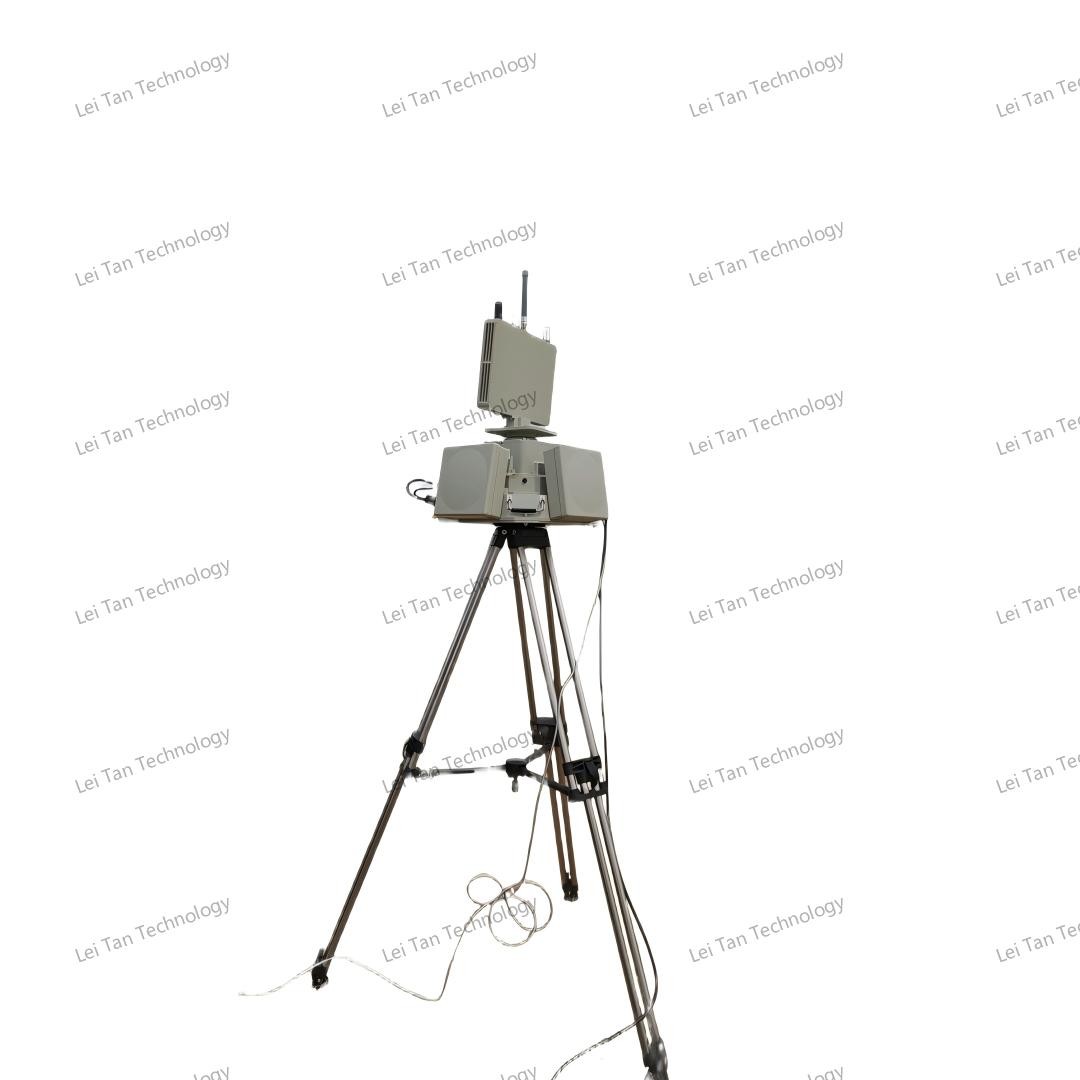

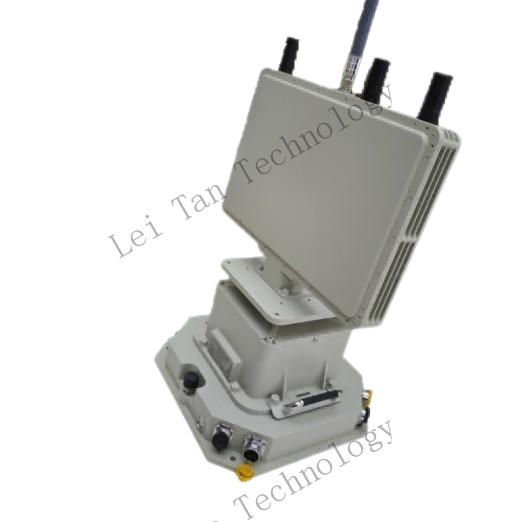

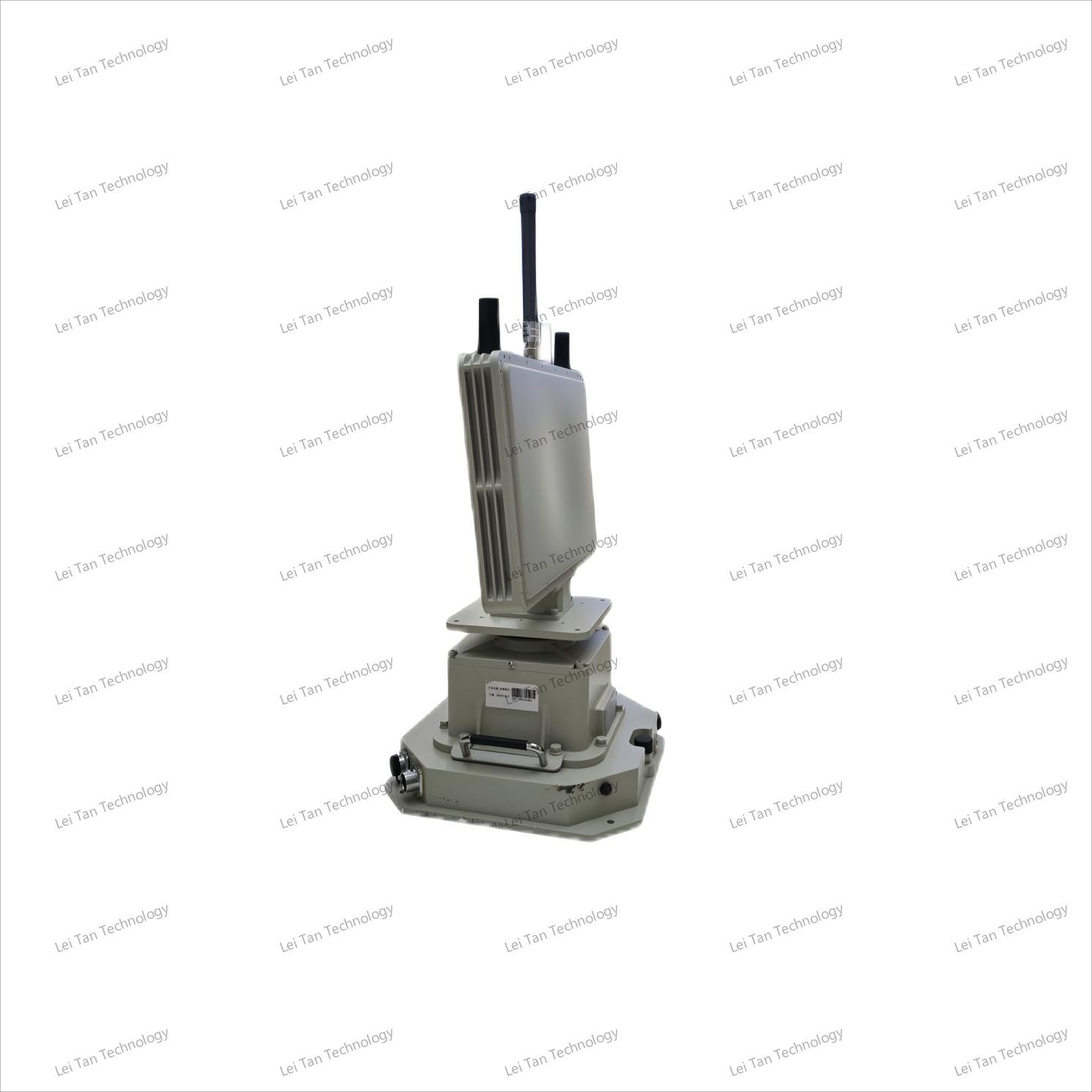

The Anti-Drone Radar System represents a quantum leap in persistent aerial threat detection, delivering uninterrupted 24/7 surveillance through its multi-layered sensor fusion and intelligent system integration. Designed for mission-critical security operations, this advanced system combines phased array radar, AI-powered spectrum analysis, and adaptive countermeasures to protect high-value assets including military installations, airports, and government facilities.
At the heart of the system lies its dual-mode detection architecture integrating active radar (5400-5600MHz ISM band) with passive RF detection (20MHz-6GHz) to achieve comprehensive airspace awareness. The system's open API framework enables seamless integ ration with existing security infrastructure, including CCTV networks, command centers, and air defense systems, creating a unified security ecosystem.
Engineered for continuous operation, system features self-healing capabilities and remote diagnostics, maintaining 99% system availability even in extreme environments (-40°C to 55°C). Its modular design supports configurations ranging from standalone protection to distributed defense networks, ensuring scalable security for any operational scenario.
Ⅱ. Product Features
1. Intelligent Multi-Sensor Detection
Phased Array Radar
5400-5600MHz operating frequency (ITU-compliant ISM band)
≥7.5km detection range for standard drones
multiple target simultaneous target tracking capability
Full-Spectrum RF Analysis
20MHz-6GHz frequency coverage
Protocol-specific identification (DJI, Autel, custom protocols)
5km passive detection range
2. Adaptive Counter-Drone Suite
Precision Electronic Warfare
Targeted jamming (840-868MHz, 2.4GHz, 5.8GHz)
GPS/GNSS spoofing (L1/L2/L5 bands)
Automated Response Protocols
Pre-programmed defense sequences
Manual override capability
3. Multi-Domain Deployment Flexibility
Fixed-Site Configuration
Permanent installations for critical infrastructure
Mobile Platforms
Vehicle-mounted for rapid deployment
Maritime Solutions
Saltwater-resistant variants for coastal defense
Ⅲ. Product Functions
|
Functional Indicators
|
Main Performance
|
|
System Detection Configuration
|
Radar Operating Band
|
5400-5600MHz (ISM band exempt from application by International Telecommunication Union)
|
|
Spectrum Detection Band
|
20MHz-6GHz full band
|
|
Operational Range
|
Identification Range: ≥5km (capable of identifying drone brands and models)
|
|
Detection Range: ≥7.5km (detects drones in the database and those using non-database communication protocols)
|
|
Unauthorized Flight Detection Range: ≥2km (detects all drones, including FPV and unauthorized flights)
|
|
Detection Success Rate
|
99%
|
|
Protocol Cracking
|
LightBridge1, LightBridge2; OcuSync; WIFI and WIFI variant protocols
|
|
Deception Takeover
|
Deception Frequency
|
GPS-L1
|
|
Deception Range
|
3km (adjustable)
|
|
Jamming Suppression
|
Jamming Bands
|
840-868MHz(flight control and video transmission)
|
|
902-928MHz(flight control and video transmission)
|
|
1560-1620MHz (navigation)
|
|
2400-2500MHz(flight control and video transmission)
|
|
5150-5850MHz(flight control and video transmission)
|
|
Operational Range
|
1000m
|
Ⅳ. Product Parameters
|
Parameter Indicators
|
|
Dimensions (when deployed)
|
≤1500mm×1500mm×2800mm
|
|
Weight
|
≤25kg (equipment)
|
|
Operating Temperature
|
-40℃～55℃
|
|
Storage Temperature
|
-45℃～65℃
|
|
Protection Rating
|
Ip65
|
|
Operating Humidity
|
≤ 95%
|
|
Data Interface
|
RJ45
|
|
Power Interface
|
Voltage: AC 180V-250V
|
|
Power: ≤100W (detection mode), ≤600W (countermeasure mode)
|
|
Setup Time
|
≤15min
|
|
Packaging
|
2 cases
|
|
Platform Functions
|
Real-time detection, alarm, automatic countermeasures, manual countermeasures, GIS mapping, data storage, event query
|
