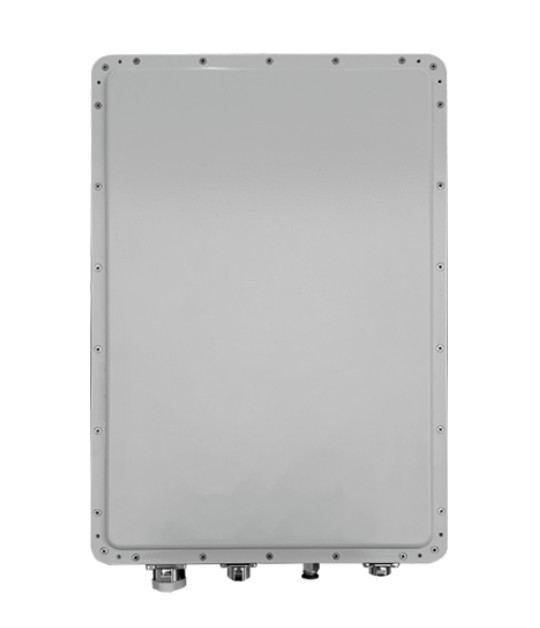

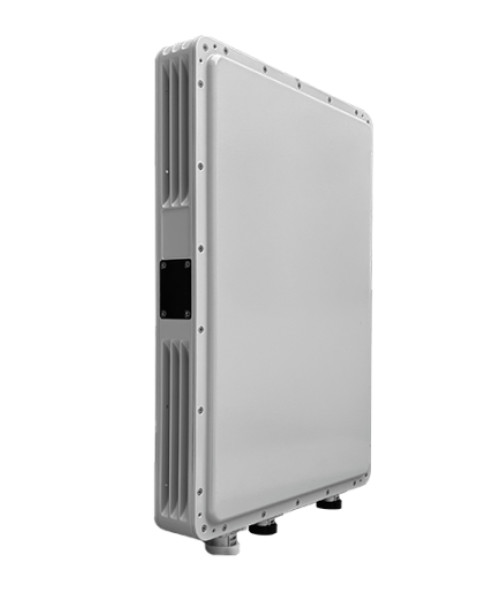

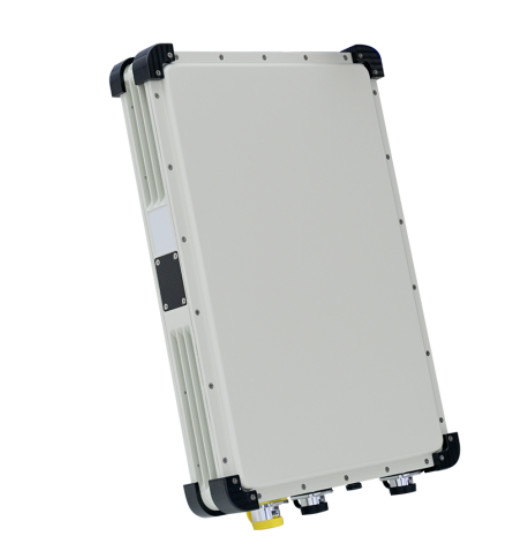

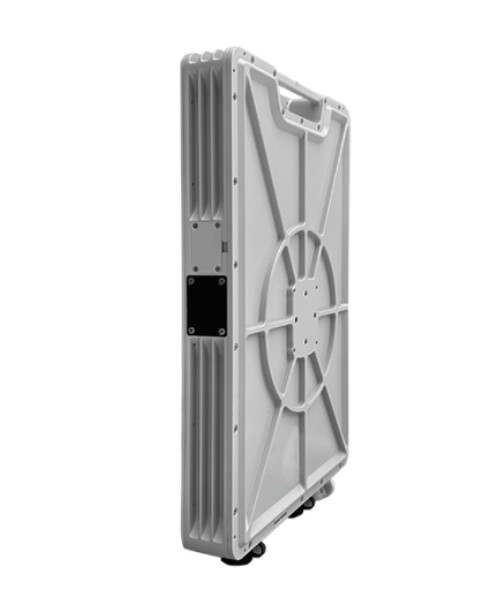

Easy Erection Rapid Deployment Active Phased Array Radar Light Weight

Long-distance Startup

Supports remote power on and off functions

Positioning And Orientation

It has positioning and orientation functions

Outgoing Message

Supports access to information such as distance, speed, and Angle of the detected object

Multiple Target Tracking

Supports multi-target tracking switching logic

Target Fusion Processing Function

Supports multi-sensor data fusion processing

Defense Zone Management

The zone can be set flexibly and accurately positioned, and the intrusion alarm can be triggered

Capacity Of Resisting Disturbance

The online adjustment capability of detection sensitivity/speed range and the ability to filter abnormal trajectory interference can effectively filter false alarms caused by clutter through the sensitivity and abnormal trajectory filtering functions.

Online Monitoring Function

It has remote monitoring capability and can report the status of the equipment in real time; it has online/offline alarm function for the equipment.

Remote Monitoring Status

It has remote monitoring capability and can report the status of the equipment in real time; it has online/offline alarm function for the equipment.

Self Checking Function

The equipment has online self-test function

Adaptive Processing Capability

It has the ability of adaptive clutter processing for moving targets and adaptive clutter processing for clutter maps

Linked Functions

Equipped with radar and camera linkage function, the target can be tracked and captured for evidence

Multi-site Network Coverage

It has the function of networking multiple devices; it has the ability of multi-site collaborative detection; and it has the ability of near-site fault blindness.

Working system

Active digital phased array (azimuth phase scan)/pulse Doppler

Working frequency band

C wave band

range

8.5km

Effective detection power

100m~5.0km (pedestrian) 100m~7.0km (car)

Full coverage

≥90°

Upward Angle Coverage

≥9°

Detection speed

1.8km/h～108km/h

Direction accuracy

≤1.0°

range accuracy

≤10m

data rate

≥2Hz

data interface

RJ45/1 100 megabit Ethernet

power input

≤65W (power consumption) AC220V~AC240V (input)

working temperature

-40℃～+55℃

weight

≤5.5kg
