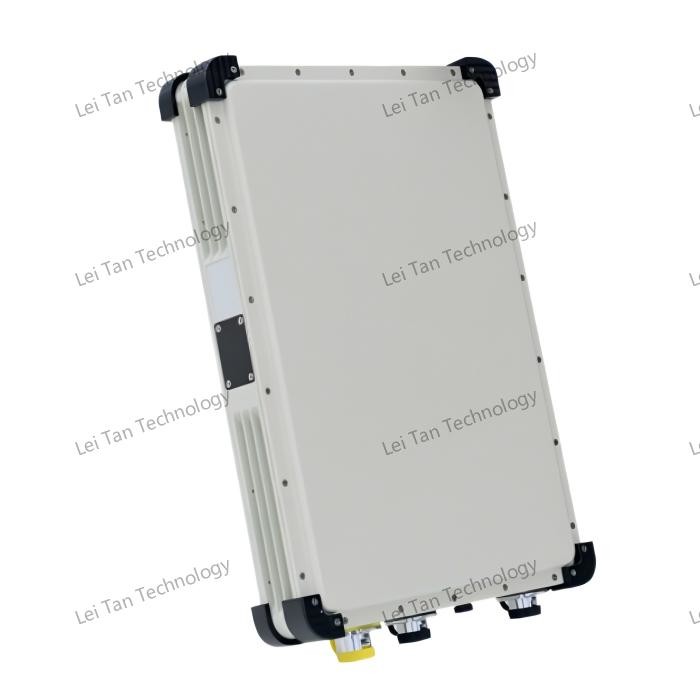

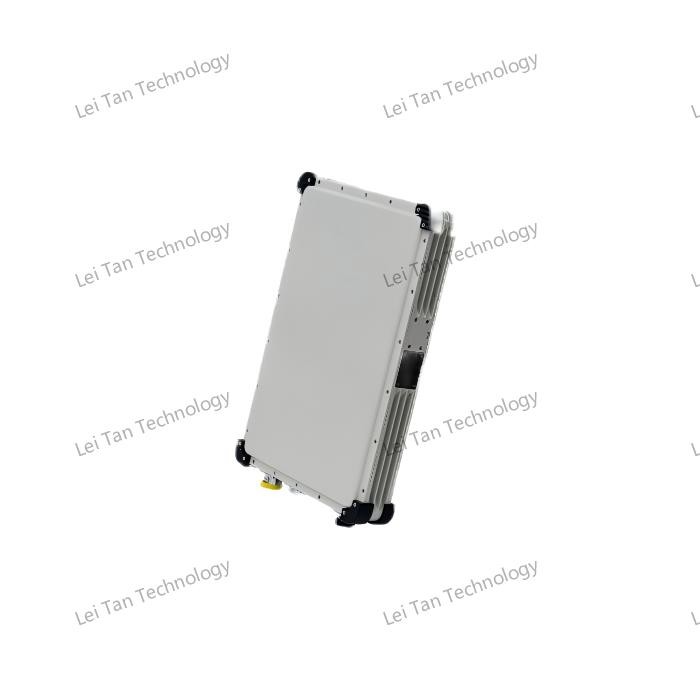

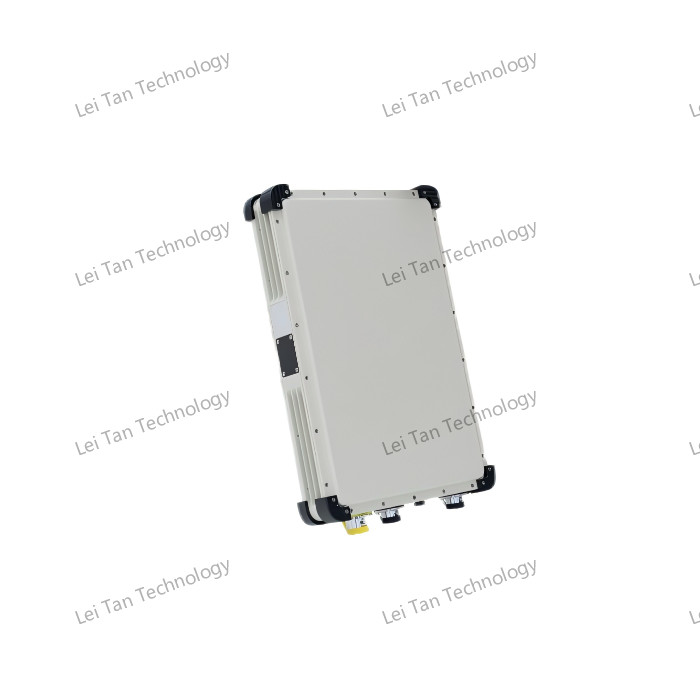

High Precision Detection Active Phased Array Radar Data Fusion Processing Azimuth Accuracy ≤ 1.0
I. Product Description

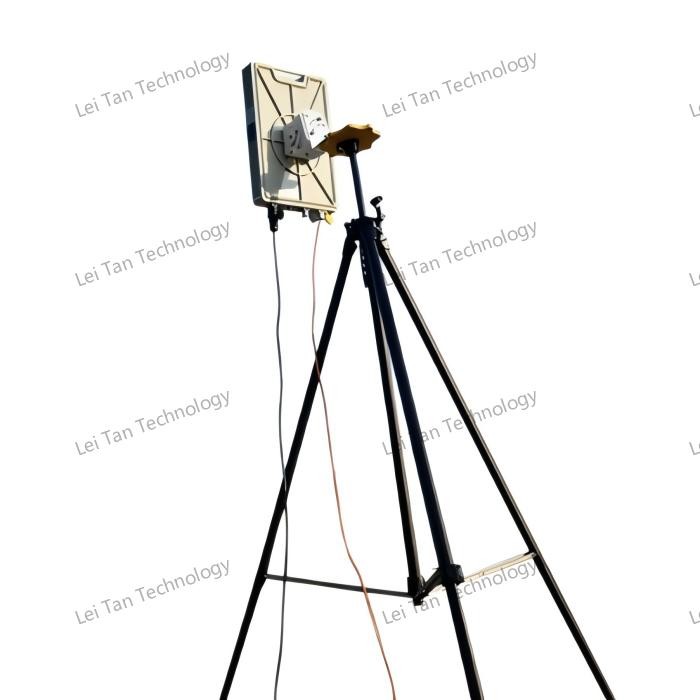

The Radar systems features Intelligent Linkage and Pan-tilt Linkage for precise target tracking.Its Active Phased Array Radar supports Multi-Mode operations,ensuring high performance in various weather conditions and applications.
II. Characteristic
1. Real-time Monitoring
Intelligent linkage and pan-tilt control enable continuous real-time tracking and monitoring of targets with high precision.
2. All-weather Operation
C-Band radar supports multi-mode operations, ensuring reliable performance in various weather conditions.
3. Wide Coverage
Active phased array radar provides broad coverage, effectively monitoring large areas with high efficiency.
4. Easy Deployment
Radar system is designed for easy installation and setup, simplifying deployment in different environments.
5. Multi-sensor Fusion
Integrates data from multiple sensors for comprehensive analysis, enhancing situational awareness and decision-making.
III. Functions
1. Remote Control
The radar supports remote on/off functionality, allowing operators to manage the system from a distance.
2. Comprehensive Target Information
It provides detailed information on the distance, speed, and angle of detected objects.
3. Multi-Target Tracking
The radar can track multiple targets simultaneously, providing real-time trajectories.
4. Data Fusion
It integrates data from multiple sensors, enhancing the accuracy and reliability of target detection.
5. Customizable Zones
Users can set up specific surveillance zones and trigger alarms for intrusions.
6.Interference Filtering
The radar can adjust sensitivity and filter out false alarms caused by clutter, ensuring accurate detection.
7. Status Monitoring
It includes functions for monitoring operational status, detecting faults, and alerting operators to offline devices.
8. Networking and Collaboration
Multiple radar units can be networked to provide comprehensive coverage and support collaborative detection.
9. Multi-Mode
The target is tracked and captured for evidence (automatic tracking mode, radar tracking mode, image tracking mode
IV. Specifications:
|
Working System
|
Active digital phased array (azimuth phase scan)/pulse Doppler
|
|
Operating Frequency Band
|
C wave band
|
|
Effective detection range
|
100m~5.0km (pedestrian) 100m~7.0km (car)
|
|
Range
|
8.5km
|
|
Upward Angle Coverage
|
≥9°
|
|
Direction Coverage
|
≥90°
|
|
Detection Speed
|
1.8km/h～108km/h
|
|
Operating Temperature
|
-40℃～+55℃
|
|
Direction Accuracy
|
≤1.0°
|
|
Range Accuracy
|
≤10m
|
|
Data Rate
|
≥2Hz
|
|
Speed accuracy
|
≤0.5m/s
|
|
Data Interface
|
RJ45/1100 megabit Ethernet
|
|
Power input
|
≤65W (power consumption) AC220V~AC240V (input)
|
|
Weight
|
≤5.5kg
|
