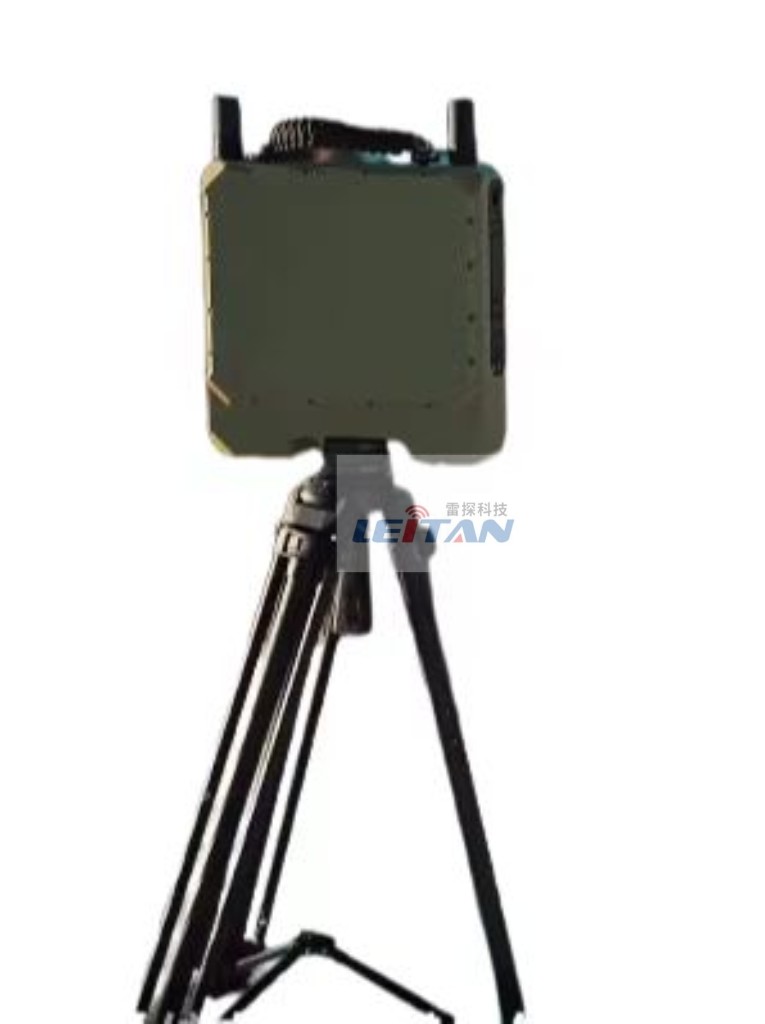

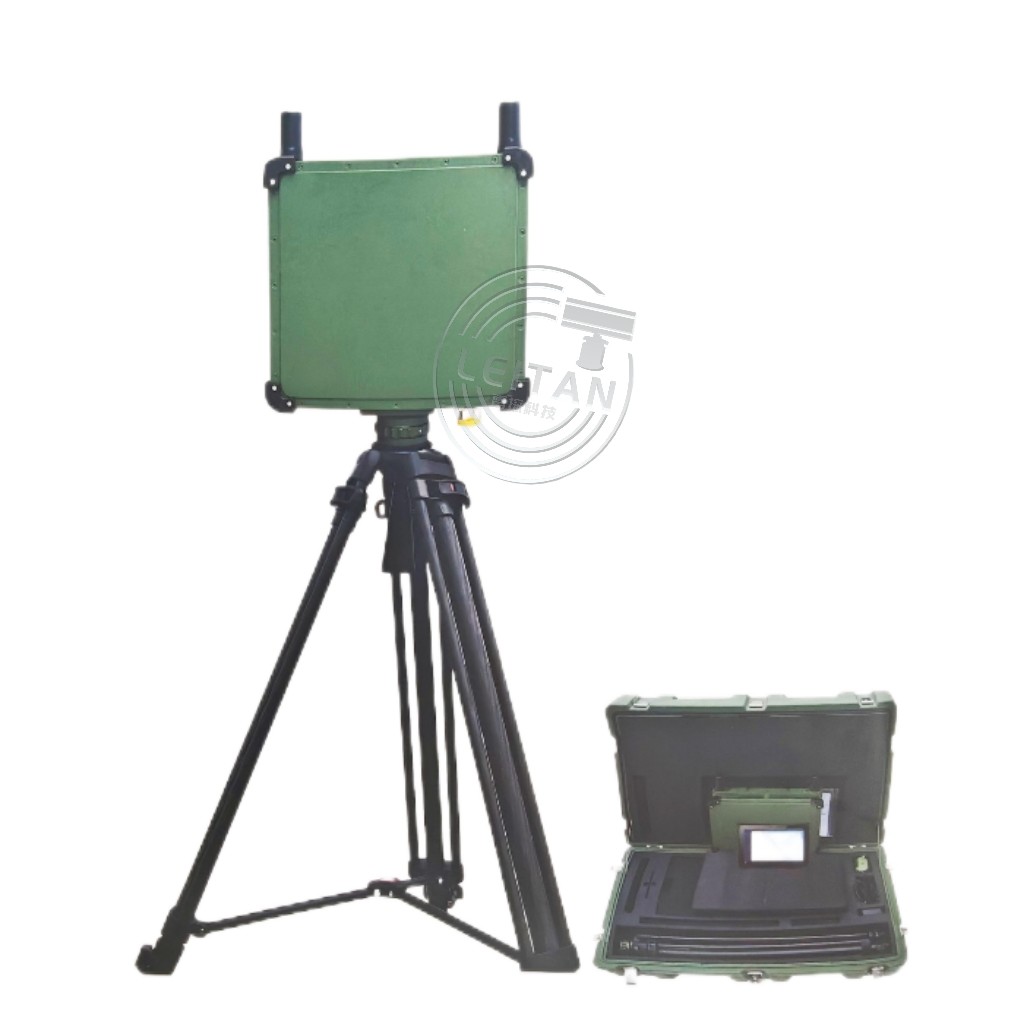

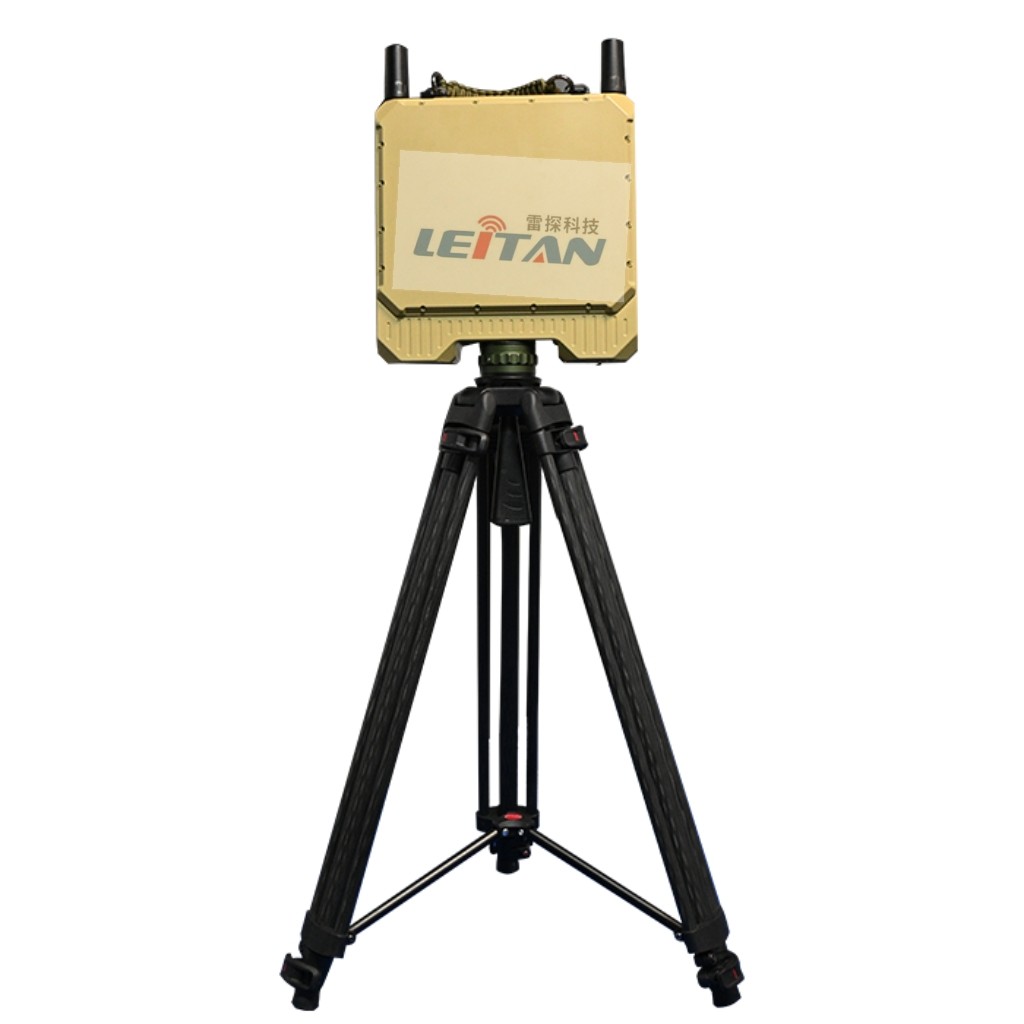

LowPower Operation Long-Endurance Standby Radar Detection System Ideal for Remote Unmanned Areas
Ⅰ. Product Description
The Low-Power Operation, SelfWake Capability Long-Endurance Standby Radar Detection System is an advanced surveillance solution designed for remote, unmanned areas where continuous monitoring is essential but power supply and maintenance are limited. This system integrates cutting-edge radar technology with ultra-low power consumption, enabling long-term operation without frequent battery replacements or external power sources.
Equipped with self wake capability, the system remains in an ultra-low-power standby mode until motion or intrusion is detected, instantly activating full operational mode to provide real-time alerts and data transmission. Its robust design ensures reliable performance in harsh environments, making it ideal for border security, wildlife monitoring, infrastructure protection, and military applications.
With long-endurance standby, this radar detection system minimizes energy waste while maintaining high detection accuracy, ensuring uninterrupted surveillance for extended periods. Whether deployed in deserts, forests, or arctic regions, this system delivers unmatched reliability and efficiency.
Ⅱ. Product Features
1. Ultra-Low Power Consumption
Optimized for minimal energy usage, extending operational lifespan.Advanced power management reduces idle consumption to near-zero levels.
2. Self-Wake Capability
Automatically wakes from standby upon detecting movement or intrusions.Ensures immediate response without manual intervention.
3. Long-Endurance Standby Mode
Can operate for months or even years on a single battery charge (depending on usage).Ideal for remote deployments where frequent maintenance is impractical.
4. High-Sensitivity Radar Detection
Detects moving objects with high accuracy, even in challenging environments (rain, fog, dust).Adjustable sensitivity to reduce false alarms.
5. Remote Data Transmission
Supports wireless communication (LoRa, NB-IoT, or satellite) for real-time alerts.Compatible with centralized monitoring systems for seamless integration.
6. Rugged & Weatherproof Design
Built to withstand extreme temperatures, humidity, and harsh weather conditions.IP67-rated enclosure for dust and water resistance.
7. Easy Deployment & Scalability
Lightweight and compact for quick installation in remote locations.Modular design allows for integration with additional sensors (thermal cameras, seismic detectors, etc) .
Ⅲ. Product Functions
1. Motion Detection Intrusion Alert
Uses advanced radar technology to detect human or vehicle movement within a customizable range.Instant alerts via SMS, email, or centralized monitoring platforms.
2. Adaptive Sensing Modes
Standby Mode: Ultra-low power state with periodic scanning.Active Mode: Full-power detection when movement is detected.
3. Multi-Target Tracking
Capable of tracking multiple moving objects simultaneously.Provides trajectory analysis for enhanced situational awareness.
4. Wireless Connectivity Remote Control
Supports long-range communication protocols (LoRaWAN, NB-IoT, 4G/5G, satellite).Configurable via mobile app or web-based dashboard.
5. Anti-Interference & False Alarm Reduction
Advanced algorithms filter out environmental noise (animals, vegetation movement).Adjustable detection thresholds to minimize unnecessary activations.
6. Energy Harvesting Compatibility
Can be paired with solar panels or wind turbines for self-sustaining operation.Optional rechargeable battery packs for extended use.
7. Data Logging Analysis
Stores detection events for post-mission analysis.Exportable reports for security assessment and operational planning.
Ⅳ. Product Parameters
| Working system |
Phased array system/convolution Doppler |
| Working frequency band |
C wave band |
| Full coverage |
≥90° |
| Ply and glide |
≥18° |
| For pedestrians |
100m~1.5km |
| For mobile vehicles |
100m-3km |
| For 5-10m mobile ships |
100m~3km |
| Detection speed |
L8km/h-130km/h |
| Data interface |
Wireless transmission (supporting RJ45) |
| Rated dissipation |
≤ 55W (array surface) |
| Positioning and orientation |
It has automatic positioning and orientation function |
| Working temperature |
-20℃-55℃ |
| Array size |
346mm×280mmx84mm |
| Duration of flight |
≥ 4h (at room temperature, single cell) |
| Installation time |
≤3min |
| Weight |
≤12.0kg |
V. Product Advantages
| |
|
|
Target detection
|
Capable of real-time detection of moving targets, identifying unauthorized intruders or suspicious objects.
|
|
Image acquisition
|
Equipped with high-definition image acquisition capabilities, it can obtain real-time image information from the surveillance area.
|
|
Automatic network configuration
|
The system can automatically establish a network without human intervention, ensuring smooth communication between devices.
|
|
Intelligent analysis
|
Conduct intelligent analysis of collected data, identify abnormal behavior, and issue alerts.
|
|
Device positioning
|
Able to accurately determine its own location, making it convenient for monitoring and management.
|
|
Aggregation equipment functions
|
|
|
Data aggregation
|
Centralize and process data collected from multiple detection devices.
|
|
data transmission
|
Transmit the processed data to mobile terminals or monitoring centers via wireless or wired means.
|
|
Alarm integration
|
Integrate alarm information from different detection devices to avoid false alarms.
|
|
Alarm integration
|
Integrate alarm information from different detection devices to avoid false alarms.
|
|
Data storage
|
Store the transmitted data for subsequent analysis and querying.
|
|
data transmission security
|
Use encryption technology to ensure the security of data transmission.
|
|
Mobile terminal functions
|
|
|
The alarm is showing
|
Display real-time alert messages from the system to remind users to pay attention.
|
|
Data storage
|
It can store data collected by the system, making it convenient for users to view at any time.
|
|
Equipment management
|
Users can remotely control and manage the system through mobile devices.
|
|
electronic map
|
Display surveillance areas and device locations intuitively through an electronic map.
|
|
Information exchange
|
Users can interact with other devices or individuals through mobile terminals.
|
|
Data transmission security
|
nsure secure communication between mobile devices and the system.
|
