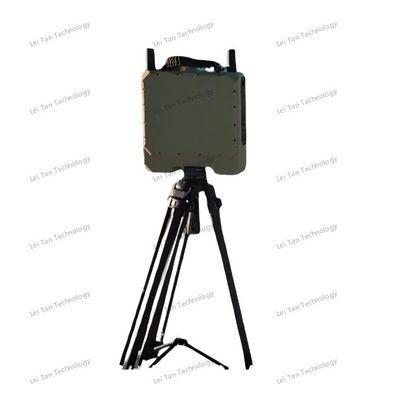

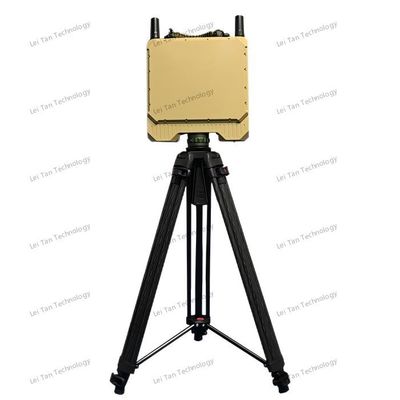

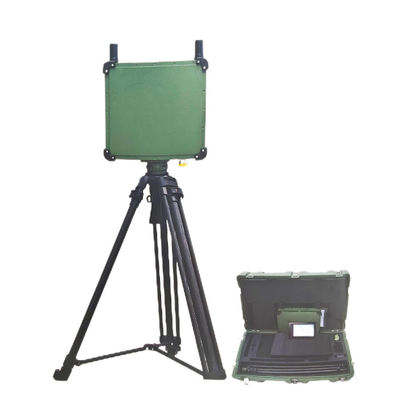

Rapid Modular Setup Portable Design Radar Detection System for Swift Mission Response
Ⅰ. Product Description
The Rapid Deployment Radar Detection System (RDRDS) is a cutting-edge, portable radar solution designed for swift mission response in dynamic operational environments. Engineered for ease of transport and rapid setup, this system ensures high-performance detection capabilities while maintaining a lightweight, modular structure (only 30kg). Its plug-and-play functionality allows operators to deploy and activate the system within minutes, making it ideal for military, border security, disaster response, and surveillance applications.
Built with advanced phased-array radar technology, the RDRDS provides real-time detection and tracking of airborne, ground, and maritime targets. Its compact and ruggedized design ensures reliability in harsh conditions, while the modular architecture allows for seamless integration with existing command and control systems.
Whether for temporary surveillance posts, rapid reconnaissance, or mobile security operations, the RDRDS delivers unmatched flexibility and efficiency, ensuring mission readiness at all times.
Ⅱ. Product Features
1. Rapid Modular Setup
Deployable in under 10 minutes– Minimizes setup time for urgent missions.Modular components Easy assembly and disassembly without specialized tools.Interchangeable modules Customizable for different mission requirements.
2. Lightweight Portable (30kg Total Weight)
Ultra-lightweight construction Enables single-operator transport.Compact folding design Fits into standard military backpacks or vehicle storage.Integrated carrying handles Facilitates quick relocation.
3. Plug-and-Play Operation
Automatic self-calibration No manual tuning required.Hot-swappable power data connections Ensures uninterrupted operation.Compatible with standard power sources (AC/DC, vehicle batteries, solar panels).
4. High-Performance Radar Detection
360° panoramic scanning Full situational awareness.Multi-target tracking Simultaneously detects and classifies multiple threats.Low false-alarm rate Advanced signal processing minimizes noise interference.
5. Rugged Weather-Resistant
IP67-rated enclosure Resistant to dust, rain, and extreme temperatures (-30°C to +60°C).Shock-absorbent frame Withstands vibrations and impacts during transport.
6. Seamless Connectivity
Real-time data transmission Secure wireless (Wi-Fi, LTE) and wired (Ethernet) options.Integrated GPS compass Auto-geolocation for rapid repositioning.NATO-standard interfaces Compatible with C4ISR systems.
Ⅲ. Product Functions
1. Airborne Target Detection
Detects and tracks drones, helicopters, and low-flying aircraft within a 20km range.Automatic threat classification (friend/foe/unknown).
2. Ground Maritime Surveillance
Identifies moving vehicles, vessels, and personnel up to 10km (ground) and 15km (maritime).Doppler processing for speed and direction analysis.
3. Stealth LowRCS Target Detection
Enhanced sensitivity for small UAVs and stealth objects with low radar cross-section (RCS).
4. AllWeather Operation
Functions in rain, fog, sandstorms, and nighttime conditions.
5. Automated Alerts Reporting
Customizable alarm thresholds for different threat levels.0Real-time data logging for post-mission analysis.
6. Multi-Sensor Integration
Supports fusion with EO/IR cameras, acoustic sensors, and radar jammers.
7. Low Power Consumption
Energy-efficient operation (avg. 50W) with optional battery/solar power.
Ⅳ. Product Specifications
| Working system |
Phased array system/convolution Doppler |
| Working frequency band |
C wave band |
| Full coverage |
≥90° |
| Ply and glide |
≥18° |
| For pedestrians |
100m~1.5km |
| For mobile vehicles |
100m-3km |
| For 5-10m mobile ships |
100m~3km |
| Detection speed |
L8km/h-130km/h |
| Data interface |
Wireless transmission (supporting RJ45) |
| Rated dissipation |
≤ 55W (array surface) |
| Positioning and orientation |
It has automatic positioning and orientation function |
| Working temperature |
-20℃-55℃ |
| Array size |
346mm×280mmx84mm |
| Duration of flight |
≥ 4h (at room temperature, single cell) |
| Installation time |
≤3min |
| Weight |
≤12.0kg |
Ⅴ. Product Advantages
|
Target detection
|
Capable of real-time detection of moving targets, identifying unauthorized intruders or suspicious objects.
|
|
Image acquisition
|
Equipped with high-definition image acquisition capabilities, it can obtain real-time image information from the surveillance area.
|
|
Automatic network configuration
|
The system can automatically establish a network without human intervention, ensuring smooth communication between devices.
|
|
Intelligent analysis
|
Conduct intelligent analysis of collected data, identify abnormal behavior, and issue alerts.
|
|
Device positioning
|
Able to accurately determine its own location, making it convenient for monitoring and management.
|
|
Data aggregation
|
Centralize and process data collected from multiple detection devices.
|
|
data transmission
|
Transmit the processed data to mobile terminals or monitoring centers via wireless or wired means.
|
|
Alarm integration
|
Integrate alarm information from different detection devices to avoid false alarms.
|
|
Alarm integration
|
Integrate alarm information from different detection devices to avoid false alarms.
|
|
Data storage
|
Store the transmitted data for subsequent analysis and querying.
|
|
data transmission security
|
Use encryption technology to ensure the security of data transmission.
|
|
The alarm is showing
|
Display real-time alert messages from the system to remind users to pay attention.
|
|
Data storage
|
It can store data collected by the system, making it convenient for users to view at any time.
|
|
Equipment management
|
Users can remotely control and manage the system through mobile devices.
|
|
electronic map
|
Display surveillance areas and device locations intuitively through an electronic map.
|
|
Information exchange
|
Users can interact with other devices or individuals through mobile terminals.
|
|
Data transmission security
|
nsure secure communication between mobile devices and the system.
|
