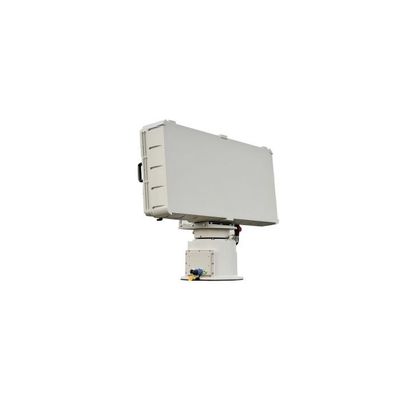

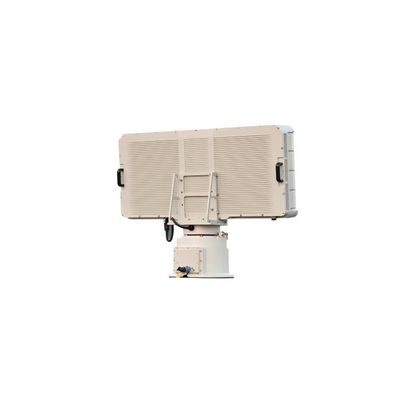

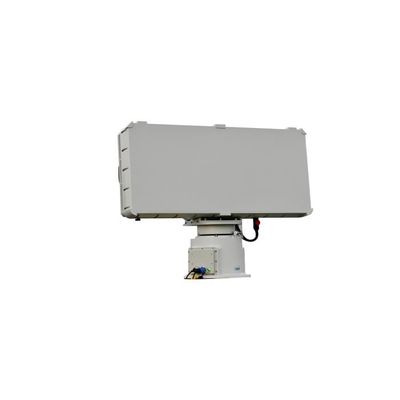

S Band Anti Jamming Easy Todeploy Border Security Radar For Drone Detection

Detection of micro or small unmanned aerial vehicles

The main function of the Leikeka XW/SR226-10200S radar system is to detect micro and small civilian drones. Its effective detection range is 100m to 10.0km, accurately identifying and locating the position, speed, and flight trajectory of drones. Using high-precision detection technology, the radar system can promptly identify and warn of potential drone threats, providing sufficient time and information for subsequent response measures.

Alert and target indication

Upon detecting a target, the Leida XW/SR226-10200S radar system can immediately issue an alert signal and transmit target information to relevant security systems or operators. Its data interface is RJ45/100 Mbps Ethernet, allowing for easy and quick data interaction and collaboration with other systems. Through its target indication function, the radar system can guide other defense equipment or personnel to further handle the target, such as tracking, intercepting, or driving it away.

Track information acquisition

The Leica XW/SR226-10200S radar system accurately acquires target trajectory information, including azimuth, distance, altitude, and speed. This information is crucial for analyzing the target's intentions and behavior patterns. By analyzing the trajectory data, security personnel can determine if the target poses a threat and what countermeasures to take. Additionally, this information can be used for post-event situation analysis and investigations, providing data support for security decisions.

work system

Phased array system (azimuth + elevation scanning) pulse Doppler

Operating frequency band

S-band

Range

10.2km

Effective detection power

100 meters to 10 kilometers (drone)

coverage direction

360°

Elevation coverage

≥40°

Detection speed

1.8km/h～306km/h

directional accuracy

≤0.8°

Pitch accuracy

≤1.0°

distance accuracy

≤10M

data rate

≥0.2Hz

data interface

RJ45 100 megabit Ethernet

Power input

Power consumption: ≤250W, Input voltage: AC200-AC240

Operating temperature

-40°C to +55°C

weight

≤60kg
