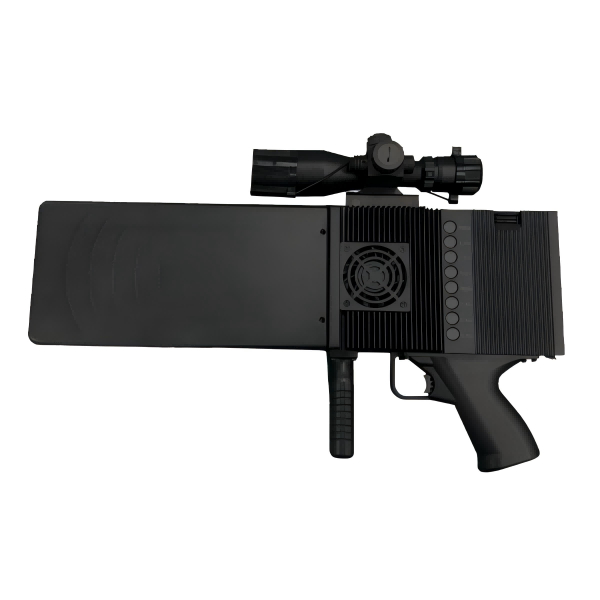

Ⅰ. Product Presentation
This product is highly integrated and adopts high-power electronic countermeasures technology to direct and remotely interfere with the navigation, remote control, map transmission and communication link of the "black flying" UAV, forcing the "black flying" UAV to land or return.
Ⅱ. Equipment Features
1. Powerful Core Configuration
Equipped with eight built-in interference modules, covering multiple frequency bands, with high-power output, capable of covering a wider range of drone types and models, and effectively countering FHSS drones.
2. Rapid Response Capability
This product requires no assembly, is ready to use immediately, has strong risk control capabilities, and meets the needs of real - combat scenarios.
3. Portability
Highly integrated and one - piece design, using innovative technologies to enhance portability, lightweight and easy to carry.
4. High Reliability
The main body shell is made of 7075 aerospace - grade heat - dissipation aluminum, equipped with cooling fans for efficient heat dissipation, which can extend the service life of the equipment, with a service life of up to 5 - 10 years.
5. Ergonomic Design
Comfortable grip handle, trigger - type switch, and status display screen.
Ⅲ. Product Functions
|
Parameter Name
|
Parameter Value
|
|
Counter-model
|
Radio Frequency Interference
|
|
Counter objects
|
Drone video transmission, flight control link, navigation signal
|
|
Counterband
|
433MHz,800MHz,900MHz,1.2GHz,1.4GHz,1.5GHz,1.6GHz,2.4GHz,5.2GHz,5.8GHz
|
|
Interference function
|
Interferes with the navigation/remote control/video transmission communication links of drones, causing drones to return to home or land
|
|
Countermeasures type
|
Directional Antenna
|
|
Scope of countermeasures
|
30°
|
|
Distance of counterattack
|
1.5-2km (varies depending on the drone model)
|
|
The corresponding time
|
3s
|
|
Endurance time
|
1h per battery, with plug - and - play battery
|
|
Charging time
|
≤3h
|
|
stand-by time
|
≥60 days
|
|
size
|
490mm*260mm*90mm
|
|
weight
|
3.9kg (including the sight)
|
|
Accessories
|
Sightings, suitcases, car seats, batteries
|
|
levels of protection
|
IP66
|
