Ⅰ. Product Presentation

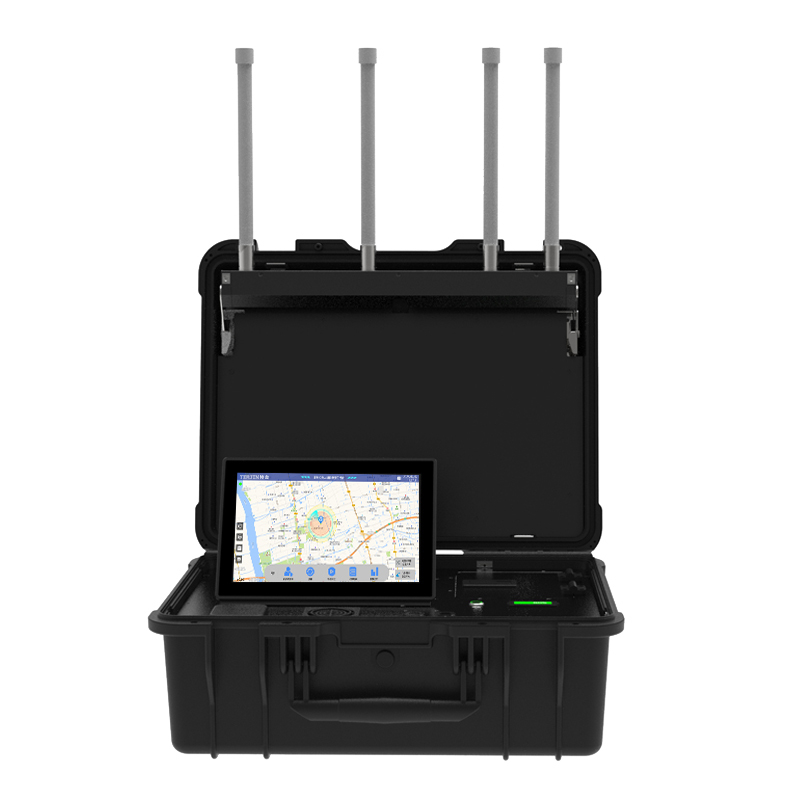

This is a portable drone monitoring platform, used for detection, identification, location and tracking of drones and pilots.This is suitable for drone monitoring in scenarios such as major events, daily security patrol, VIP secret service, critical infrastructure etc. It works offline or online, with option to connect multiple devices to cover large area. It is highly portable, easy to carry and use, ready to deploy in seconds.
Ⅱ. Components
|
Name
|
Quantity
|
Unit
|
|
Detection host
|
1
|
piece
|
|
Detection antenna
|
2
|
piece
|
|
Full band antenna
|
1
|
piece
|
Ⅲ. Functions
1. Drone Scan & ID
Instantly detects and classifies mainstream, Wi-Fi, FPV, and custom-built drones.
2. Live Flight Trace
Renders real-time drone paths directly on the GIS map.
3. Pilot Pin-Point
Continuously plots and updates the remote controller’s location.
4. Deep Data Panel
Shows drone ID, frequency, lat/lon, model, altitude, relative height, pilot lat/lon, and range to device or reference point—all in real time.
5. Unique Fingerprint
Extracts and displays each aircraft’s serial number for positive identification.
6. Friend-or-Foe Filter
Tags DJI drones as “trusted” or “threat”; white-listed aircraft trigger no alarm.
7. Instant Intrusion Alert
Audible and/or visual alarm on every unauthorized entry.
8. Map Flexibility
Runs on both online and offline maps.
9. Map Library
Supports AutoNavi, Bing, Baidu, Google, and more.
10. Historical Replay
Logs and replays past flights, pilot positions, and home points.
11. Data Search
Filters historical detections by any time window.
12. Analytics Dashboard
Graphs and stats summarize long-term detection trends.
13. Swarm Tracking
Tracks multiple drones simultaneously, color-coding each trajectory.
14. Networked Command
Connects multiple units to one back-end for unified device control and fused situational data.
Ⅲ. Product Specifications
|
Index
|
Parameter
|
Remark
|
|
Drone model that can be detected
|
Common brands of drones and some self-made FPVs and WiFi drones
|
|
|
Drone model that can be located
|
DJI Mavic,Air,Mini,FPV,Avata series
|
|
|
Frequency
|
900M,1.2G,2.4G,5.2G,5.8GHz
|
|
|
Range
|
1~10km radius
|
Varies due to environment and drone model
|
|
Altitude
|
0m~1000m
|
|
|
Drone swarm detection
|
≥5 drones
|
|
|
Detection result refresh time
|
4~6s
|
Varies due to environment and drone model
|
|
Azimuth error
|
≤1.5°(RMS)
|
|
|
Location error
|
≤10m
|
|
|
Ready to use
|
≤120s
|
|
|
Weight
|
≤18kg
|
Adaptor excluded
|
|
Size
|
(520mm*415mm*224mm)±2mm
|
Case closed
|
|
Power consumption
|
≤100W
|
|
|
External supply voltage
|
100 ~ 220V AC
|
|
|
Battery run time
|
≥4h
|
Dual batteries
|
|
Operating temperature
|
-20~65℃
|
|
|
Storage temperature
|
-40~70℃
|
|
|
Waterproof
|
IP65
|
Case closed
|
|
Screen size
|
10.1 inches
|
|
|
Brightness
|
500cd/m²
|
|
|
Resolution
|
1080P
|
1920*1200
|
