2KM full frequency portable unmanned aerial vehicle reconnaissance and attack integrated system

Ⅰ. Product Presentation

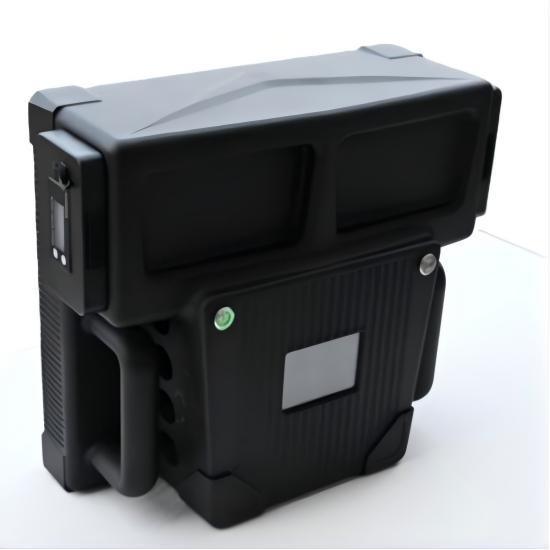

 DR500-AB portable drone detection and jamming shield is a set of individual-used jamming systems that integrates detection and early warning, target direction finding, interference, display and control, and networking functions. It is based on the principle of emitting high-intensity electromagnetic waves, acting on the flight control systems and satellite positioning receivers of various small and medium-sized civilian drones, and is a professional equipment that blocks normal communication signals to render them ineffective.

 Ⅱ. Equipment Usage

Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently through drones, posing a serious threat to national security, public safety, and personal privacy.

Ⅲ. Function Presentation

This equipment contains flight control blocking frequencies, as well as GPS/QZSS/GLONASS/Galileo and Beidou second-generation satellite positioning blocking frequencies, a total of 6 frequency bands. Through reasonable operation, the target drone can lose control, return, drive away, land, or crash.

This equipment adopts DSSS/FHSS dual-mode digital jamming source, all-solid-state microwave integrated circuit MMIC technology, and high-density SMT surface mounting technology. It has high reliability and can adapt to normal operation in severe cold and high temperature environments

Ⅳ. Product List

Ⅴ. Product Interface and Button

Equipment control: Transmitting unit button, main power button, display control touch screen Interface definition: Detection equipment power supply interface: 2-core power cable (DC29.4V 2A)

Drone detection status

Drone direction finding status and language switching

Drone jamming status

Ⅵ. Technical Specifications

Ⅶ. Equipment Features and Functions

1. By jamming the drone's remote control, data transmission, video transmission, and navigation signals, the system aims to cause the drone to lose control and force an emergency landing.

2. Full-frequency-band coverage: 400MHz-6GHz key frequency band detection, full coverage of mainstream drone models

3. Precise and efficient strike: Efficiently output interference signals, with a jamming distance of up to 2km (depending on the drone model)

4. High flexibility: The device is small and lightweight, easy to carry and operate, and is suitable for temporary and mobile deployment in a variety of situations

5. Easy to use: Humanized design, easy to operate, no need for complicated training

6. Integrated design: High integration, strong flexibility and mobility, and can be efficiently deployed to any defense field

7. Customized services: Customized intelligent solutions according to needs to provide customers with better defense effects

Ⅷ. Device Structure and Components

Portable (shield type) drone detection and jamming equipment consists of a detection antenna combination unit, a radio frequency antenna combination unit, a detection signal processing board, a radio frequency module combination unit, a control motherboard, a main body shell,a power supply component, etc.

Ⅸ. Application scenario value proposition

1. Key infrastructure protection
Provide 7 × 24-hour low altitude security protection for airports, nuclear power plants, and government locations, effectively preventing security risks caused by drone intrusion

2. Security for large-scale events
Provide mobile low altitude security for international summits, sports events, and other large-scale events, and quickly deploy to form a temporary no fly zone

3. Military tactical applications
Provide individual level anti drone capabilities for frontline deployment and border patrol of troops, effectively responding to asymmetric drone threats
