Ⅰ. Product Overview

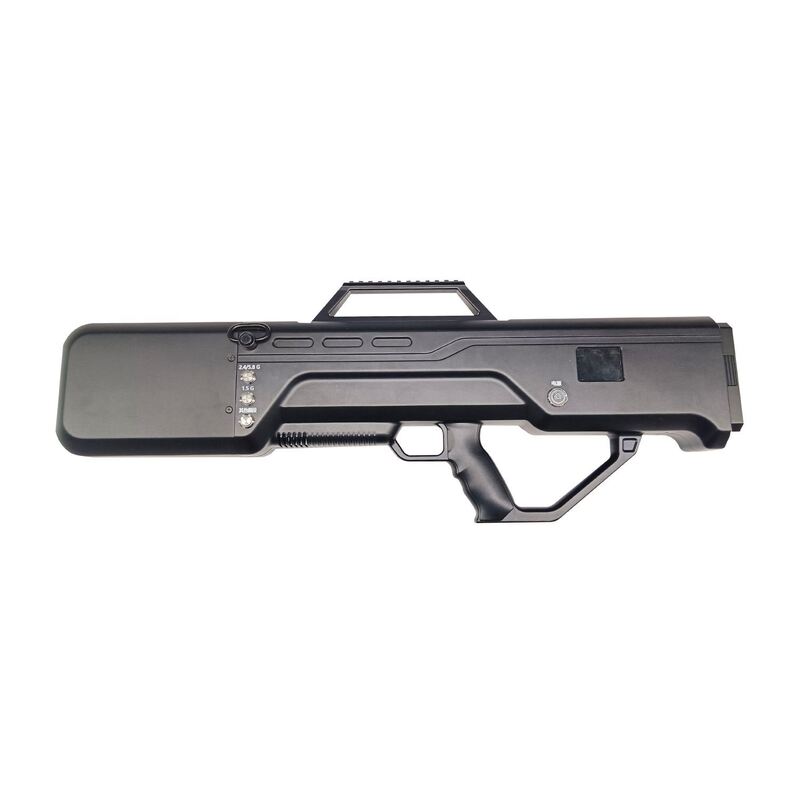

The DR300-I Falcon is a comprehensive handheld drone countermeasure system designed for single-operator missions, integratingdetection and early warning, target tracking, jamming and engagement, and display & control networkinginto one compact device. The system emits high-intensity electromagnetic waves to precisely interfere with the flight control systems and satellite positioning receivers of various small to medium-sized civilian drones, disrupting their normal communication links and forcing target drones to become ineffective. It provides reliable protection for low-altitude airspace security.
Ⅱ. Key Highlights
|
Parameter
|
Specification
|
|
Integrated Detection & Countermeasure
|
Combines detection and countermeasure functions in one unit, enabling immediate engagement upon target discovery without requiring additional detection equipment
|
|
Extended Battery Life
|
Equipped with a high-capacity battery pack, the system offers over 24 hours of standby time, meeting the demands of round-the-clock missions
|
|
Strong Expandability
|
Features a universal rail system for mounting various tactical accessories such as optical sights and high-intensity flashlights
|
|
Comprehensive Model Coverage
|
Multi-band detection and countermeasure design covers mainstream consumer drones, industrial drones, and racing drones on the market
|
|
Harsh Environment Adaptability
|
Rigorously tested in complex environments including high temperatures, extreme cold, and high altitudes, ensuring stable operation under adverse conditions
|
|
Racing Drone Specialization
|
Optimized countermeasure algorithms specifically designed for high-speed small drones such as FPV racing drones, delivering exceptional effectiveness
|
|
Simplified Operation
|
Equipped with a large high-definition screen featuring an intuitive interface for easy operation; ready for immediate use without external devices
|
|
Military-Grade Reliability
|
Aerospace aluminum construction ensures durability and robustness; supports wide temperature operation from -40℃ to +60℃, adaptable to various operational environments
|
Ⅲ. Functional Details
1. Detection & Early Warning
Continuously monitors surrounding airspace for drone signals, automatically identifies drone models and frequency bands, and triggers audible and visual alerts upon target detection
2. Target Tracking
Continuously tracks the position and trajectory of target drones, providing precise directional guidance for countermeasures
3. Jamming & Engagement
Simultaneously outputs jamming signals across multiple frequency bands to disrupt drone remote control, video transmission, and navigation links
4. Display & Control Networking
Supports networking of multiple devices for coordinated operations, enabling three-dimensional regional defense
Ⅳ. Technical Specifications
|
Parameter
|
Specification
|
|
Detection Bands
|
400-1500MHz, 2200-2500MHz, 5100-5900MHz
|
|
Detection Range
|
≥2KM (Depending on environmental conditions)
|
|
Detection Response Time
|
＜2 seconds
|
|
Countermeasure Bands
|
800MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
|
|
Expandable Bands
|
433MHz, 700MHz, 1.4GHz (Customizable)
|
|
Countermeasure Range
|
≥2KM (Depending on environmental conditions)
|
|
Standby Time
|
≥24 hours
|
|
Networking Methods
|
SIM card, eSIM
|
|
Alarm Methods
|
Audible alerts and indicator lights
|
|
Battery
|
Built-in low-temperature resistant battery
|
|
Weight
|
＜7KG
|
|
Dimensions
|
770mm × 80mm × 284mm
|
|
Display
|
LCD screen for viewing device status
|
|
Working Temperature
|
-40℃ to 60℃
|
Ⅴ. Advantages of DDS Technology:
The device employs advancedDDS (Direct Digital Synthesis)technology, which determines the frequency, phase, and amplitude of signal control through digital analysis. The system's core is aPhase Accumulator, which uses its output value as an index to look up waveform data in a waveform table, subsequently converting it into an analog signal through a Digital-to-Analog Converter (DAC).
1. Ultra-High Frequency Resolution: Enables extremely fine frequency adjustment
2. Rapid Frequency Switching: Completes frequency conversion in an extremely short time, particularly suitable for applications requiring fast frequency hopping (such as frequency-hopping communication)
3. Continuous Signal Output: Supports continuous signal output, enabling sustained target tracking
4. Arbitrary Waveform Generation: Conveniently and flexibly generates any waveform, with real-time algorithm-based adjustments according to target signal sources
Ⅵ. Application Scenarios
1. Low-altitude security for critical facilities
2. Security duty for major events
3. Mobile counter-terrorism operations in field environments
4. Border patrol and control
5. Perimeter protection for prisons
6. Airspace inspection around airport no-fly zones
